Scaling Hammers Page ...

Explore the heavy duty industrial line of Henrytools scaling hammers.

Scaling Hammers

Ideal for general chipping, casting and billet cleaning, weld flux, caulking, paint removal, rust removal and the scrape-cleaning of castings.

Advanced Airtool Design...

The following models are enhanced for use in an industrial environment:

Scaling Hammers

Henrytools scalers provide an effective method of removing coatings, corrosion and other accumulated materials.

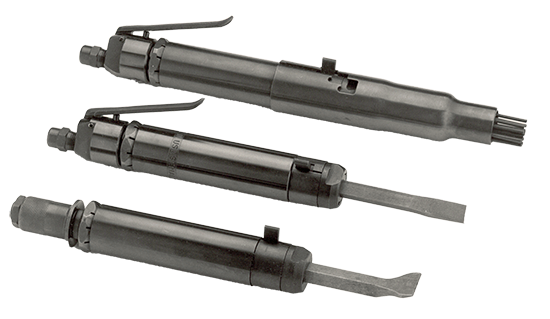

Multiple scaling hammers



N-3R Lever Scaling Hammer



Industrial Benefits:
  • The All American World standard in lever throttled industrial pneumatic scaling hammers.
  • Converts from chisel scaler to needle scaler in moments and visa versa.
  • Ideal for general chipping, casting and billet cleaning, weld flux, caulking, paint removal, rust removal and the scrape-cleaning of castings.
  • Henrytools scalers provide an effective method of removing coatings, corrosion and other accumulated materials.
  • These scalers will work on almost any surface, especially irregular surfaces that are otherwise difficult to prepare.
  • Minimum Parts, Maximum Performance.
  • All moving parts are steel, for longer tool life and low maintenance.
  • Scaling hammers are offered in both regular and heavy-duty versions for fracturing thick and hard-to-remove materials.
  • Ruggedly designed powerful scaling hammers.
  • Accepts the industry standard 1/2" (12mm) square shank chisels.

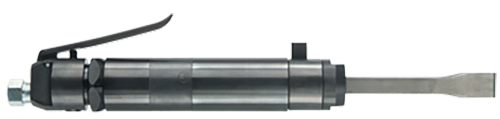

Model N-3R Scaling hammer

Model N-3R industrial scaling hammer with standard lever throttle. Accepts the industry standard 1/2" (12mm) square shank chisels.  (shown with D-200-7" narrow chisel which is sold seperately) See chisel chart below.



N-3R Scaling Hammer Specifications Chart
Model Throttle Type Scaler Type Blows Per Minute Bore and Stroke Weight Length Shank Type Inlet Size Hose Size Working Air Consumption
N-3R Lever Type Scaler 4650 1 Inch x 1.13 Inches(25.4 mm x 29.0 mm) 4.1 Lb.(1.9 Kg) 9.39 Inch238.5 mm 1/2" Sq. 3/8" 3/8" (10 mm) 20 cfm (9.4 L/s) Max



Scaling Hammer Chisels
Part Number Description View Overall Length Shank Type 1/2" Square
839050 C-200-7 Angle Chisel angle Chisel 7 1/4"

1/2" Square Shank Chisels

1/2" Square Shank Chisel pic

839051 D-200-7 1/2 Narrow Chisel Narrow Chisel 7 1/2"
839299 C-200-12 Angle Chisel Angle chisel 12"
839334 C-200-18 Angle Chisel Angle Chisel 18"
839335 D-200-18 Narrow Chisel Narrow Chisel 18"
839341 D-200-12 Narrow Chisel Narrow Chisel 12"
839467 B-200-7 Wide Chisel Wide Chisel 7"
839469 B-200-12 Wide Chisel Wide Chisel 12"
839470 2" Wide Scraper Scraper Chisel 7 1/2"
839471 3" Wide Scraper Scraper Chisel 7 1/2"



N-1R Push Type Throttle Scaling Hammer



Industrial Benefits:
  • Featuring a Push-Type throttle.
  • Made in America.
  • Accepts industry standard 1/2" (12mm) square shank chisels.
  • Ideal for general chipping, casting and billet cleaning, weld flux, caulking, paint removal, rust removal and the scrape-cleaning of castings.
  • Henrytools scalers provide an effective method of removing coatings, corrosion and other accumulated materials.
  • These scalers will work on almost any surface, especially irregular surfaces that are otherwise difficult to prepare.
  • Converts to needle scaler in seconds.



Model N-1 scaling hammer with push type throttle.

N-1R Scaling Hammer with Push Type Throttle. This Scaling hammer provides an effective method of removing coatings, corrosion and other accumulated materials.  (pictured with C-200-7 angle chisel which is sold seperately.) See chisel chart below.



scaling hammer in action



N-1R "Push Type" throttle Scaling Hammer Specifications
Model Throttle Type Scaler Type Blows Per Minute Bore and Stroke Weight Length Shank Type Inlet Size Hose Size Working Air Consumption
N-1R Push type Throttle Scaler 4650 1 Inch x 1.13 Inches(25.4 mm x 29.0 mm) 4.0 Lb.(1.8 Kg) 10.10 Inch256.5 mm 1/2" Sq. 1/4" 3/8" (10 mm) 20 cfm (9.4 L/s) Max



Scaling Hammer Chisels
Part Number Description View Overall Length Shank Type 1/2" Square
839050 C-200-7 Angle Chisel angle Chisel 7 1/4"

1/2" Square Shank Chisels

1/2" Square Shank Chisel pic

839051 D-200-7 1/2 Narrow Chisel Narrow Chisel 7 1/2"
839299 C-200-12 Angle Chisel Angle chisel 12"
839334 C-200-18 Angle Chisel Angle Chisel 18"
839335 D-200-18 Narrow Chisel Narrow Chisel 18"
839341 D-200-12 Narrow Chisel Narrow Chisel 12"
839467 B-200-7 Wide Chisel Wide Chisel 7"
839469 B-200-12 Wide Chisel Wide Chisel 12"
839470 2" Wide Scraper Scraper Chisel 7 1/2"
839471 3" Wide Scraper Scraper Chisel 7 1/2"



Model N-3RP Series Pistol Throttle Scaling Hammer



Industrial Benefits:
  • Made in America.
  • Pistol Type Handle with button throttle.
  • Converts from chisel scaler to needle scaler in moments and visa versa.
  • Ideal for general chipping, casting and billet cleaning, weld flux, caulking, paint removal, rust removal and mortar chipping.
  • Accepts industry standard 1/2" (12mm) square shank chisels.

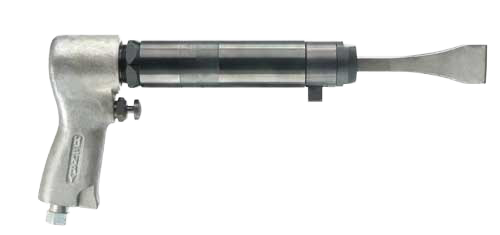

MOdel N-3RP pistol scaling hammer

Model N3RP Pistol Grip throttle type scaling hammer.

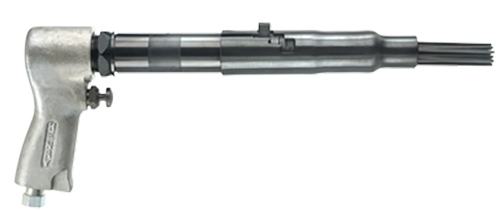

Model N-3RPN pistol needle scaling hammer

Model N-2RP Needle scaler with a Pistol type handle. Tool comes standard with 7" needles.



Model Throttle Type Scaler Type Blows Per Minute Bore and Stroke Weight Length Shank Type Inlet Size Hose Size Working Air Consumption
N-3RP Pistol Scaler 4650 1 Inch x 1.13 Inches(25.4 mm x 29.0 mm) 4.2 Lb.1.9 Kg) 10.05 Inch255.3 mm 1/2" Sq. 3/8" 3/8" (10 mm) 20 cfm (9.4 L/s) Max
N-2RP Pistol Needle Scaler 4650 1 Inch x 1.13 Inches(25.4 mm x 29.0 mm) 4.2 Lb.1.9 Kg) 10.05 Inch255.3 mm 1/2" Sq. 3/8" 3/8" (10 mm) 20 cfm (9.4 L/s) Max



Scaling Hammer Chisels
Part Number Description View Overall Length Shank Type 1/2" Square
839050 C-200-7 Angle Chisel angle Chisel 7 1/4"

1/2" Square Shank Chisels

1/2" Square Shank Chisel pic

839051 D-200-7 1/2 Narrow Chisel Narrow Chisel 7 1/2"
839299 C-200-12 Angle Chisel Angle chisel 12"
839334 C-200-18 Angle Chisel Angle Chisel 18"
839335 D-200-18 Narrow Chisel Narrow Chisel 18"
839341 D-200-12 Narrow Chisel Narrow Chisel 12"
839467 B-200-7 Wide Chisel Wide Chisel 7"
839469 B-200-12 Wide Chisel Wide Chisel 12"
839470 2" Wide Scraper Scraper Chisel 7 1/2"
839471 3" Wide Scraper Scraper Chisel 7 1/2"



Needle Type Scaling Hammers



Industrial Benefits:
  • The world standard  in American made industrial needle scaling hammers.
  • Quick release needle attachment converts needle scaler to a standard chisel scaler in seconds.
  • Accepts the industry standard 1/2" (12mm) square shank chisels.
  • The tool nose that holds the chisel can be replaced when worn out.
  • Front exhaust keeps work area clean.
  • Three-position "J" slot on needle scalers allow compensation for needle wear.
  • 7" Needles are standard.
  •

    Model N-2R needle scaling hammer

    Model N-2R needle scaler with standard lever throttle.



    Model n-4R Needle scaling hammer with push type throttle

    Model N-4R needle scaler features a Push-Type Throttle.



    Model N-3RPN Pistol type scaling hammer with needle attachment

    Model N-2RP Needle scaler with a Pistol type handle.



Needle Scaling Hammers Specifications Chart
Model Throttle Type Scaler Type Blows Per Minute Bore and Stroke Weight Length Shank Type Inlet Size Hose Size Working Air Consumption
N-2R Lever Type Needle Scaler 4650 1 Inch x 1.13 Inches(25.4 mm x 29.0 mm) 6.1 Lb.(2.7 Kg) 15.35 Inch(389.9 mm) 1/2" Sq. 3/8" 3/8" (10 mm) 20 cfm (9.4 L/s) Max
N-4R Push type Throttle Needle Scaler 4650 1 Inch x 1.13 Inches(25.4 mm x 29.0 mm) 5.9 Lb.(2.6 Kg) 16.07 Inch(408.2 mm) 1/2" Sq. 1/4" 3/8" (10 mm) 20 cfm (9.4 L/s) Max
N-2RP Pistol Throttle Type Needle Scaler 4650 1 Inch x 1.13 Inches(25.4 mm x 29.0 mm) 6.1 Lb.(2.7 Kg) 15.35 Inch(389.9 mm) 1/2" Sq. 3/8" 3/8" (10 mm) 20 cfm (9.4 L/s) Max



Scaling Hammer Chisels
Part Number Description View Overall Length Shank Type 1/2" Square
839050 C-200-7 Angle Chisel angle Chisel 7 1/4"

1/2" Square Shank Chisels

1/2" Square Shank Chisel pic

839051 D-200-7 1/2 Narrow Chisel Narrow Chisel 7 1/2"
839299 C-200-12 Angle Chisel Angle chisel 12"
839334 C-200-18 Angle Chisel Angle Chisel 18"
839335 D-200-18 Narrow Chisel Narrow Chisel 18"
839341 D-200-12 Narrow Chisel Narrow Chisel 12"
839467 B-200-7 Wide Chisel Wide Chisel 7"
839469 B-200-12 Wide Chisel Wide Chisel 12"
839470 2" Wide Scraper Scraper Chisel 7 1/2"
839471 3" Wide Scraper Scraper Chisel 7 1/2"



Model N-10 Floor Scraper/Scaling Hammer



Industrial Benefits:
  • A high quality industrial Floor Scraper that's made in America.
  • The extended reach of this tool is intended for chipping in previously inaccessible areas.
  • Multiple applications include concrete reduction, removal of ceramic tiles, removal of thin set mortars, ice, crack chasing, chemical spills, metal slag and tank cleaning.
  • Design reduces the risk of back injury.

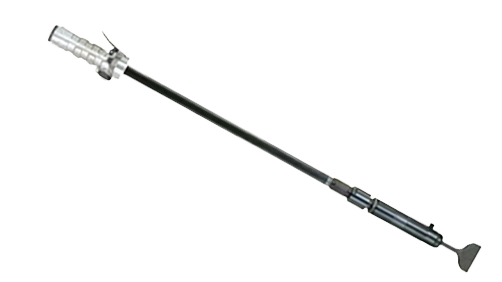

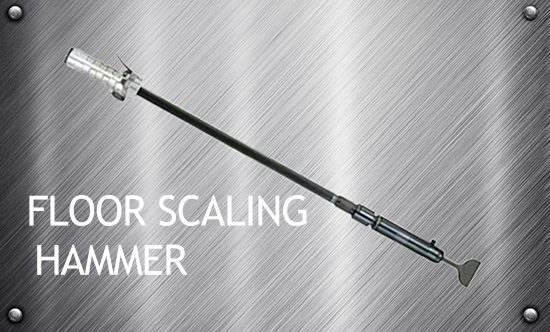

Henrytools Floor Scaling hammer

Model N-10 Industrial Floor scraper with a comfortable overall 30.68" length.



1/2" square chisel

 Accepts the industry standard 1/2" (12mm) square shank chisels.



N-10 Floor Scaling Hammer Specifications
Model Throttle Type Scaler Type Blows Per Minute Bore and Stroke Weight Length Shank Type Inlet Size Hose Size Working Air Consumption
N-10 Lever Floor Scraper 4650 1 Inch x 1.13 Inches(25.4 mm x 29.0 mm)   30.68 Inch779.3 mm 1/2" Sq. 1/2: 3/8" (10 mm) 20 cfm (9.4 L/s) Max



Scaling Hammer Chisels
Part Number Description View Overall Length Shank Type 1/2" Square
839050 C-200-7 Angle Chisel angle Chisel 7 1/4"

1/2" Square Shank Chisels

1/2" Square Shank Chisel pic

839051 D-200-7 1/2 Narrow Chisel Narrow Chisel 7 1/2"
839299 C-200-12 Angle Chisel Angle chisel 12"
839334 C-200-18 Angle Chisel Angle Chisel 18"
839335 D-200-18 Narrow Chisel Narrow Chisel 18"
839341 D-200-12 Narrow Chisel Narrow Chisel 12"
839467 B-200-7 Wide Chisel Wide Chisel 7"
839469 B-200-12 Wide Chisel Wide Chisel 12"
839470 2" Wide Scraper Scraper Chisel 7 1/2"
839471 3" Wide Scraper Scraper Chisel 7 1/2"
