Air Rammers Page...

Henrytools Horizontal Air Rammers are suitable in various applications for foundry purposes, as well as construction-related areas. Packing stone and packing sand, etc., and other industrial tasks.

Air Rammers

Explore all of the Henrytool rammers that an be used in various applications for foundry purposes and construction.

Advanced Airtool Design...

The following models are enhanced for use in an industrial environment:

Air Rammers

BENCH & FLOOR RAMMERS



Bench and Floor Rammers intoduction to page pic





1300-OB Air Sand Rammer



Industrial Benefits:
  • Made in America.
  • Model 1300-OB Rammer features a world standard industrial 2" stroke.
  • 2500 BPM (blows per minute)
  • A Super duty sand rammer that provides fast, powerful blows for ramming small, medium and large tasks on the bench or the floor.
  • Intended for ramming of casting sand in cylinders, core boxes, large molds and casting pits.
  • Applications: This rammer can be used for standard tamping work. Commonly used in tamping of filling sand. This rammer can also be used for common stamping of refractory furnace linings.
  • Ships standard with a 2 3/8" rubber butt.
  • Specify which size rubber butt you'd  prefer when ordering. (See Chart Below)

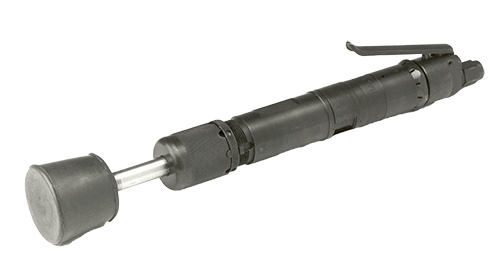

Henrytools 1300-OB Bench Air Rammer

Henrytools Model 1300-OB Bench-Type Air rammer shown with standard 2- 3/8"rubber butt.



1300-OB Bench Rammer Specifications
Model Rammer Type Length & Diameter Weight Diameter Bore Stroke Blows per Minute Inlet Size Working Air Consumption
1300-OB Rammer 16-1/2" 1.7" 5 lbs. 1.7"
43 mm
1" 2"
51 mm
2500 3/8" 20 cfm
(9.4 L/S)
  • * See Rammer Butts and Peins Chart below.
Rammer Butts and Peins Chart
Part Number Description View
832924 2 3/8" Diameter Steel Butt
832925 3" Diameter Steel Butt Steel Pein For Rammers
829556-AR 1" x 2 1/8" Aluminum/Rubber Pein Aluminum / rubber Butt
829557-AR 3/4" x 2 3/8" Aluminum/Rubber Pein Aluminum / rubber Butt
829558 2 3/8" Diameter Rubber Butt Rubber Butt for air Rammers
829558-AR 2 3/8" Diameter Aluminum/Rubber Butt Aluminum / rubber Butt
829559 3" Diameter Rubber Butt Rubber Butt for air Rammers
829559-AR 3" Diameter Aluminum/Rubber Butt Aluminum / rubber Butt





1320 Series Bench Rammers



Industrial Benefits:
  • Made in America.
  • Features a 2.5" stroke for standard bench rammer power.
  • 1600 BPM (blows per minute)
  • Featuring a hard hitting larger size, light weight and long throttle lever.
  • Great for heavy tamping, ramming fire clay and ideal for furnace work.
  • Its unique "sand wiper" seal excludes dirt and grit from inside the tool for reduced wear and long life.
  • Available with different size butts.
  • Adjustable packing gland maintains maximum power with low maintenance.
  • Easy start & stop lever throttle.

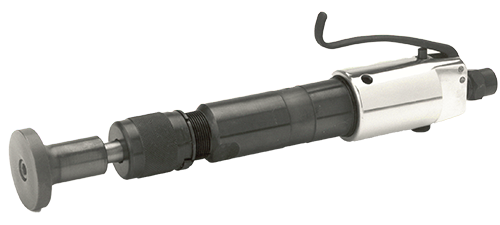

Henrytools 1320-2BA Bench Air Rammer

Henrytools Model 1320-2BA Rammer. Hard-hitting industrial rammer shown with steel butt .



Model Rammer Type Length Diameter Weight Bore Stroke Blows per Minute Working Air Consumption Inlet Size
1320-2BA Lever type rammer 17.1 Inches(435 mm) 2.3 Inches(58 mm) 7.6 Lb.(3.4 Kg.) 1.0 Inch 2.5" 1600 20 cfm(9.4 L/S) 1/2"

* See Rammer Butts and Peins Chart below.

Rammer Butts and Peins Chart
Part Number Description View
832924 2 3/8" Diameter Steel Butt Steel Pein For Rammers
832925 3" Diameter Steel Butt Steel Pein For Rammers
829556-AR 1" x 2 1/8" Aluminum/Rubber Pein Aluminum / rubber Butt
829557-AR 3/4" x 2 3/8" Aluminum/Rubber Pein Aluminum / rubber Butt
829558 2 3/8" Diameter Rubber Butt Rubber Butt for air Rammers
829558-AR 2 3/8" Diameter Aluminum/Rubber Butt Aluminum / rubber Butt
829559 3" Diameter Rubber Butt Rubber Butt for air Rammers
829559-AR 3" Diameter Aluminum/Rubber Butt Aluminum / rubber Butt



1320-2BF Floor Rammer



Industrial Benefits:
  • Made in America.
  • The Henrytools 1320 Series Floor rammers are the world american standard.
  • An extended pipe & throttle turns the 1320-2BA into an awsome industrial Floor rammer.
  • Features a 2.5" stroke for standard rammer power.
  • Powerful yet rugged lightweight construction.
  • This unit is easily held from a standing position while compacting very large molds at floor level.
  • Optional front end butts.... Ideal for compacting sand in molds that cannot be accessed with a bench style rammer.
  • Available with different sized butts. (See Butts and Pein Chart below)



Henrytools 1320-2BF Floor air rammer

Henrytools Model 1320-2BF Floor Air Rammer shown with rubber butt.



1320-2BF Floor Rammer Specifications
Model Rammer Type Length Diameter Weight Diameter Stroke Blows per Minute Working Air Consumption
1320-2BF Floor type rammer 30.7 Inches
(779 mm) approx
1.88 Inches(48 mm) 7.6 Lb.(3.4 Kg.) 2.3 Inches(58 mm) 2.5 inches 1600 20 cfm(9.4 L/S)

* See Rammer Butts and Peins Chart below.



Rammer Butts and Peins Chart
Part Number Description View
832924 2 3/8" Diameter Steel Butt Steel Pein For Rammers
832925 3" Diameter Steel Butt Steel Pein For Rammers
829556-AR 1" x 2 1/8" Aluminum/Rubber Pein Aluminum / rubber Butt
829557-AR 3/4" x 2 3/8" Aluminum/Rubber Pein Aluminum / rubber Butt
829558 2 3/8" Diameter Rubber Butt Rubber Butt for air Rammers
829558-AR 2 3/8" Diameter Aluminum/Rubber Butt Aluminum / rubber Butt
829559 3" Diameter Rubber Butt Rubber Butt for air Rammers
829559-AR 3" Diameter Aluminum/Rubber Butt Aluminum / rubber Butt



1350 Series Bench Rammers



 Industrial Benefits:
  • Made in America.
  • The Henrytools Model 1350-2BA bench rammer is ideal for use as a heavy hitting compactor.
  • 1240 BPM (blows per minute)
  • Featuring a 4" Stroke.
  • This rammer is used when you need more compacting force featuring a 4" stroke.
  • Great for heavy tamping, ramming fire clay and ideal for furnace
    work.
  • Powerful yet rugged lightweight construction.
  • Also featuring a long throttle lever allowing this unit to be used on small modeled workpieces that are set up waist high.
  • Its unique "sand wiper" seal excludes dirt and grit from inside the tool for reduced wear and longer tool life.

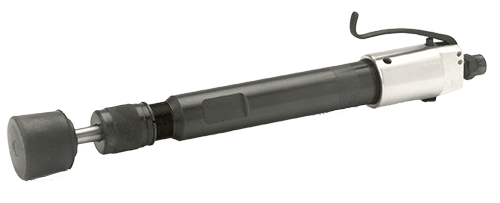

Henrytools model 1350-2BA Bench Air Rammer

Model 1350-2BA Bench rammer features a very hard hitting 4" stroke.



1350-2BA Bench Rammer Specifications
Model Rammer Type Length Diameter Weight Diameter Bore Stroke Blows per Minute Working Air Consumption
1350-2A Bench rammer 22.2 Inches
(564 mm)
2.3 Inches(58 mm) 10.7 Lb.
(4.8 Kg.)
2.3 Inches(58 mm) 1" 4" 1240 20 cfm(9.4 L/S)
  • * See Rammer Butts and Peins Chart below.
Rammer Butts and Peins Chart
Part Number Description View
832924 2 3/8" Diameter Steel Butt Steel Pein For Rammers
832925 3" Diameter Steel Butt Steel Pein For Rammers
829556-AR 1" x 2 1/8" Aluminum/Rubber Pein Aluminum / rubber Butt
829557-AR 3/4" x 2 3/8" Aluminum/Rubber Pein Aluminum / rubber Butt
829558 2 3/8" Diameter Rubber Butt Rubber Butt for air Rammers
829558-AR 2 3/8" Diameter Aluminum/Rubber Butt Aluminum / rubber Butt
829559 3" Diameter Rubber Butt Rubber Butt for air Rammers
829559-AR 3" Diameter Aluminum/Rubber Butt Aluminum / rubber Butt



1350 Series Floor Rammers



Industrial Benefits:
  • Made in America.
  • 1240 BPM (blows per minute)
  • Featuring a 4" Stroke.
  • Model 1350-2BF Floor Rammer ideal for use when you need more compacting force featuring a hard hitting 4" stroke.
  • 1350 Series rammer is a very hard hitting industrial floor rammer.
  • Powerful yet rugged lightweight construction.
  • This unit is easily held from a standing position while compacting very large molds at floor level.
  • Optional front end butts... Ideal for compacting sand in molds that cannot be accessed with a traditional bench style rammer.

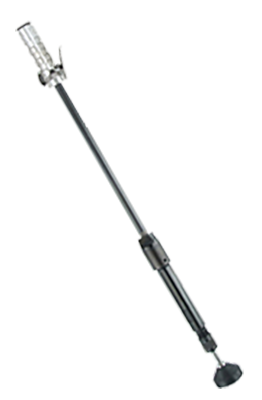

Henrytools model 1350-2BF Floor air rammer

Model 1350-2BF Floor rammer features a very hard hitting 4" stroke. (Pictured with 3" rubber butt.)



1350-2BF Floor Rammer Specifications Chart
Model Rammer Type Length Diameter Weight Stroke Blows per Minute Working Air Consumption
1350-2BF Rammer 61 Inches(1549 mm) 2.3 Inches(58 mm) 14.3 Lb.(6.5 Kg.) 4" 1240 20 cfm(9.4 L/S)
  • * See Rammer Butts and Peins Chart below.
Rammer Butts and Peins Chart
Part Number Description View
832924 2 3/8" Diameter Steel Butt Steel Pein For Rammers
832925 3" Diameter Steel Butt Steel Pein For Rammers
829556-AR 1" x 2 1/8" Aluminum/Rubber Pein Aluminum / rubber Butt
829557-AR 3/4" x 2 3/8" Aluminum/Rubber Pein Aluminum / rubber Butt
829558 2 3/8" Diameter Rubber Butt Rubber Butt for air Rammers
829558-AR 2 3/8" Diameter Aluminum/Rubber Butt Aluminum / rubber Butt
829559 3" Diameter Rubber Butt Rubber Butt for air Rammers
829559-AR 3" Diameter Aluminum/Rubber Butt Aluminum / rubber Butt



1380-2BA Bench Rammer "The Beast"



Industrial Benefits:
  • Made in America.
  • The Henrytools "The Beast" 1380 Series bench rammer is the ultimate hardcore rammer for the industrial environment.
  • 700 BPM (blows per minute)
  • Time tested valve design.
  • Front end seal excludes dirt and grit.
  • Round piston rod and a 3"(76mm) butt is included standard.
  • Optional front end butts available.
  • This unit features a Super-Heavy stroke, and two times the weight.
  • Double the BPM of a standard bench model
  • The Model 1380-2BF Bench Rammer is ideal for use when you need the ultimate rammer with more compacting force featuring a Super-Hard hitting 4" stroke.
  • Ideal for compressing molds and peining operations.
  • This bench rammer can also be used in medium-light construction compaction.
  • Powerful and super rugged construction.
  • Optional front end butts.... Ideal for compacting sand in molds. (See Chart below)



Henrytools Model 1380-2BA Bench Air Rammer with 4" stroke

1380-2BA Bench Rammer "The Beast" with an Extra large 1.250" internal bore and a 4" stroke. The hardest hitting american industrial rammer in the world. (Your choice of rubber butt or pein )(See chart below)



1380-2BF Bench Rammer Specifications Chart
Model Rammer Type Length Diameter Weight Stroke Bore Blows per Minute Working Air Consumption
1380-2BA Rammer 24 Inches(609 mm) 2.5 Inches(63 mm) 13 Lb.(5.9 Kg.) 4" 1.250" 700 20 cfm(9.4 L/S)

* See Rammer Butts and Peins Chart below.

Rammer Butts and Peins Chart
Part Number Description View
832924 2 3/8" Diameter Steel Butt Steel Pein For Rammers
832925 3" Diameter Steel Butt Steel Pein For Rammers
829556-AR 1" x 2 1/8" Aluminum/Rubber Pein Aluminum / rubber Butt
829557-AR 3/4" x 2 3/8" Aluminum/Rubber Pein Aluminum / rubber Butt
829558 2 3/8" Diameter Rubber Butt Rubber Butt for air Rammers
829558-AR 2 3/8" Diameter Aluminum/Rubber Butt Aluminum / rubber Butt
829559 3" Diameter Rubber Butt Rubber Butt for air Rammers
829559-AR 3" Diameter Aluminum/Rubber Butt Aluminum / rubber Butt





1380-2BF Floor Rammer "The Beast"



Industrial Benefits:
  • Made in America.
  • The Henrytools 1380 Series floor rammer is the"ultimate" hardcore floor type rammer.
  • 700 BPM (blows per minute)
  • A "Beastly" American made tool with an extra large 1.250" internal bore and a 4" stroke.
  • A time tested valve design.
  • Front end seal excludes dirt and grit.
  • Round piston rod and a 3"(76mm) butt is included standard.
  • Optional front end butts available.
  • This unit is held from a standing position while compacting very large molds at floor level.
  • The Model 1380-2BF Floor Rammer is ideal for use when you need the ultimate rammer with more compacting force featuring a 4" stroke.
  • Ideal for compressing molds and peining operations. This floor rammer can also be used in light construction compaction.
  • Powerful and super rugged construction.
  • Optional front end butts.... Ideal for compacting sand in molds that cannot be accessed with a bench style rammer.



Henrytools Model 1380-2BF Floor air rammer

Model 1380-2BF "The Beast" Floor rammer featuring  the ultimate "Super" hard hitting 4" stroke. (Pictured with 3" rubber butt.)



1380-2BF Floor Rammer Specifications Chart
Model Rammer Type Length Diameter Weight Stroke Bore Blows per Minute Inlet Size Working Air Consumption
1380-2BF Floor Rammer 63 Inches(1600 mm) 2.5 Inches(63 mm) 17 Lb.(7.7 Kg.) 4" 1.250" 700 1/2 " 20 cfm(9.4 L/S)



Rammer Butts and Peins Chart
Part Number Description View
832924 2 3/8" Diameter Steel Butt Steel Pein For Rammers
832925 3" Diameter Steel Butt Steel Pein For Rammers
829556-AR 1" x 2 1/8" Aluminum/Rubber Pein Aluminum / rubber Butt
829557-AR 3/4" x 2 3/8" Aluminum/Rubber Pein Aluminum / rubber Butt
829558 2 3/8" Diameter Rubber Butt Rubber Butt for air Rammers
829558-AR 2 3/8" Diameter Aluminum/Rubber Butt Aluminum / rubber Butt
829559 3" Diameter Rubber Butt Rubber Butt for air Rammers
829559-AR 3" Diameter Aluminum/Rubber Butt Aluminum / rubber Butt
