Angle Grinders Page...

Explore our full line of  all the new angle grinders for the industrial environment. .

Angle Grinders made in America

The Henrytools angle grinder lineup provides all the industrial grinding power for the most demanding jobs.  Ultimate grinding and surface prep for the finest line of angle grinders for American industry.

Advanced Airtool Design....

The following angle grinder models are enhanced for use in an industrial environment:

Right Angle Grinders

Perfect for extremely demanding industrial applications.

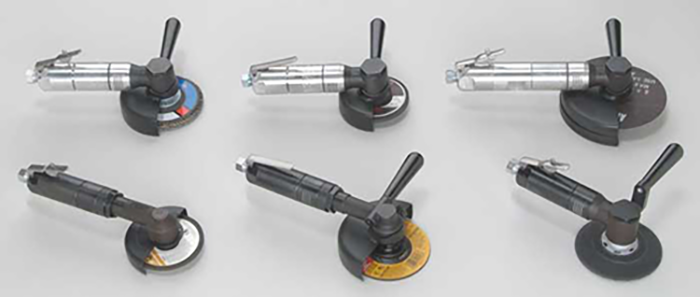

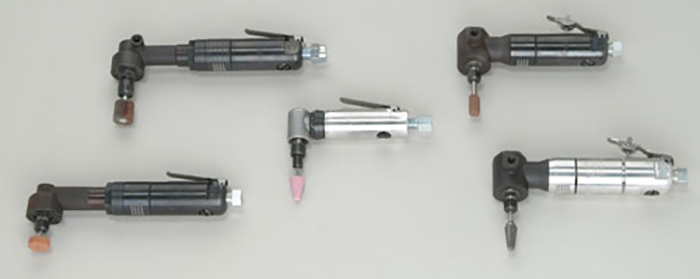

45RA Series multiple picscollet spindle angle grinders multiple pics425RA Extended Die Grinder Multi tool pic

12RA Series Angle Grinder



Industrial Benefits:
  • Small compact tool design reaches remote areas.
  • Front exhaust. Heavy-duty 3 piece collet is available with 1/4" or 1/8" insert.
  • Spiral-bevel gears provide smooth operation and long life.
  • Lightweight aluminum housing.
  • Choice of lever or lockout lever throttle.
  • Small Right Angle Head for Limited Space Sanding and Grinding.
  • Applications Include: Weld preparation and smoothing; rust removal; deburring and blending of steel, cast iron, and aluminum.
  • The model 12RA Right angle air grinder has a smaller more compact design for light grinding applications.

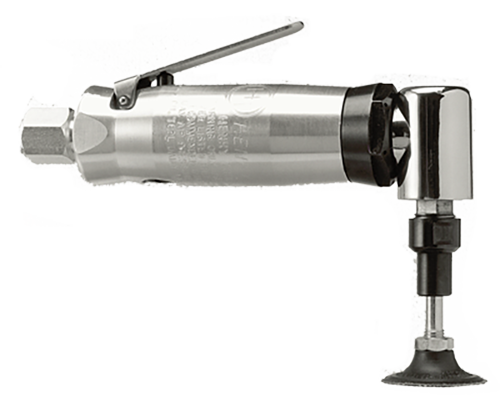

12RA Angle Grinder

Model 12RA Angle Air Grinder features a FRONT exhaust and pictured with a standard lever throttle.  This grinder is very maneuverable for polishing and surface contouring.

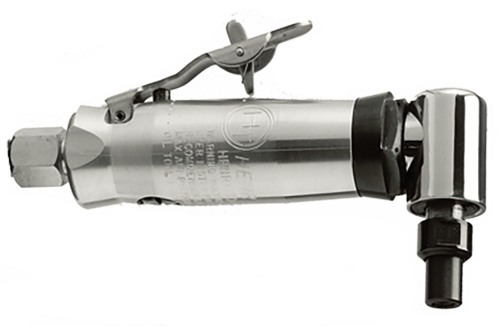

12RA Angle grinder with safety lock lever

Model 12RAK Angle Air Grinder featuring a safety lockout lever throttle.



≡

12RA Series Angle Grinder Specifications

12RA Series Angle Grinder Specifications
Model Throttle Type Exhaust Direction Speed Collet Size Angle Head Height Length Case Diameter Weight Rated Power
12RA Standard Lever Front 18,000 or20,000R.P.M. 1/4" or 1/8" collet insert (1/4" is standard) 2.953"75mm 5.600"143mm 1.500"38.1mm .94 lbs.42kg 0.3 H.P.
12RAK Safety Lockout Lever Front 18,000 or20,000R.P.M. 1/4" or 1/8" collet insert (1/4" is standard) 2.953"75mm 5.600"143mm 1.500"38.1mm .94 lbs.42kg 0.3 H.P.
  • Specify either 1/4" or 1/8" collet insert when ordering.

Features and Applications

12RA Angle Grinder features:

  • Small compact tool design reaches remote areas.
  • Front exhaust.
  • Heavy-duty 3 piece collet is available with 1/4" or 1/8" insert.
  • Spiral-bevel gears provide smooth operation and long life.
  • Lightweight aluminum housing.
  • Choice of lever or lockout lever throttle.
  • Small Right Angle Head for Limited Space Sanding and Grinding.

Applications:

Weld preparation and smoothing; rust removal; deburring and blending of steel, cast iron, and aluminum. The model 12RA Right angle air grinder has a smaller more compact design for light grinding applications.

Standard Equipment: Choice of (1) 1/4" or 1/8" collet insert, wrenches, screen bushing.

Ships with the following:
Airtool & Operating Instructions and Service Manual
2 Wrenches (sizes based on options)

Capacity:

Recommended working air pressure: 90 p.s.i.
Working Air Consumption: 19 cfm
Inlet size: 1/4"
Hose Size Recommended: 1/4"



4401RA Series Right Angle Air Grinder and Sander



Industrial Benefits:
  • An industrial right angle grinder ready to tackle your toughest grinding surface preparation needs.
  • (0.9 H.P) and a SIDE exhaust
  • One piece case design for a more comfortable grip. Geared to run at (9000 to 11000 R.P.M.) (11000RPM is standard). Taller gears provide more power at a lower RPM.
  • Tool is available with either a 3/8-24 thd spindle or 5/8-11.   An internal  1/4" collet spindle is also available. (See the specifications chart)
  • A stainless steel right-angle head that resists corrosion.
  • Spiral-beveled gears provide smooth operation and long tool life.
  • Removable side dead handle.
  • Aluminum or Steel case.
  • Adjustable exhaust direction side exhaust.
  • Choice of lever or lockout lever throttle.
  • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4" or 5" Guard.
  • Applications: cutting, weld preparation and smoothing; rust removal; deburring and blending of steel, cast iron, and aluminum.



4401RA Angle Grinder

Model 4401RASK Angle Air Grinder with safety lockout lever and  4" guard.. Featuring a one piece comfortable grip case. (11000RPM Standard speed).

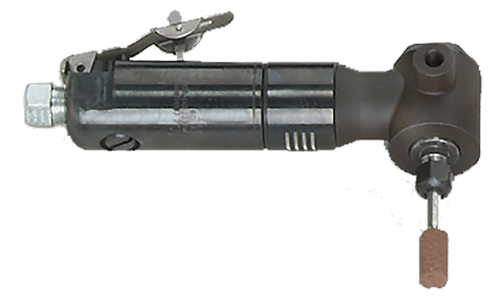

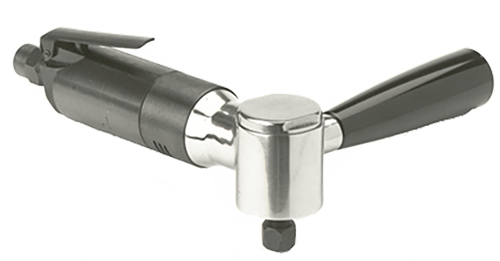

4401RASC angle grinder with collet spindle

Model 4401RACSK steel cased angle grinder shown with 1/4"collet and carbide burr installed.  (0.9 H.P) and a SIDE exhaust, (11000RPM Standard speed). (with Safety lockout lever throttle.)(sample) (Side Handle removed for clarity)



≡

4401RA Series Grinder Specifications

4401RA Serie Angle Grinder Specifications
Model Throttle Lever Type Case Material Exhaust Direction Speed Rated Power Weight Spindle Type Length Housing Diameter Inlet Size
4401RA Lever Alum Side 9000to 11000R.P.M. 0.9 H.P.(675 W) 2.8 Lbs(1.3 Kg) 3/8-24 x 0.58 Inch (15mm) 7.4_Inches(188 mm) 1.6 Inches(41 mm) 3/8"
4401RAZ Lever Alum Side 9000to 11000R.P.M. 0.9 H.P.(675 W) 2.8 Lbs(1.3 Kg) 5/8-11 x 0.98 Inch (25mm) 7.4 Inches(188 mm) 1.6 Inches(41 mm) 3/8"
4401RAC Lever Alum Side 9000to 11000R.P.M. 0.9 H.P.(675 W) 2.8 Lbs(1.3 Kg) 1/4 Inch Built-In Collet 7.4 Inches(188 mm) 1.6 Inches(41 mm) 3/8"
4401RASK Safety Lockout Lever Steel Side 9000to 11000R.P.M. 0.9 H.P.(675 W) 3.5 Lbs(1.6 Kg) 3/8-24 x 0.58 Inch (15mm) 7.4 Inches(188 mm) 1.6 Inches(41 mm) 3/8"
  • Specify Steel or Aluminum case when ordering.

Features and Applications

4401RA Angle Air Grinder features:

  • The Henrytools 4401RA Series angle air grinders feature a one piece case design for a more comfortable grip.
  • Geared to run at (9000 to 11000 R.P.M.) (11000RPM is standard).
  • Taller gears provide more power at a lower RPM.
  • An industrial right angle grinder ready to tackle your toughest grinding surface preparation needs.
  • Tool is available with either a 3/8-24 thd spindle or 5/8-11. See the chart below for the model you'd like to order.
    The 4401RA series grinders are up to the task.
  • A stainless steel right-angle head that resists corrosion and is extra strong.
  • Spiral-beveled gears provide smooth operation and long tool life.
  • Removable side dead handle.
  • Aluminum or Steel case.
  • Adjustable exhaust direction side exhaust.
  • Choice of lever or lockout lever throttle.)
  • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4" or 5" Guard.
  • Applications: cutting, weld preparation and smoothing; rust removal; deburring and blending of steel, cast iron, and aluminum.



Capacity:


Recommended working air pressure: 90 p.s.i.
Working Air Consumption: 25 CFM (11.8 L/S)

4402RA Series Right Angle Air Grinder and Sander



Industrial Benefits:
  • Applications: cutting, weld preparation and smoothing; rust removal; deburring and blending of steel, cast iron, and aluminum.
  • (0.9 H.P) and a SIDE exhaust,
  • One piece case design for a more comfortable grip.
  • Geared to run at (13500 R.P.M.)
  • Tool is available with either a 3/8-24 thd spindle or 5/8-11. An internal 1/4" l collet spindle is also available. (See the specifications chart)
  • A stainless steel right-angle head that resists corrosion.
  • Spiral-beveled gears provide smooth operation and long tool life.
  • Removable side dead handle.
  • Aluminum or Steel case.
  • Adjustable exhaust direction side exhaust.
  • Choice of lever or lockout lever throttle.
  • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4" or 5" Guard.

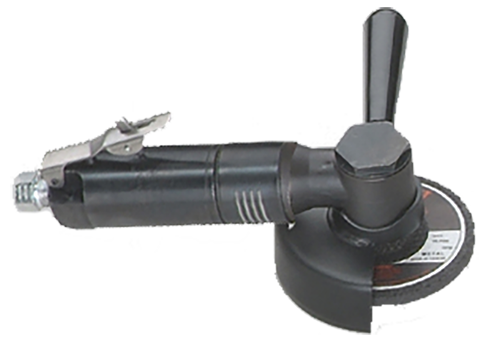

4402RAS Angle grinder

Model 4402RASK Angle Air Grinder with safety lockout lever and 4" guard.. Featuring a "one-piece case" design. (13500 RPM Standard speed). (sample)



4402RASC Angle Grinder with collet spindle

Model 4402RACSK steel cased angle grinde (0.9 H.P) and a SIDE exhaust. This model features a  built-in 1/4"collet. This tool is suitable for use with carbide burrs. (13500 RPM Standard speed). (with Safety lockout lever throttle.)



≡

4402RA Series Angle Grinder Specifications

4402RA Series Angle Grinder Specifications
Model Throttle Lever Type Case Material Exhaust Direction Speed Rated Power Weight Spindle Type Length Housing Diameter Inlet Size
4402RA Lever Alum Side 13500R.P.M. 0.9 H.P.(675 W) 2.8 Lbs(1.3 Kg) 3/8-24 x 0.58 Inch (15mm) 7.4_Inches(188 mm) 1.6 Inches(41 mm) 3/8"
4402RAZ Lever Alum Side 13500R.P.M. 0.9 H.P.(675 W) 2.8 Lbs(1.3 Kg) 5/8-11 x 0.98 Inch (25mm) 7.4 Inches(188 mm) 1.6 Inches(41 mm) 3/8"
4402RAC Lever Alum Side 13500R.P.M. 0.9 H.P.(675 W) 2.8 Lbs(1.3 Kg) 1/4 Inch Built-In Collet 7.4 Inches(188 mm) 1.6 Inches(41 mm) 3/8"
4402RASK Safety Lockout Lever Steel Side 13500R.P.M. 0.9 H.P.(675 W) 3.5 Lbs(1.6 Kg) 3/8-24 x 0.58 Inch (15mm) 7.4 Inches(188 mm) 1.6 Inches(41 mm) 3/8"
  • Capacity:

  • Recommended working air pressure: 90 p.s.i.
    Working Air Consumption: 25 CFM (11.8 L/S)

Features and Applications

Industrial Benefits:

  • Applications: cutting, weld preparation and smoothing; rust removal; deburring and blending of steel, cast iron, and aluminum.
  • One piece case design for a more comfortable grip.
  • Geared to run at (13500 R.P.M.)
  • Tool is available with either a 3/8-24 thd spindle or 5/8-11. An internal 1/4" l collet spindle is also available. (See the specifications chart)
  • A stainless steel right-angle head that resists corrosion.
  • Spiral-beveled gears provide smooth operation and long tool life.
  • Removable side dead handle.
  • Aluminum or Steel case.
  • Adjustable exhaust direction side exhaust.
  • Choice of lever or lockout lever throttle.
  • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4" or 5" Guard.

44RA Series Right Angle Grinders



    Industrial Benefits:



  • Henrytools traditional 44RA series grinder with a "THICK" two-piece case design for tool operators with larger hands.
  • Two piece design also provides a platform for easier tool maintenance.
  • Geared to run at 11000RPM standard.
  • Taller gears provide more power at a lower RPM.
  • An industrial right angle grinder grinder ready to tackle your toughest grinding surface preparation needs.
  • Features a stainless steel right-angle head that resists corrosion and is extra strong.
  • Spiral-beveled gears provide smooth operation and long tool life.
  • Removable side dead handle.
  • Aluminum or Steel case.
  • Adjustable exhaust direction SIDE  exhaust.
  • Choice of lever or safety lockout lever throttle to avoid accidental startups.)
  • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4", 5" or 6" Wheel Guard.

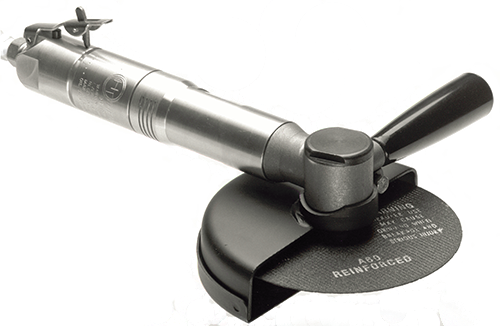

44RA Angle Grinder with 4" guard

Model 44RA right angle grinder with a powerful (0.9 H.P) motor and runs at 11,000 RPM standard free speed. (pictured with a 4" guard and standard lever throttle.) (Aluminum case shown.)

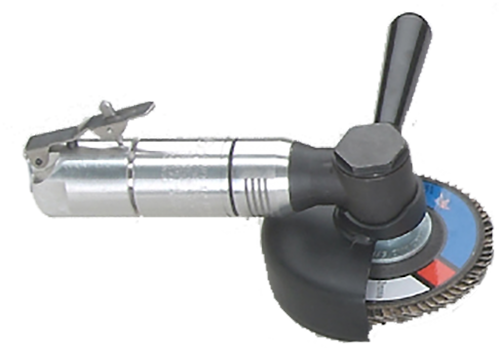

44RASZ angle grinder 5" guard

Model 44RAZK right angle grinder with a 5/8-11 threaded spindle shown with 5" guard and safety lockout throttle lever. (Aluminum case shown.) See chart for spindle sizes.

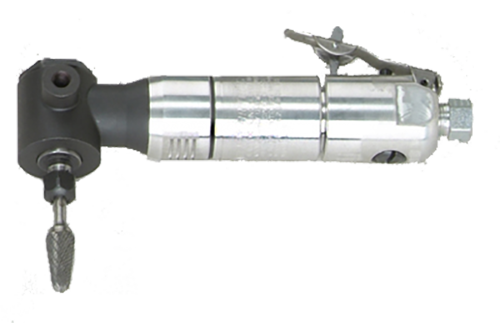

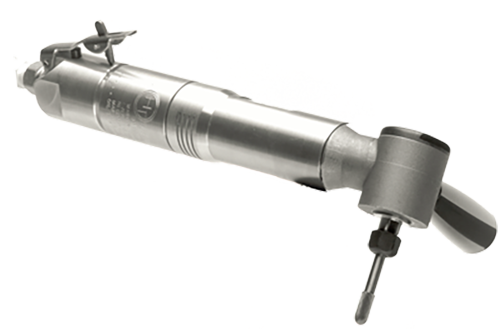

44RA Angle Grinder with collet

Model 44RACK Angle Grinder with built-in 1/4" collet spindle for use with carbide burrs and mounted points. (shown with safety lockout lever throttle). (Side Handle removed for clarity)

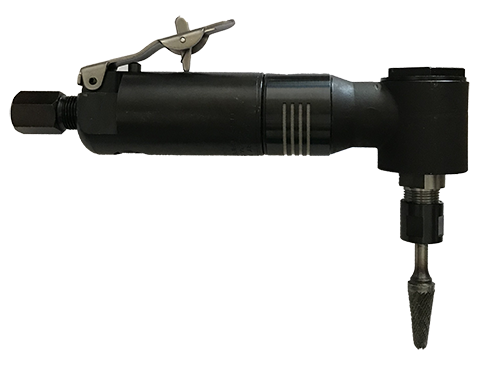

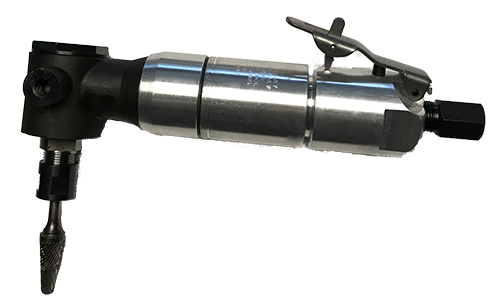

Henrytools model 44RAD Angle Grinder with Erickson collet spindle.

Model 44RADK Angle Grinder with Erickson style collet for use with Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch.    (shown with safety lockout lever throttle). (Side Handle removed for clarity)



≡

44RA Series Angle Grinder Specifications

44RA Series Angle Grinder Specifications
Model Throttle Lever Type Case Material Exhaust Direction Rated Power Weight Spindle Type Length Housing Diameter Working Air Consumption Inlet Size
44RA Lever Alum Side 0.9 H.P.(675 W) 2 1/2 lbs1.1 kg 3/8-24 x 0.58 Inch (15mm) 8 5/16"211mm 1.8 Inch(46 mm) 25 CFM(11.8 L/S) 3/8"
44RAS Lever Steel Side 0.9 H.P.(675 W) 3.5 Lbs(1.6 Kg) 3/8-24 x 0.58 Inch (15mm) 8 5/16"211mm 1.8 Inch(46 mm) 25 CFM(11.8 L/S) 3/8"
44RAC Lever Alum Side 0.9 H.P.(675 W) 2 1/2 lbs1.1 kg 1/4 Inch Built-In Collet 8 5/16"211mm 1.8 Inch(46 mm) 25 CFM(11.8 L/S) 3/8"
44RAZ Lever Alum Side 0.9 H.P.(675 W) 2 1/2 lbs1.1 kg 5/8-11 x 0.98 Inch (25mm) 8 5/16"211mm 1.8 Inch(46 mm) 25 CFM(11.8 L/S) 3/8"
44RAD Lever Alum Side 0.9 H.P.(675 W) 2 1/2 lbs1.1 kg Erickson Collet Style Spindle 8 5/16"211mm 1.8 Inch(46 mm) 25 CFM(11.8 L/S) 3/8"
44RADS Lever Steel Side 0.9 H.P.(675 W) 3.5 Lbs(1.6 Kg) Erickson Collet Style Spindle 8 5/16"211mm 1.8 Inch(46 mm) 25 CFM(11.8 L/S) 3/8"
  • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4", 5" or 6" Wheel Guard.
  • For a tool with a Safety Lock Lever throttle add a letter "K" to the end of the model number.



Features and Applications

    Industrial Benefits:

  • Henrytools traditional 44RA series grinder with a "THICK" two-piece case design for tool operators with larger hands.
  • Two piece design also provides a platform for easier tool maintenance.
  • Geared to run at 11000RPM standard.
  • Taller gears provide more power at a lower RPM.
  • An industrial right angle grinder grinder ready to tackle your toughest grinding surface preparation needs.
  • Features a stainless steel right-angle head that resists corrosion and is extra strong.
  • Spiral-beveled gears provide smooth operation and long tool life.
  • Removable side dead handle.
  • Aluminum or Steel case.
  • Adjustable exhaust direction side exhaust.
  • Choice of lever or safety lockout lever throttle to avoid accidental startups.)
  • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4", 5" or 6" Wheel Guard.



45RA Series Right Angle Grinders



 Industrial Benefits:
  • Henrytools traditional 45RA series grinder with a "THICK" two-piece case design for tool operators with larger hands.
  • Adjustable exhaust direction side exhaust.
  • Two piece design also provides a platform for easier tool maintenance.
  • Geared to run at 13500RPM standard.
  • Aluminum or Steel case.
  • Features a stainless steel right-angle head that resists corrosion and is extra strong.
  • Spiral-beveled gears provide smooth operation and long tool life.
  • Removable side dead handle.
  • Choice of lever or safety lockout lever throttle to avoid accidental startups.) Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4", 5" or 6" Wheel Guard.



45RAZ Angle Grinder with safety lever

Model 45-RAZ Aluminum case grinder shown with 5/8-11 threaded spindle and 5" guard. Tool runs at a standard speed of 13500 RPM. (choice of either an Aluminum or Steel case)

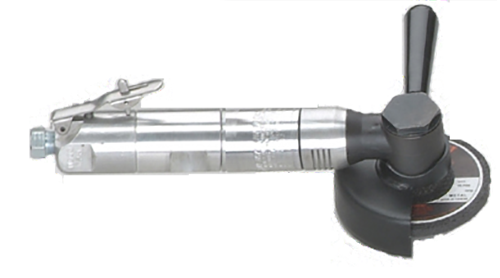

45RA angle grinder with 4" guard

Model 45-RA Aluminum cased grinder show with 3/8-24 spindle and 4" guard. Tool runs a standard speed of 13500 RPM. (choice of either an Aluminum or Steel case)

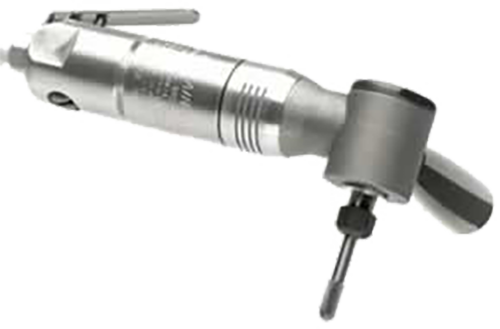

45RAC angle grinder with 1/4" collet spindle

Model 45-RAC Angle grinder with 1/4" Built-in collet spindle. For use with carbide burrs, mounted points, etc. Tool runs at a standard speed of 13500 RPM. (choice of either an Aluminum or Steel case)



≡

45RA Series Angle Grinder Specifications

45RA Angle Grinder Specifications
Model Throttle Lever Type Case Material Exhaust Direction Speed Rated Power Weight Spindle Type Length Housing Diameter Inlet Size
45RA Standard Lever Alum Side 13500to 14000R.P.M. 0.9 H.P.(675 W) 2 1/2 lbs1.1 kg 3/8-24 x 0.58 Inch (15mm) 8 5/16"211mm 1.8 Inch(46 mm) 3/8"
45RAS Standard Lever Steel Side 13500to 14000R.P.M. 0.9 H.P.(675 W) 3.5 Lbs(1.6 Kg) 3/8-24 x 0.58 Inch (15mm) 8 5/16"211mm 1.8 Inch(46 mm) 3/8"
45RAZK Safety Lockout Lever Alum Side 13500to 14000R.P.M. 0.9 H.P.(675 W) 2 1/2 lbs1.1 kg 5/8-11 x 0.98 Inch (25mm) 8 5/16"211mm 1.8 Inch(46 mm) 3/8"
45RACK Safety Lockout Lever Alum Side 13500to 14000R.P.M. 0.9 H.P.(675 W) 2 1/2 lbs1.1 kg 1/4 Inch Built-In Collet 8 5/16"211mm 1.8 Inch(46 mm) 3/8"
  • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4", 5" or 6" Wheel Guard.



Features and Applications

  • Henrytools traditional 45RA series grinder with a "THICK" two-piece case design for tool operators with larger hands.
  • Adjustable exhaust direction side exhaust.
  • Two piece design also provides a platform for easier tool maintenance.
  • Geared to run at 13500RPM standard.
  • Aluminum or Steel case.
  • Features a stainless steel right-angle head that resists corrosion and is extra strong.
  • Spiral-beveled gears provide smooth operation and long tool life.
  • Removable side dead handle.
  • Choice of lever or safety lockout lever throttle to avoid accidental startups.) Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4", 5" or 6" Wheel Guard.



44ARA Series Angle Grinders



Industrial Benefits:



  • The Henrytools 44ARA Series angle grinders feature a narrower "one piece" case design for a more comfortable grip. for smaller hands.
  • Geared to run at (9000 to 11000 R.P.M.) (11000RPM is standard).
  • Taller gears provide more power at a lower RPM.
  • An industrial right angle grinder ready to tackle your toughest grinding surface preparation needs.
  • Tool is available with either a 3/8-24 thd spindle or 5/8-11. See the chart below for the model you'd like to order.
  • A stainless steel right-angle head that resists corrosion and is extra strong.
  • Spiral-beveled gears provide smooth operation and long tool life.
  • Removable side dead handle.
  • Aluminum or steel case.
  • Adjustable exhaust direction side exhaust.
  • Choice of lever or lockout lever throttle.)
  • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4" or 5" Guard.

    •

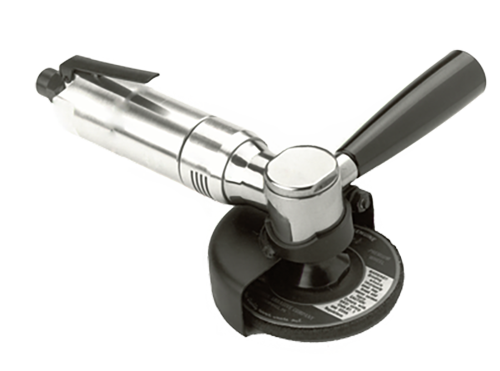

    44ARA Angle grinder with 4" guard

    Model 44ARAS a lightweight "one piece" rugged  steel cased angle grinder with a 4"Guard (11000RPM Standard speed). (sample)



    44ARAC Angle Grinder with 1/4" collet spindle

    Model 44ARACSK steel one piece cased angle grinder shown with 1/4" INTERNAL collet. (pictured with  carbide burr installed.) (11000RPM Standard speed). (with Safety lockout lever throttle.)(sample) (Carbide burrs sold seperately)



    44RADSK Angle Grinder with Erickson Collet

    Model 44ARADSK steel one piece case angle grinder with Safety Lock lever Throttle.  Features an Erickson style collet with your choice of a 1/4",  3/4" or 5/16" collet insert.  (pictured with carbide burr installed.) (11000RPM Standard speed). (sample) (Carbide burrs sold seperately)(Choice of rugged Steel or Lightweight Aluminum case).



    ≡

    44ARA Series Right Angle Grinder Specifications

    44ARA Series Angle Grinder Specifications
    Model Throttle Lever Type Case Material Exhaust Direction Speed Rated Power Weight Spindle Type Length Housing Diameter Inlet Size
    44ARA Lever Alum Side 9000to 11000R.P.M. 0.9 H.P.(675 W) 2.8 Lbs(1.3 Kg) 3/8-24 x 0.58 Inch (15mm) 7.4_Inches(188 mm) 1.6 Inches(41 mm) 3/8"
    44ARAZ Lever Alum Side 9000to 11000R.P.M. 0.9 H.P.(675 W) 2.8 Lbs(1.3 Kg) 5/8-11 x 0.98 Inch (25mm) 7.4 Inches(188 mm) 1.6 Inches(41 mm) 3/8"
    44ARAC Lever Alum Side 9000to 11000R.P.M. 0.9 H.P.(675 W) 2.8 Lbs(1.3 Kg) 1/4 Inch Built-In Collet 7.4 Inches(188 mm) 1.6 Inches(41 mm) 3/8"
    44ARASK Safety Lockout Lever Steel Side 9000to 11000R.P.M. 0.9 H.P.(675 W) 3.5 Lbs(1.6 Kg) 3/8-24 x 0.58 Inch (15mm) 7.4 Inches(188 mm) 1.6 Inches(41 mm) 3/8"
    44ARASDK Safety Lockout Lever Steel Side 9000to 11000R.P.M. 0.9 H.P.(675 W) 3.5 Lbs(1.6 Kg)

    Erickson Collet Spindle choice of 1/8", 1/4", 5/16", 3/8" collet insert

    		 7.4_Inches(188 mm) 1.6 Inches(41 mm) 3/8"
    44ARADK Safety Lockout Lever Alum Side 9000to 11000R.P.M. 0.9 H.P.(675 W) 2.8 Lbs(1.3 Kg) Erickson Collet Spindle choice of 1/8", 1/4", 5/16", 3/8" collet insert 7.4_Inches(188 mm) 1.6 Inches(41 mm) 3/8"
    • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4" or 5" Guard.

    Features and Applications

    • The Henrytools 44ARA Series angle grinders feature a narrower "one piece" case design for a more comfortable grip. for smaller hands.
    • Geared to run at (9000 to 11000 R.P.M.) (11000RPM is standard).
    • Taller gears provide more power at a lower RPM.
    • An industrial right angle grinder ready to tackle your toughest grinding surface preparation needs.
    • Tool is available with either a 3/8-24 thd spindle or 5/8-11. See the chart below for the model you'd like to order.
    • A stainless steel right-angle head that resists corrosion and is extra strong.
    • Spiral-beveled gears provide smooth operation and long tool life.
    • Removable side dead handle.
    • Aluminum or steel case.
    • Adjustable exhaust direction side exhaust.
    • Choice of lever or lockout lever throttle.)
    • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4" or 5" Guard.





    45ARA Series Angle Grinders



    Industrial Benefits:
    • Featuring a slim one piece case design for a more comfortable grip.
    • Geared to run at (13500RPM-14000RPM) (13500 RPM is standard).
    • An industrial right angle grinder grinder ready to tackle your toughest grinding surface preparation needs.
    • A stainless steel right-angle head that resists corrosion and is extra strong.
    • Spiral-beveled gears provide smooth operation and long tool life.
    • Removable side dead handle.
    • Aluminum or steel case.
    • Adjustable exhaust direction side exhaust.
    • Choice of standard lever or Safety lockout lever throttle.
    • Important: (Specify guard size when ordering. ) Choice of either a 3", 4", 5" or 6" Wheel Guard.



    45ARA angle grinder with safety lock throttle and 4" guard

    Model 45ARA with slimmer style steel case and a 4"Guard (13500RPM Standard speed). (sample) (See chart for spindle types)



    45ARAC Angle Grinder with 1/4" collet spindle

    Model 45ARAC Angle Grinder with built-in 1/4" collet shaft for use with mounted points and carbide burrs. (pictured with safety lockout lever throttle)(side handle removed for clarity)



    45ARADSK Angle Grinder with Erickson collet

    Model 45ARADSK steel one piece case angle grinder with Safety Lock lever Throttle. Features an Erickson collet with your choice of a 1/4", 3/4" or 5/16" collet insert. (pictured with carbide burr installed.) (13500RPM Standard speed). (sample) (Carbide burrs sold seperately)(Choice of Steel or Lightweight Aluminum case).



    ≡

    45ARA Angle Grinder Specifications

    45ARA Angle Grinder Specifications
    Model Throttle Lever Type Case Material Exhaust Direction Speed Rated Power Weight Spindle Type Length Housing Diameter Inlet Size
    45ARA Lever Alum Side 13500to 14000R.P.M. 0.9 H.P.(675 W) 2.8 Lbs(1.3 Kg) 3/8-24 x 0.58 Inch (15mm) 7.4_Inches(188 mm) 1.6 Inches(41 mm) 3/8"
    45ARAZ Lever Alum Side 13500to 14000R.P.M. 0.9 H.P.(675 W) 2.8 Lbs(1.3 Kg) 5/8-11 x 0.98 Inch (25mm) 7.4 Inches(188 mm) 1.6 Inches(41 mm) 3/8"
    45ARAC Lever Alum Side 13500to 14000R.P.M. 0.9 H.P.(675 W) 2.8 Lbs(1.3 Kg) 1/4 Inch Built-In Collet 7.4 Inches(188 mm) 1.6 Inches(41 mm) 3/8"
    45ARASK Safety Lockout Lever Steel Side 13500to 14000R.P.M. 0.9 H.P.(675 W) 3.5 Lbs(1.6 Kg) 3/8-24 x 0.58 Inch (15mm) 7.4 Inches(188 mm) 1.6 Inches(41 mm) 3/8"
    45ARAD Standard Lever Alum Side 13500to 14000R.P.M. 0.9 H.P.(675 W) 2.8 Lbs(1.3 Kg) Erickson Collet Spindle choice of 1/8", 1/4", 5/16", 3/8" collet insert 7.4 Inches(188 mm) 1.6 Inches(41 mm) 3/8"
    45ARASDK Safety Lockout Lever STEEL Side 13500to 14000R.P.M. 0.9 H.P.(675 W) 3.5 Lbs(1.6 Kg) Erickson Collet Spindle choice of 1/8", 1/4", 5/16", 3/8" collet insert 7.4 Inches(188 mm) 1.6 Inches(41 mm) 3/8"
    • Important: (Specify guard size when ordering. ) Choice of either a 3", 4", 5" or 6" Wheel Guard.

    Features and Applications

    • Featuring a slim one piece case design for a more comfortable grip.
    • Geared to run at (13500RPM-14000RPM) (13500 RPM is standard).
    • An industrial right angle grinder grinder ready to tackle your toughest grinding surface preparation needs.
    • A stainless steel right-angle head that resists corrosion and is extra strong.
    • Spiral-beveled gears provide smooth operation and long tool life.
    • Removable side dead handle.
    • Aluminum or steel case.
    • Adjustable exhaust direction side exhaust.
    • Choice of standard lever or Safety lockout lever throttle.
    • Important: (Specify guard size when ordering. ) Choice of either a 3", 4", 5" or 6" Wheel Guard.



    457RA "Governed" slow speed Angle Grinders



    Industrial Benefits:
    • Model 457RA Angle grinder/ sander is governor controlled for maximum power at a lower RPM.
    • (7000 RPM - 11000 RPM) (Customer must specify speed desired).
    • Adjustable side exhaust.
    • Removable side handle.
    • Spiral-beveled gears provide smooth operation and long tool life.
    • Choice of multiple spindle types.  (3/8"-24 or 5/8"-11 or Erickson type collet spindle)
    • Choice of lever or lockout lever throttle.
    • Aluminum or steel case.
    • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4" or 5" Guard.

      •

    Model 457RA Governed speed angle grinder.

    Model 457RA "Governed " slower speed" angle grinder with an Aluminum case and safety lockout lever throttle.  (Runs 8000RPM standard speed) (See specifications chart for multiple models available)



    Model 457RAD Governed speed angle grinder with an ERickson type collet spindle.

    Model 457RAD "Governed" slower speed angle grinder with an Aluminum case and safety lockout lever throttle.  (Pictured with an Erickson collet)  Perfect for running slow speed flap wheels, etc.  (Runs 8000RPM standard speed) (See specifications chart for multiple models available). Features and Erickson collet with your choice of a 1/4",  3/4" or 5/16" collet insert.



    ≡

    457RA Series Governed Speed Angle Grinder/Sander Specifications



    Model 457RA "Governed" slower speed Angle Grinders Specifications
    Model Throttle Lever Type Case Material Exhaust Direction Speed Rated Power Weight Spindle Type Length Housing Diameter Working Air Consumption Inlet Size
    457RA Standard Lever Alum Side (7000 RPM - 11000 RPM) 0.9 H.P.(675 W) 2.8 Lbs(1.3 Kg) 3/8-24 x 0.58 Inch (15mm) 8 5/16"211mm 1.8 Inch(46 mm) 25 cfm/(11.8 L/S) 3/8" N.P.T.
    457RAZ Standard Lever Alum Side (7000 RPM - 11000 RPM) 0.9 H.P.(675 W) 2.8 Lbs(1.3 Kg) 5/8-11 x 0.98 Inch (25mm) 8 5/16"211mm 1.8 Inch(46 mm) 25 cfm/(11.8 L/S) 3/8" N.P.T.
    457RAD Standard Lever Alum Side (7000 RPM - 11000 RPM) 0.9 H.P.(675 W) 2.8 Lbs(1.3 Kg) Erickson Collet Spindle 8 5/16"211mm 1.8 Inch(46 mm) 25 cfm/(11.8 L/S) 3/8" N.P.T.
    457RASK Safety Lockout Lever Steel Side (7000 RPM - 11000 RPM) 0.9 H.P.(675 W) 3.5 Lbs(1.6 Kg) 3/8-24 x 0.58 Inch (15mm) 8 5/16"211mm 1.8 Inch(46 mm) 25 cfm/(11.8 L/S) 3/8" N.P.T.
      GUARDS:
    • 4503 3” TYPE 27 GUARD
      4504 4” TYPE 27 GUARD
      4505 5” TYPE 27 GUARD
      4506 6” Type 27 GUARD

    • SPIRAL COOL PADS:
    • 889271 5/8-11 4” SANDING PAD (MAX 12000 RPM)
      889271-A 3/8-24 4” SANDING PAD (MAX 12000 RPM)
      849848 5/8-11 5” SANDING PAD (MAX 10000 RPM)
      849848-A 3/8-24 5” SANDING PAD (MAX 10000 RPM

    Features and Accessories



    • Model 457RA Angle grinder/ sander is governor controlled for maximum power at a lower RPM.
    • (7000 RPM - 11000 RPM) (Customer must specify speed desired).
    • Adjustable side exhaust.
    • Removable side handle.
    • Spiral-beveled gears provide smooth operation and long tool life.
    • Choice of multiple spindle types.  (3/8"-24 or 5/8"-11 or Erickson type collet spindle)
    • Choice of lever or lockout lever throttle.
    • Aluminum or steel case.
    • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4" or 5" Guard.
      • GUARDS:
    • 4503 3” TYPE 27 GUARD
      4504 4” TYPE 27 GUARD
      4505 5” TYPE 27 GUARD
      4506 6” Type 27 GUARD

    • SPIRAL COOL PADS:
    • 889271 5/8-11 4” SANDING PAD (MAX 12000 RPM)
      889271-A 3/8-24 4” SANDING PAD (MAX 12000 RPM)
      849848 5/8-11 5” SANDING PAD (MAX 10000 RPM)
      849848-A 3/8-24 5” SANDING PAD (MAX 10000 RPM

      •



    g

    46RA Series Right Angle Grinders



    Industrial Benefits:
    • Smaller head for the harder-to-reach applications. The small stainless steel right angle head resists corrosion and abrasion.
    • NO Side Handle provides for additional room in close quarter grinding.
    • Tool is nicely balanced for one-handed grinding operations.
    • Runs (13000-15000 RPM). (13500 RPM is standard).
    • Spiral-beveled gears provide smooth operation and long life.
    • Aluminum or rugged steel case.
    • Adjustable side exhaust.
    • Slip-fit motor design for simple maintenance.
    • Hardened steel motor parts.
    • Choice of lever or lockout lever throttle. Ships Standard: with 4" Wheel Guard.
    • Applications: cutting, weld preparation and smoothing; rust removal; deburring and blending of steel, cast iron, and aluminum.

      •

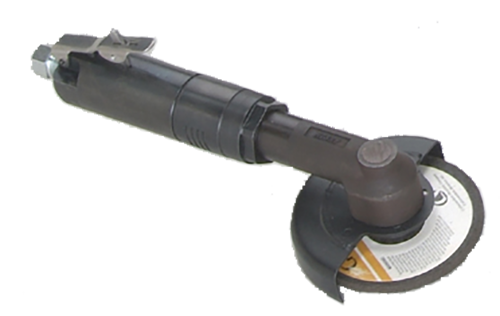

      46RAS Angle Grinder with 4" guard and safety lock throttle lever

      Model 46ARASK steel case angle grinder with 4" guard and safety Lockout lever throttle. This tool features a smaller head design for better access to confined areas . This model is equipped with the world standard 3/8-24 x 0.98 Inch spindle so it can adapt to almost any situation. (most popular model) (Lightweight aluminum case is also available.)

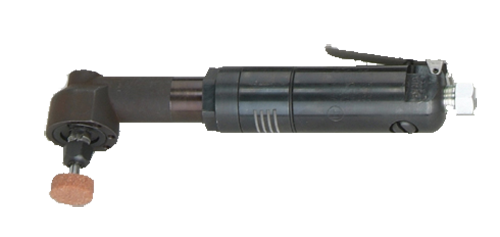

      46ARACS Angle Grinder with 1/4" collet spindle

      Model 46ARACSK Angle smaller head grinder with a steel case. Features a 1/4" built-in collet shaft for use with carbide burrs, etc. (Lightweight aluminum case is available.)

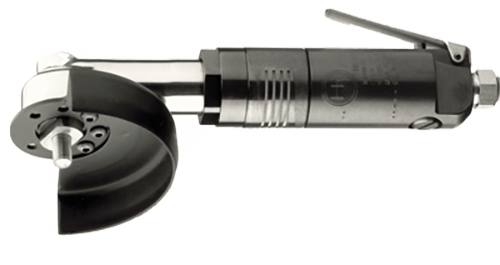

      46ARA Angle Grinder with special spindle

      Model 46ARASW Steel Right angle grinder shown. This tool has a special 3/8-24 x 0.58 Inch (This spindle is shorter and can only be used in special applications.) (Lightweight aluminum case is available.)



    ≡

    46ARA Series Specifications

    46ARA Series Angle Grinder Specifications
    Model Throttle Lever Type Case Material Exhaust Direction Speed Rated Power Weight Spindle Type Length Housing Diameter
    46ARA Standard Lever Alum Side 13000to 15000R.P.M. 0.9 H.P.(675 W) 2 lbs.10 oz..9kg 3/8-24 x 0.98 Inch (25mm) 8 7/8"225mm 1.6 Inches(41 mm)
    46ARAS Standard Lever Steel Side 13000to 15000R.P.M. 0.9 H.P.(675 W) 3.5 Lbs(1.6 Kg) 3/8-24 x 0.98 Inch (25mm) 8 7/8"225mm 1.6 Inches(41 mm)
    46ARASK Safety Lockout Lever Steel Side 13000to 15000R.P.M. 0.9 H.P.(675 W) 3.5 Lbs(1.6 Kg) 3/8-24 x 0.98 Inch (25mm) 8 7/8"225mm 1.6 Inches(41 mm)
    46ARACSK Safety Lockout Lever Steel Side 13000to 15000R.P.M. 0.9 H.P.(675 W) 3.5 Lbs(1.6 Kg) 1/4 Inch Built-In Collet 8 7/8"225mm 1.6 Inches(41 mm)
    46ARASW Standard Lever Steel Side 13000to 15000R.P.M. 0.9 H.P.(675 W) 3.5 Lbs(1.6 Kg) 3/8-24 x 0.58 Inch (15mm)(special spindle) 8 7/8"225mm 1.6 Inches(41 mm)
      Air Requirement:
    • Recommended working air pressure: 90 p.s.i.
      Working Air Consumption: 25 CFM (11.8 L/S).

    Features and Applications

    • Smaller head for the harder-to-reach applications. The small stainless steel right angle head resists corrosion and abrasion.
    • No Side Handle provides for additional room in close quarter grinding.
    • Tool is nicely balanced for one-handed grinding operations.
    • Runs (13000-15000 RPM). (13500 RPM is standard).
    • Spiral-beveled gears provide smooth operation and long life.
    • Aluminum or rugged steel case.
    • Adjustable side exhaust.
    • Slip-fit motor design for simple maintenance.
    • Hardened steel motor parts.
    • Choice of lever or lockout lever throttle. Ships Standard: with 4" Wheel Guard.
    • Applications: cutting, weld preparation and smoothing; rust removal; deburring and blending of steel, cast iron, and aluminum.
    Part Number Description
    540875 4" TYPE 27 GUARD
    400-78 3/8-24 TO 5/8-11 ADAPTER
    400-78-S 3/8-24 x 1/4 SET SCREW
    405-24 BACKING PLATE FOR 490-KR
    490-K 3/8-24 X .980 TYPE 27 ADAPT. ASSY.
    490-KR 3/8-24 X .580 TYPE 27 ADAPT. ASSY.
    490-1 BACKING PLATE FOR 490-K
    490-2 NUT FOR 490-K & 490-KR



     48RA Series Right Angle Grinders



    Industrial Benefits:
  • Removable side dead handle (Dead handle placement can be maneuvered to either side of the tool.).
    • (0.9 H.P) and a SIDE exhaust.
    • One piece case design for a more comfortable grip.
  • Geared to run at ( 9000-11000 RPM) (11000 RPM is standard). (Specify speed when ordering).
  • Made in America.
  • Taller gears provide more power at a lower RPM.
  • A stainless steel right-angle head that resists corrosion and is extra strong.
  • Extra heavy-duty angle head and spiral bevel gears for long life.
  • Aluminum or Steel case.
  • Adjustable side exhaust deflector for redirecting air away from the operator or work piece.
  • Choice of standard lever or safety lockout lever throttle.
  • Applications: cutting, weld preparation and smoothing; rust removal; deburring and blending of steel, cast iron, and aluminum.

    •

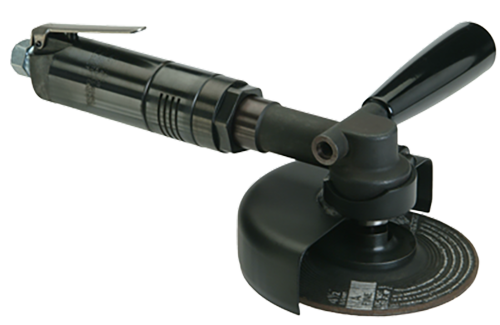

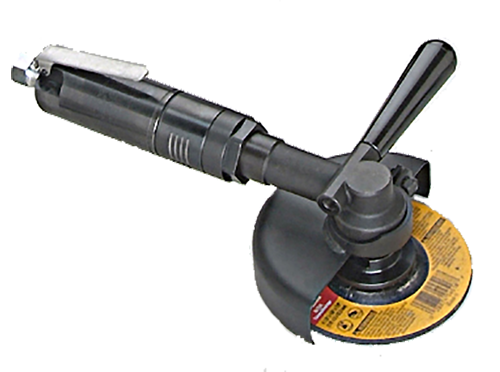

    48RA Angle Grinder with steel case and 4" guard

    Model 48RA angle grinder with standard 3/8"-24 threaded spindle and 4" guard. (11000 RPM is standard). TALLER gears provide more power at a lower RPM.   Removable side dead handle (Dead handle placement can be maneuvered to either side of the tool.).



    48RASZ Angle Grinder with 5/8" spindle

    Model 48RASZ angle grinder shown with a 5/8"-11 spindle and 5" guard. Removable side dead handle.   (Dead handle placement can be maneuvered to either side of the tool.).

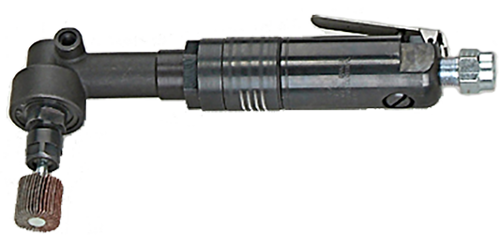

    48RASD Angle grinder with Erickson style collet

    Model 48RASD Angle grinder features an Erickson style collet for use with carbide burrs, etc. (pictured with flap whee)l. (Side handle removed for clarity.)



    ≡

    48RA Series Angle Grinder Specifications

    48RA Series Angle Grinder Specifications
    Model Throttle Lever Type Case Material Exhaust Direction Speed Rated Power Weight Spindle Type Length Housing Diameter
    48RA Standard Lever Alum Side 9000to11000R.P.M. 0.9 H.P.(675 W) 2.8 lb(1.3 Kg) 3/8-24 x 0.98 Inch (25 mm) 9.2 Inches(234 mm) 1.6 Inches(41 mm)
    48RAS Standard Lever Steel Side 9000to11000R.P.M. 0.9 H.P.(675 W) 3.5 lb(1.6 Kg) 3/8-24 x 0.98 Inch (25 mm) 9.2 Inches(234 mm) 1.6 Inches(41 mm)
    48RASZ Standard Lever Steel Side 9000to11000R.P.M. 0.9 H.P.(675 W) 3.5 lb(1.6 Kg) 5/8-11 x 0.98 Inch (25 mm) 9.2 Inches(234 mm) 1.6 Inches(41 mm)
    48RASD Standard Lever Steel Side 9000to11000R.P.M. 0.9 H.P.(675 W) 3.5 lb(1.6 Kg) Changeable Inserts(2 piece)Collet 9.2 Inches(234 mm) 1.6 Inches(41 mm)
    48RASK Safety Lockout Lever Steel Side 9000to11000R.P.M. 0.9 H.P.(675 W) 3.5 lb(1.6 Kg) 3/8-24 x 0.98 Inch (25 mm) 9.2 Inches(234 mm) 1.6 Inches(41 mm)

    Features and Applications

    48RA Series Angle Grinder features:

    • One piece case design for a more comfortable grip.
    • Geared to run at ( 9000-11000 RPM) (11000 RPM is standard). (Specify speed when ordering).
    • Taller gears provide more power at a lower RPM.
    • A stainless steel right-angle head that resists corrosion and is extra strong.
    • Extra heavy-duty angle head and spiral bevel gears for long life.
    • Removable side dead handle (Dead handle placement can be maneuvered to either side of the tool.).
    • Aluminum or steel case.
    • Adjustable side exhaust deflector for redirecting air away from the operator or work piece.
    • Choice of standard lever or safety lockout lever throttle.

    Applications:

    Applications: cutting, weld preparation and smoothing; rust removal; deburring and blending of steel, cast iron, and aluminum. The 48RA Series grinders can be used in smaller spaces where other angle grinders cannot reach.

    Air Requirement:

    Recommended working air pressure: 90 p.s.i.
    Working Air Consumption: 25 CFM (11.8 L/S).

    Model 48RAD equipped with collet spindle: capacity: 1/4 Inch Burrs/Mounted Points (standard) or(1/4", 1/8", 5/16",3/8" shafted mounted points or carbide burrs depending on thecollet insert size being used)





    44RAE Extended Length Right Angle Grinders



    Industrial Benefits:
    • Henrytools popular 44RAE Extended Length series angle grinder.
    • Geared to run at 11000RPM standard.
    • Two piece case design provides a platform for easier tool maintenance.
    • Taller gears provide more power at a lower RPM.
    • Adjustable SIDE exhaust.
    • An industrial right angle grinder grinder ready to tackle your toughest grinding surface preparation needs.
    • A stainless steel right-angle head that resists corrosion and is extra strong.
    • Spiral-beveled gears provide smooth operation and long tool life.
    • Removable side dead handle.
    • Aluminum case.
    • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4", 5" or 6" Wheel Guard



    44RAE Angle grinder wit 6" guard. Super length angle grinder.

     Model 44RAEK Extended Length Right Angle Grinder pictured with 6" guard. (shown with safety lever lockout throttle). (11000 RPM standard speed) (Your choice of either a 4", 5" or 6" guard) (Specify: a 3/8"-24 spindle or 5/8" threaded spindle when ordering)

    44RAEC Extended length angle grinder with 1/4" collet spindle

    Model 44RAECK Extended Length Grinder with Collet spindle. (Shown with carbide burr installed) (11000 RPM is standard)



    44RAE Extended Length Angle Grinder with 4" guard

    Model 44RAE Extended Length Right Angle Grinder pictured with 4" guard. (11000 RPM standard speed.  (Specify: a 3/8"-24 spindle or 5/8" threaded spindle when ordering) (See Specifications chart)



    ≡

    44RAE Extended Length Angle Grinder Specifications

    44RAE Extended Length Angle Grinder Specifications
    Model Throttle Lever Type Case Material Exhaust Direction Speed Rated Power Weight Spindle Type Length Housing Diameter Inlet Size
    44RAE Standard Lever Alum Side 9000-11000RPM 0.9 H.P.(675 W) 2.75lbs.1.2kg 3/8-24 x 0.58 Inch (15mm) 11.18 Inch284mm 1.8 Inch(46 mm) 3/8" N.P.T.
    44RAEZ Standard Lever Alum Side 9000-11000RPM 0.9 H.P.(675 W) 2.75lbs.1.2kg 5/8-11 x 0.98 Inch (25mm) 11.18 Inch284mm 1.8 Inch(46 mm) 3/8" N.P.T.
    44RAEC Standard Lever Alum Side 9000-11000RPM 0.9 H.P.(675 W) 2.75lbs.1.2kg Built-In 1/4" collet 11.18 Inch284mm 1.8 Inch(46 mm) 3/8" N.P.T.
    • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4", 5" or 6" Wheel Guard

    Features and Applications

    • Henrytools popular 44RAE Extended Length series angle grinder.
    • Two piece case design provides a platform for easier tool maintenance.
    • Geared to run at 11000RPM standard.
    • Taller gears provide more power at a lower RPM.
    • Adjustable SIDE exhaust.
    • An industrial right angle grinder grinder ready to tackle your toughest grinding surface preparation needs.
    • A stainless steel right-angle head that resists corrosion and is extra strong.
    • Spiral-beveled gears provide smooth operation and long tool life.
    • Removable side dead handle.
    • Aluminum case.
    • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4", 5" or 6" Wheel Guard



    45RAE Extended Length Right Angle Grinder



    Industrial Benefits:
    • Henrytools popular 45RAE Extended Length series angle grinder.
    • Geared to run at 13500 RPM standard.
    • Provides extra distance for the hands of the operator to be far away from the grinding wheel.
    • Two piece case design provides a platform for easier tool maintenance.
    • An industrial right angle grinder grinder ready to tackle your toughest grinding surface preparation needs.
    • A stainless steel right-angle head that resists corrosion and is extra strong.
    • Spiral-beveled gears provide smooth operation and long tool life.
    • Removable side dead handle.
    • Aluminum case.
    • Adjustable exhaust direction side exhaust.
    • Choice of lever or safety lockout lever throttle to avoid accidental startups.
    • (Other guard sizes are available at no extra cost.)
    • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4" ,5" or 6" Wheel Guard



    45RAE Extended Length Angle Grinder with 4" guard

    Model 45RAE Extended Length angle grinder with a safety lock lever throttle and 4" guard. Tool runs at 13500 RPM standard. Provides extra distance for the hands of the operator to be clear from the grinding wheel.



    45RAE Extended Length Angle Grinder with 6" guard

    Model 45RAE Extended Length angle grinder with 6" guard and safety lockout lever throttle. Tool runs at 13500 RPM standard.



    45RAEC Extended Length Angle Grinder with 1/4" built in collet.

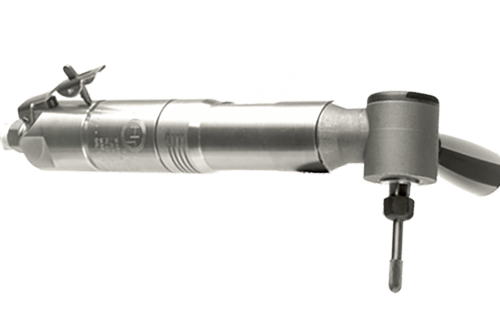

    Model 45RAECK Extended Length Grinder with Collet spindle for use with mounted stones or carbide burrs. (Shown with carbide burr installed) (13500 RPM is standard)



    ≡

    45RAE Extended Length Angle Grinder Specifications

    45RAE Extended Length Angle Grinder Specifications
    Model Throttle Lever Type Case Material Exhaust Direction Speed Rated Power Weight Spindle Type Length Housing Diameter Inlet Size
    45RAE Standard Lever Alum Side 12000-14000RPM (13500RPM is Standard) 0.9 H.P.(675 W) 2.75lbs.1.2kg 3/8-24 x 0.58 Inch (15mm) 11.18 Inch284mm 1.8 Inch(46 mm) 3/8" N.P.T.
    45RAEZ Standard Lever Alum Side 12000-14000RPM (13500RPM is Standard) 0.9 H.P.(675 W) 2.75lbs.1.2kg 5/8-11 x 0.98 Inch (25mm) 11.18 Inch284mm 1.8 Inch(46 mm) 3/8" N.P.T.
    45RAEC Standard Lever Alum Side 12000-14000RPM (13500RPM is Standard) 0.9 H.P.(675 W) 2.75lbs.1.2kg Built-In 1/4" collet 11.18 Inch284mm 1.8 Inch(46 mm) 3/8" N.P.T.
    • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4", 5" or 6" Wheel Guard



    Features and Applications

    • Henrytools popular 45RAE Extended Length series angle grinder.
    • Provides extra distance for the hands of the operator to be away from the grinding wheel.
    • Two piece case design provides a platform for easier tool maintenance.
    • Geared to run at 13500 RPM standard.
    • An industrial right angle grinder grinder ready to tackle your toughest grinding surface preparation needs.
    • A stainless steel right-angle head that resists corrosion and is extra strong.
    • Spiral-beveled gears provide smooth operation and long tool life.
    • Removable side dead handle.
    • Aluminum case.
    • Adjustable exhaust direction side exhaust.
    • Choice of lever or safety lockout lever throttle to avoid accidental startups.
    • (Other guard sizes are available at no extra cost.)
    • Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4" ,5" or 6" Wheel Guard

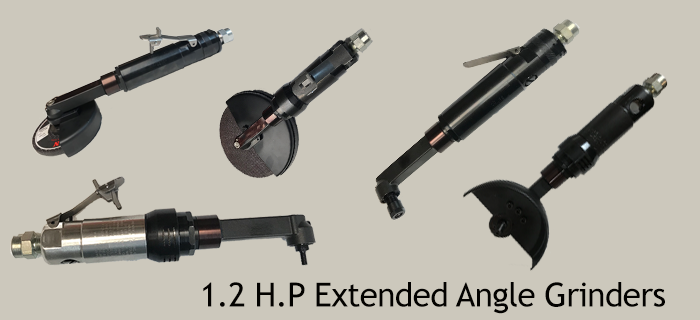

    425RA Series  Ultra Small Head Extended Angle Grinder



    Industrial Benefits:
    • Super Powerful 1.2 H.P. (900 W) motor.
    • Grinder runs at 13000RPM standard.
    • 1.0 Inch (25 mm) diameter ultra small head.
    • Extended 4.5" length front end.
    • ER Heavy Duty Collet spindle available (1/4" or 1/8" insert)
    • 3/8"-24 Spindle models you choose 4" or 6" wheel guard.
    • Available with SIDE or REAR Exhaust models. (See chart)



    Model 425RASK Angle grinder with 4" Gaurd and rear exhaust.

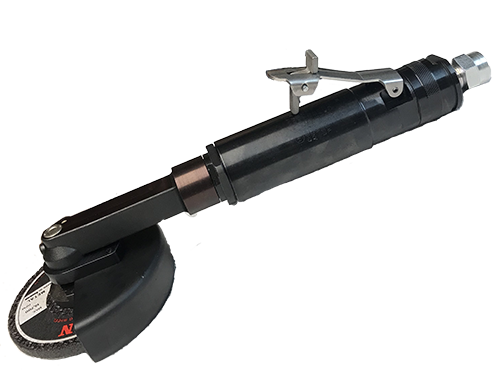

    425RA4RK Ultra Small Head Angle Grinder with REAR Exhaust and 4" Guard. (1.2 H.P.) of serious grinding power. (shown with standard 3/8"-24 spindle for standard (Type 27) depressed center grinding wheels or   (Type 41)  Cut-off wheels).



    425RARK Small angle head grinder with rear exhaust

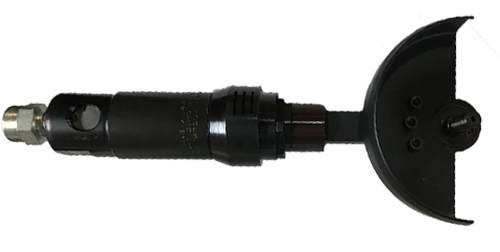

    425RA4SK Ultra Small Head Angle Grinder with SIDE Exhaust and a 4" Guard. (1.2 H.P.) (shown with standard 3/8-24 spindle for standard (Type 27) depressed center grinding wheels or (Type 41) Cut-off wheels).



    425RASK Small head extended angle Grinder with 6" guard

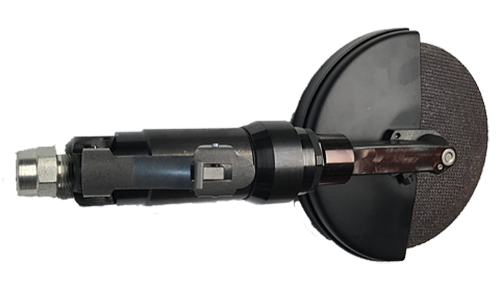

    425RA4SK Ultra Small Head Angle Grinder with SIDE Exhaust and 6" Guard. (1.2 H.P.) (shown with standard 3/8-24 spindle for standard (Type 27) depressed center grinding wheels or (Type 41) Cut-off wheels). (13000RPM is standard)



    425RADS Extended Angle Grinder with ER heavy duty collet

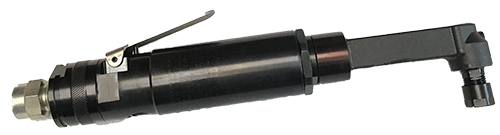

    425RADS Ultra Small Head Angle Grinder with steel case and SIDE exhaust.   Features the ER Heavy Duty Collet spindle for use with mounted points and carbide burrs.  (13000RPM is standard)



    425RA6K Ultra small head Extended Length angle grinder with 1/4"-20 threaded spindle

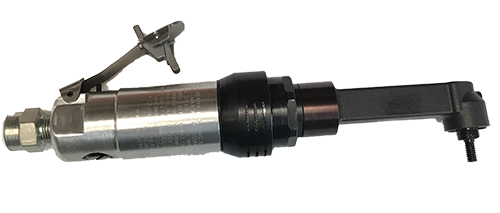

    425RA6K  Ultra Small Head Angle Grinder with SIDE Exhaust. Shown with Special   1/4"-20 Output Threaded Spindle.  This tool is used for polishing and surface conditioning/ contouring type applications.

    425RA Spindle Types
    Collet Spindle   collet spindle
     3/8"-24 Spindle 3/8-24 Spindle
     1/4"-20 Special spindle 1/4-20 Spindle
     1/4"-20 Internal Spindle 1/4-20 Internal Spindle
    ≡

    425RA Extended Small Head Grinder Specifications

    425RA / 420RA Angle GrinderSeries Specifications Chart
    MODEL Lever Throttle Type Exhaust Direction Speed Horsepower Spindle Type

    Guards

    		 Case Material Motor Case Diameter Head Diameter Height over spindle Tool Length Front Head Extension Length Tool Weight Air Inlet Notes Air Consumption
    425RA4RK Safety Lock (K) Rear 13000RPM 1.2 H.P. (900 W)
    		 3/8"-24 Thd. choice of 4" or 6" Guard Aluminum 1.6 Inch (41 mm)
    		 1.0 Inch (25 mm)
    		 2.0 Inch (51 mm)
    		 9.8 Inch (249 mm)
    		 4.5 Inch (113 mm)
    		 2.5 Lbs. (1.1 Kg) Aluminum 2.9 Lbs. (1.3 Kg) Steel
    		 3/8" NPT Inlet 1/2" (13 mm) Hose Size
    		   35 cfm (16.5 L/s) Max
    425RA4RSK Safety Lock (K) Rear 3/8"-24 Thd. choice of 4" or 6" Guard Steel
    425RA4SK Safety Lock (K) Side 3/8"-24 Thd. choice of 4" or 6" Guard Steel
    425RA4K Safety Lock (K) Side 3/8"-24 Thd. choice of 4" or 6" Guard Aluminum
    425RADS Standard Lever Rear Collet choice of 1/4" or 1/8" insert No Guard Steel
    425RAD Standard Lever Side No Guard Aluminum
    425RADRS Standard Lever Rear No Guard Steel
    420RADRSK Safety Lock (K) Rear No Guard Steel
    425RA6K  Safety Lock (K) Side 1/4"-20 thrd. No Guard Alum
    425RAS6RK  Safety Lock (K) Rear 1/4"-20 thrd. No Guard Steel


    *Specify which collet Insert size you require when ordering (1/4" or 1/8")

    ** Specify which wheel guard size you require (4" or 6")



    425RA Spindle Types
    Collet Spindle (choice of 1/4" or 1/8" insert)   collet spindle
     3/8"-24 Spindle 3/8-24 Spindle
     1/4"-20 Special spindle 1/4-20 Spindle
     1/4"-20 Internal Spindle 1/4-20 Internal Spindle



    Features and Applications

    Industrial Benefits:

    • Super Powerful 1.2 H.P. (900 W) motor.
    • motor that runs 13000RPM standard.
    • 1.0 Inch (25 mm) diameter ultra small head.
    • Extended 4.5" length front end.
    • ER Heavy Duty Collet spindle available (1/4" or 1/8" insert)
    • 3/8"-24 Spindle models you choose 4" or 6" wheel guard.
    • Available with SIDE or REAR Exhaust models. (See chart)







    ≡MENU
