Chipping Hammers Page ...

Explore  the Henrytool industrial chipping hammers lineup for light, medium and heavy duty operations.

Chipping Hammers

Checkout the entire Henrytool lineup of these American made chipping hammers.  We also carry a line of chisels that can accomadate any of the chipping hammers you see listed on this page

Enhanced Exhaust Systems...

The following models can be enhanced with improved exhaust systems:

Chipping Hammers

Light Duty thru Heavy Duty series...

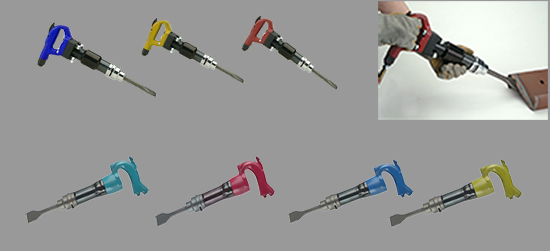

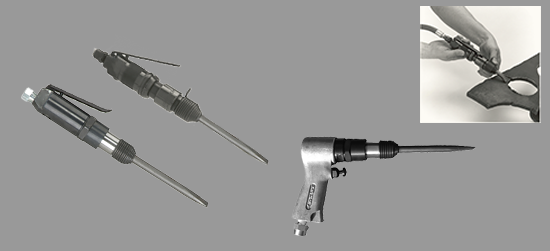

Light Duty Chipping Hammers4 bolt chipping hammer lineup multi tool pic

NA-16 Series Light Duty Chipping Hammers



Henrytools N-16 Chipping hammer in action

Industrial Benefits:

  • Featuring a FRONT exhaust.
  • Hard-hitting action for fast chipping and peening.
  • (5200 blows per minute)
  • Heavy-duty spring type chisel retainer.
  • Available with either a hex or round tool nose.
  • (Spring/Beehive Chisel Retainer)
  • Air Inlet Size: 1/4" NPT
    Hose Size Recommended: 3/8" (10 mm)
    Recommended air pressure 90 PSI
  • Chisel types: Hexagon or Round shank.
  • See chisels that are available for this tool.

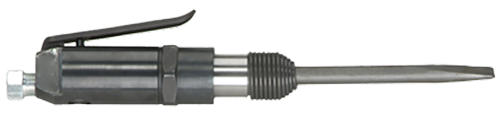

Henrytools NA-16 chipping hammer

NA-16 light-duty pneumatic chipping hammer featuring a FRONT exhaust. Available with either a hex or round tool nose.

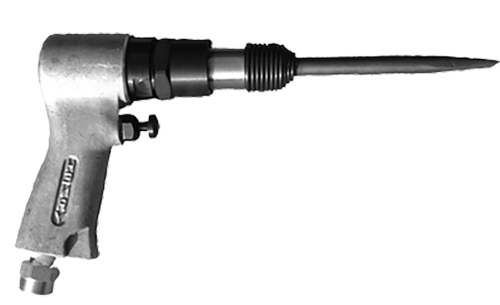

Henrytools NA-16P pistol Grip chipping hammer

NA-16PX Pistol Type pneumatic chipping hammer featuring a FRONT exhaust. Available with either a hex or round tool nose. (See chart)



NA-16 Front Exhaust Light duty chipping hammer specifications
Model Thrtl Type Exh.Direction BPM Tool Nose Bore and Stroke Overall Length Weight Body Dia Working Air Consumption
NA-16X Standard Lever FRONT Exhaust 5200 0.371 Hex .63 Inch x1.44 Inch(16 mm x37 mm) 8.5 Inches(216 mm) 3.5 Lb.(1.6 Kg) 1.7Inches(43 mm) 15 cfm(7.1 L/S)
NA-16R Standard Lever FRONT Exhaust 5200 0.401 Round .63 Inch x1.44 Inch(16 mm x37 mm) 8.5 Inches(216 mm) 3.5 Lb.(1.6 Kg) 1.7Inches(43 mm) 15 cfm(7.1 L/S)
NA-16PX Pistol Handle FRONT Exhaust 5200 0.371 Hex .63 Inch x1.44 Inch(16 mm x37 mm) 8.5 Inches(216 mm) 3.5 Lb.(1.6 Kg) 1.7Inches(43 mm) 15 cfm(7.1 L/S)
NA-16PR Pistol Handle FRONT Exhaust 5200 0.401 Round .63 Inch x1.44 Inch(16 mm x37 mm) 8.5 Inches(216 mm) 3.5 Lb.(1.6 Kg) 1.7Inches(43 mm) 15 cfm(7.1 L/S)

See chisel chart.

Light Duty chipping hammer chisels chart
Part Number Cutting Edge Width Description Overall Length Pic Shank Type
595001 1/2" Narrow chisel 7" Hex Shank
595003 1/2" Narrow chisel 12" Hex Shank
595004 1/2" Narrow chisel 18" Hex Shank
596009 1/2" Narrow chisel 7" Round Shank
596010 1/2" Narrow chisel 12" Round Shank
596011 1/2" Narrow chisel 18" Round Shank



N-16 Chipping Hammer Series



Industrial Benefits:
  • Featuring a SIDE exhaust.
  • Hard-hitting action for fast chipping and peening.
  • (5200 blows per minute)
  • Heavy-duty spring type chisel retainer.
  • Available with either a hex or round tool nose.
  • (Spring/Beehive Chisel Retainer)
  • Air Inlet Size: 1/4" NPT
    Hose Size Recommended: 3/8" (10 mm)
    Recommended air pressure 90 PSI
  • Chisel types: Hexagon or Round shank.
  • See chisels that are available for this tool.

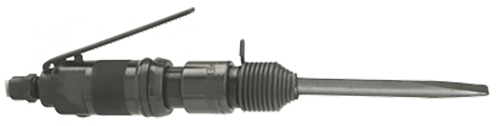

Henrytools N-16 Chipping hammer with Side exhaust

N-16 light-duty chipping hammer chipping hammer with "SIDE"exhaust.



N-16 chipping hammer in action



N-16 Side Exhaust Light Duty Chipping Hammer specifications
Model Throttle Type Exhaust Direction Blows per Minute Tool Nose Bore and Stroke Overall Length Weight Body Diameter Working Air Consumption
N-16X Standard Lever SIDE Exhaust 5200 0.371 Hex .63 Inch x1.44 Inch(16 mm x37 mm) 8.5 Inches(216 mm) 3 lbs., 3 oz.1.5 kg 1.7Inches(43 mm) 15 cfm(7.1 L/S)
N-16R Standard Lever SIDE Exhaust 5200 0.401 Round .63 Inch x1.44 Inch(16 mm x37 mm) 8.5 Inches(216 mm) 3 lbs., 3 oz.1.5 kg 1.7Inches(43 mm) 15 cfm(7.1 L/S)



Light Duty Chipping Hammer Chisels chart
Part Number Cutting Edge Width Description Overall Length Pic Shank Type
595001 1/2" Narrow chisel 7" Hex Shank
595003 1/2" Narrow chisel 12" Hex Shank
595004 1/2" Narrow chisel 18" Hex Shank
596009 1/2" Narrow chisel 7" Round Shank
596010 1/2" Narrow chisel 12" Round Shank
596011 1/2" Narrow chisel 18" Round Shank



HT-4B20 (4-Bolt) Chipping hammer with a 2" stroke



Industrial Benefits:
  • Henrytools 4-Bolt chipping hammer series with a 2" stroke.
  • 2400 blows per minute.
  • High air flow  4-bolt chipping hammer handle for increased efficiency.
  • A forged steel or lightweight aluminum handle is available for the ultimate in versatility.
  • Steel 4-bolt flange for increased durability and strength, plus ease of serviceability.
  • Choice of round tool nose for .680" round shank chisels or hex tool nose for .580" hexagon shank chisels.
  • Choice of bushing: Round-chisel freely rotates, Hex prevents chisel rotation.
  • Four bolt design eliminates handle breakage while being easy to disassemble for maintenance.
  • Includes chisel retainer and chisel retainer spring.
  • (You specify either hex or round tool nose to accommodate your particular chisel type when ordering)

PLEASE NOTE WHEN ORDERING:
* For a tool with an aluminum handle, add an "A" to end of model number.
* For a tool with a hex tool nose, add an "X" to end of model number
* For a tool with a round tool nose, add an "R" to end of model number.

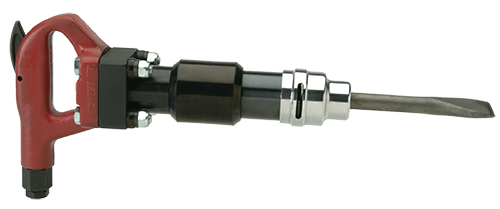

Henrytools HT-4B20 (4 Bolt) chipping hammer

Model HT-4B20 (4-bolt chipping hammer) features a hard hitting 2" stroke. This 4-bolt model delivers world class specific blows per minute for light and medium-hard renovation and construction tasks. This model has an optional ALUMINUM lightweight handle available. (See chart)

chipping hammer in action



Model Blows per Minute Bore and Stroke Overall Length Weight w/Steel Handle Weight w/Alum Handle Air Inlet Working Air Consumption
HT-4B20 2400 1.125" x 2", 28.5mm x 50.8mm 14"356mm 13.5 lbs6.1 kg 9.5 lbs 3/8" N.P.T. 26 CFM

PLEASE NOTE WHEN ORDERING:
* For a tool with an aluminum handle, add an "A" to end of model number.
* For a tool with a hex tool nose, add an "X" to end of model number
* For a tool with a round tool nose, add an "R" to end of model number.

Medium Duty Chipping Hammer Chisels Chart
Part No. Description Cutting Edge Width Pic Overall Length Shank Type
839008 Narrow 1" narrow chisel pic 9" .580 hex shank
839009 Narrow 1" narrow chisel pic 12"
839010 Narrow 1" narrow chisel pic 18"
839016 Wide 2" wide chisel pic 12"
839018 Moil Point - moil point chisel 9"
839014 Narrow 1" narrow chisel pic 9" .680 Round shank
839017 Wide 2" wide chisel pic 9"
839023 Moil Point - moil point chisel 9"
839045 Narrow 1" narrow chisel pic 18"
839047 Wide 2" wide chisel pic 12"
839083 Narrow 1" narrow chisel pic 12"



Chipping Hammer Collar
Part Number Size Fits Tool Models View
2500-12-525(6872122) For Oval Collar Type Chisels HT-4B Series or Sullair Chippers or CP4123 retainer



Chipping Hammer Swivel Hose connector
Part Number Description View
1080 Swivel hose connector for all chipping hammers with 7/8-24 I.D. inlet thread. Use with all HT Series Chipping Hammers. swivel hose connector



HT-4B30 (4-Bolt) Chipping Hammer with a 3" stroke



Industrial Benefits:
  • Henrytools 4-Bolt chipping hammer series with a 3" stroke.
  • 1920 Blows per minute
  • High air flow 4-bolt chipping hammer handle for increased efficiency.
  • A forged steel or lightweight aluminum handle is available for the ultimate in versatility.
  • Used for medium to heavy duty chipping and trimming operations.
  • Steel 4-bolt flange for increased durability and strength, plus ease of serviceability.
  • Choice of round tool nose for .680" round shank chisels or hex tool nose for .580" hexagon shank chisels.
  • Choice of bushing: Round-chisel freely rotates, Hex prevents chisel rotation.
  • Four bolt design eliminates handle breakage while being easy to disassemble for maintenance.
  • Includes chisel retainer and chisel retainer spring.
  • (You specify either hex or round tool nose to accommodate your particular chisel type when ordering)

PLEASE NOTE WHEN ORDERING:
* For a tool with an aluminum handle, add an "A" to end of model number.
* For a tool with a hex tool nose, add an "X" to end of model number
* For a tool with a round tool nose, add an "R" to end of model number.

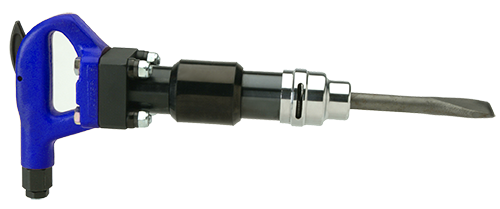

HT-4B30 (4-Bolt) Chipping Hammer with a 3" stroke

Model HT-4B30 (4-bolt chipping hammer) features a 3" stroke for extra hitting power.    This model has an optional ALUMINUM lightweight handle available.  (See chart)



HT-4B30 (4-bolt chipping hammer) with 3" Stroke Specifications
Model Blows per Minute Bore and Stroke Overall Length Weight w/Steel Handle Weight w/Alum Handle Air Inlet Working Air Consumption
HT-4B30 1920 1.125" x 3", 28.5mm x 76.2 mm 16" 406mm 14.5 lbs6.5 kg 10.5 lbs 3/8" 30 CFM

PLEASE NOTE WHEN ORDERING:
* For a tool with an aluminum handle, add an "A" to end of model number.
* For a tool with a hex tool nose, add an "X" to end of model number
* For a tool with a round tool nose, add an "R" to end of model number.



Medium Duty Chipping Hammer Chisel Chart Medium Duty Chipping Hammer Chisels Chart
Part No. Description Cutting Edge Width Pic Overall Length Shank Type
839008 Narrow 1" narrow chisel pic 9" .580 hex shank
839009 Narrow 1" narrow chisel pic 12"
839010 Narrow 1" narrow chisel pic 18"
839016 Wide 2" wide chisel pic 12"
839018 Moil Point - moil point chisel 9"
839014 Narrow 1" narrow chisel pic 9" .680 Round shank
839017 Wide 2" wide chisel pic 9"
839023 Moil Point - moil point chisel 9"
839045 Narrow 1" narrow chisel pic 18"
839047 Wide 2" wide chisel pic 12"
839083 Narrow 1" narrow chisel pic 12"



Oval Collar for chipping hammers
Part Number Size Fits Tool Models View
2500-12-525(6872122) For Oval Collar Type Chisels HT-4B Series or Sullair Chippers or CP4123 retainer



Swivel Hose Connector for Chipping Hammers
Part Number Description View
1080 Swivel hose connector for all chipping hammers with 7/8-24 I.D. inlet thread. Use with all HT Series Chipping Hammers. swivel hose connector





HT-4B40 (4-Bolt) Chipping hammer with a 4" stroke



Industrial Benefits:
  • Henrytools 4-Bolt chipping hammer series with a 4" stroke.
  • 1500 Blows per minute
  • Used for heavier cutting , chipping and trimming applications.
  • High air flow 4-bolt chipping hammer handle for increased efficiency.
  • A forged steel or lightweight aluminum handle is available for the ultimate in versatility.
  • Steel 4-bolt flange for increased durability and strength, plus ease of serviceability.
  • Choice of round tool nose for .680" round shank chisels or hex tool nose for .580" hexagon shank chisels.
  • Choice of bushing: Round-chisel freely rotates, Hex prevents chisel rotation.
  • Four bolt design eliminates handle breakage while being easy to disassemble for maintenance.
  • Includes chisel retainer and chisel retainer spring.
  • (You specify either hex or round tool nose to accommodate your particular chisel type when ordering)

PLEASE NOTE WHEN ORDERING:
* For a tool with an aluminum handle, add an "A" to end of model number.
* For a tool with a hex tool nose, add an "X" to end of model number
* For a tool with a round tool nose, add an "R" to end of model number.

Henrytools HT-4B-40 (4-bolt chipping hammer) with 4" stroke

 Model HT-4B40 (4-bolt chipping hammer) features a 4" stroke for incredible hitting power this model has an optional ALUMINUM lightweight handle available. (See chart)



HT-4B40 (4-Bolt chipping Hammer) with 4" Stroke Specifications
Model Blows per minute Bore and Stroke Overall Length Weight w/Steel Handle Weight w/Alum Handle Air Inlet Working Air Consumption
HT-4B40 1500 1.125" x 4", 28.5mm x 101.6mm 16" 406mm 15.5 lbs7.0 kg 11.5 lbs 3/8" 33 CFM



Medium Duty Chipping Hammer Chisels Chart
Part No. Description Cutting Edge Width Pic Overall Length Shank Type
839008 Narrow 1" narrow chisel pic 9" .580 hex shank
839009 Narrow 1" narrow chisel pic 12"
839010 Narrow 1" narrow chisel pic 18"
839016 Wide 2" wide chisel pic 12"
839018 Moil Point - moil point chisel 9"
839014 Narrow 1" narrow chisel pic 9" .680 Round shank
839017 Wide 2" wide chisel pic 9"
839023 Moil Point - moil point chisel 9"
839045 Narrow 1" narrow chisel pic 18"
839047 Wide 2" wide chisel pic 12"
839083 Narrow 1" narrow chisel pic 12"



Oval Collar for chipping hammers
Part Number Size Fits Tool Models View
2500-12-525(6872122) For Oval Collar Type Chisels HT-4B Series or Sullair Chippers or CP4123 retainer



Swivel hose connector for Chipping Hammers
Part Number Description View
1080 Swivel hose connector for all chipping hammers with 7/8-24 I.D. inlet thread. Use with all HT Series Chipping Hammers. swivel hose connector



HT-20 HenryTools 2 " stroke chipping hammer



Industrial Benefits:
  • This is the Original style Henrytools classic series chipping hammer.
  • Featuring a 2" stroke.
  • 2400 Blows per minute
  • Rugged forged Steel handle.
  • Simplate valve assembly provides fine control of throttle and trouble free operation.
  • Choice of round tool nose for .680" round shank chisels(.680" Round chisel rotates freely) or hex tool nose(.580" Hexagon chisel prevents chisel rotation).
  • Increased power and efficiency on work surfaces.
  • Teasing throttle for precise control. Pistol grip handle with self closing outside trigger.
  • 100% compatible with the Chicago Pneumatic CP4123 series chipping hammers.



Henrytools HT-20 Chipping Hammer with 2" stroke



Model HT-20 chipping hammer featuring a 2" stroke and 2400 Blows per Minute. Used for medium to heavy duty chipping and trimming operations.









HT-20 Henrytools Chipping Hammer Specifications
Model Blows per Minute Bore and Stroke Overall Length Net Weight Air Inlet Working Air Consumption
HT-20 2400 1 1/8" x 2", 28.5mm x 50.8mm 14"356mm 13.5 lbs6.1 kg 3/8" N.P.T. 25 cfm



Medium Duty Chipping Hammer Chisel Chart
Part No. Description Cutting Edge Width Pic Overall Length Shank Type
839008 Narrow 1" narrow chisel pic 9" .580 hex shank
839009 Narrow 1" narrow chisel pic 12"
839010 Narrow 1" narrow chisel pic 18"
839016 Wide 2" wide chisel pic 12"
839018 Moil Point - moil point chisel 9"
839014 Narrow 1" narrow chisel pic 9" .680 Round shank
839017 Wide 2" wide chisel pic 9"
839023 Moil Point - moil point chisel 9"
839045 Narrow 1" narrow chisel pic 18"
839047 Wide 2" wide chisel pic 12"
839083 Narrow 1" narrow chisel pic 12"



Swivel Hose Connector for Chipping Hammers
Part Number Description View
1080 Swivel hose connector for all chipping hammers with 7/8-24 I.D. inlet thread. Use with all HT Series Chipping Hammers. swivel hose connector



HT-30 HenryTools 3 " stroke chipping hammer



Industrial Benefits:
  • Featuring a 3" stroke.
  • 1920 (BPM)
  • Rugged forged Steel handle.
  • Simplate valve assembly provides fine control of throttle and trouble free operation.
  • Choice of round tool nose for .680" round shank chisels(.680" Round chisel rotates freely) or hex tool nose (.580" Hexagon chisel prevents chisel rotation).
  • Increased power and efficiency on work surfaces.
  • Teasing throttle for precise control. Pistol grip handle with self closing outside trigger.
  • A classic Henrytools chipping hammer. 100% compatible with the Chicago Pneumatic CP4123 series chipping hammers.



Henrytools Model HT-30 chipping hammer with 3" stroke.

Model HT-30 chipping hammer with a 3" stroke. This Chipping hammer hits at 1920 Blow Per Minute.



HT-30 Henrytools Chipping Hammer Specifications
Model Blows per Minute Bore and Stroke Overall Length Net Weight Air Inlet Working Air Consumption
HT-30 1920 1 1/8" x 3", 28.5mm x 76.2 mm 16" 406mm 14.5 lbs6.5 kg 3/8" N.P.T. 26 cfm



Medium Duty Chipping Hammer Chisel Chart
Part No. Description Cutting Edge Width Pic Overall Length Shank Type
839008 Narrow 1" narrow chisel pic 9" .580 hex shank
839009 Narrow 1" narrow chisel pic 12"
839010 Narrow 1" narrow chisel pic 18"
839016 Wide 2" wide chisel pic 12"
839018 Moil Point - moil point chisel 9"
839014 Narrow 1" narrow chisel pic 9" .680 Round shank
839017 Wide 2" wide chisel pic 9"
839023 Moil Point - moil point chisel 9"
839045 Narrow 1" narrow chisel pic 18"
839047 Wide 2" wide chisel pic 12"
839083 Narrow 1" narrow chisel pic 12"



Swivel Hose Connector for Chipping Hammers
Part Number Description View
1080 Swivel hose connector for all chipping hammers with 7/8-24 I.D. inlet thread. Use with all HT Series Chipping Hammers. swivel hose connector





HT-40 HenryTools 4 " stroke chipping hammer



Industrial Benefits:
  • Featuring a 4" stroke.
  • 1500 (BPM)
  • Rugged forged Steel handle.
  • Used for medium to heavy duty chipping and trimming operations.
  • Simplate valve assembly provides fine control of throttle and trouble free operation.
  • Choice of round tool nose for .680" round shank chisels(.680" Round chisel rotates freely) or hex tool nose (.580" Hexagon chisel prevents chisel rotation).
  • Increased power and efficiency on work surfaces.
  • Teasing throttle for precise control. Pistol grip handle with self closing outside trigger.
  • A classic Henrytools chipping hammer. 100% compatible with the Chicago Pneumatic CP4123 series chipping hammers.

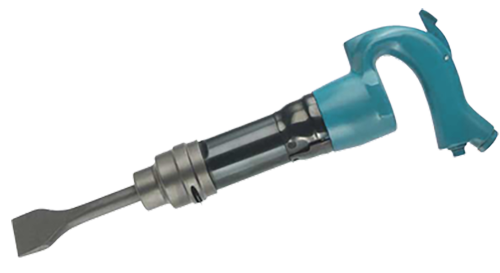

Henrytools HT-40 Chipping hammer with 4" stroke.

Model HT-40 chipping hammer with a 4" stroke. This Chipping hammer hits at 1500 Blows Per Minute.   A super tough and hard hitting chipping hammer to tackle demanding jobs.



HT-40 Henrytools Chipping Hammer Specifications
Model Blows per Minute Bore and Stroke Overall Length Net Weight Air Inlet Working Air Consumption
HT-40 1500 1 1/8" x 4", 28.5mm x 101.6mm 17"432mm 15.5 lbs7.0 kg 3/8" N.P.T. 27 cfm



Medium Duty Chipping Hammer Chisels Chart
Part No. Description Cutting Edge Width Pic Overall Length Shank Type
839008 Narrow 1" narrow chisel pic 9" .580 hex shank
839009 Narrow 1" narrow chisel pic 12"
839010 Narrow 1" narrow chisel pic 18"
839016 Wide 2" wide chisel pic 12"
839018 Moil Point - moil point chisel 9"
839014 Narrow 1" narrow chisel pic 9" .680 Round shank
839017 Wide 2" wide chisel pic 9"
839023 Moil Point - moil point chisel 9"
839045 Narrow 1" narrow chisel pic 18"
839047 Wide 2" wide chisel pic 12"
839083 Narrow 1" narrow chisel pic 12"



Swivel Hose Connector for Chipping Hammers
Part Number Description View
1080 Swivel hose connector for all chipping hammers with 7/8-24 I.D. inlet thread. Use with all HT Series Chipping Hammers. swivel hose connector





MENU
