Air Saw Page...

Explore this heavy duty industrial air saw with extreme cutting power.

Air Saw Page

Super heavy duty industrial air saw with maximum torque and provides high performance under severe applications.

Advanced Air Tool Design...

The following models are enhanced for use in an industrial environment:

65VBW Heavy Duty Industrial Air Saw

(4 H.P.)

65vbw Air Saw introduction page pic

65VBW Ultra Heavy Duty Industrial Air Saw (4 H.P.)



Industrial Benefits:
  • Incredible cutting power for cutting concrete, masonry concrete pipes, cutting walls, floors, ceilings, refractory brick and for all concrete anchoring systems.
  • The Henrytools 65VBW Series air saw is available with either a 12" wheel guard for 0"-4" cutting depth or a 14" wheel guard for 0"-5" cutting depth.
  • Slip-fit motor design assures simple maintenance.
  • Corrosion resistant stainless steel governor keeps the tool at a steady R.P.M. while maintaining maximum power.
  • Spade-Grip throttle control.
  • Featuring the Super-powerful Henrtyools (4 H.P.) motor.
  • Working Air Consumption: 40 cfm (18.9 L/s)Free Speed / 75 cfm (35.4 L/s)
  • Max Recommended working air pressure: 90 p.s.i.

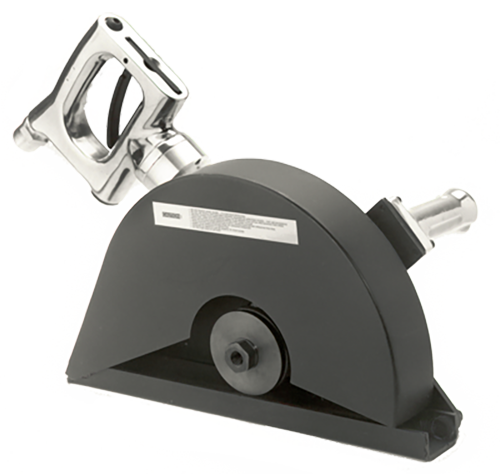

Henrytools 65VBW Ultra Heavy Duty Industrial Air Saw (4 H.P.) Front View

Model 65VBW Ultra Heavy Duty Industrial Air Saw (4 H.P.)  Runs at 6000RPM standard speed.  Equipped with 12" Guard. (Also Available with a 14" Guard) (See specifications chart)

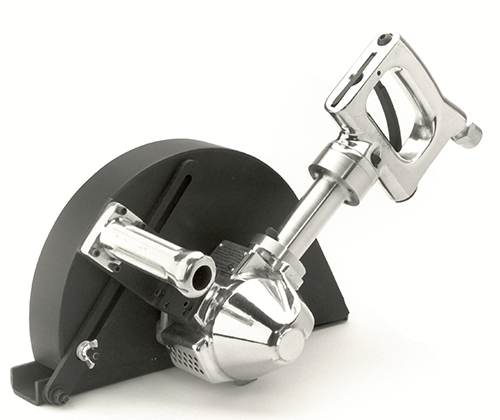

Henrytools 65VBW Ultra Heavy Duty Industrial Air Saw (4 H.P.) Rear View

Model 65VBW Ultra Heavy Duty Industrial Air Saw (4 H.P.) Runs at 6000RPM standard speed. Equipped with  a 12" Guard. (Also Available with a 14" Guard) (Reverse View)



65VBW Industrial Air Saw Specifications
Model Guard Size MaximumDepth of Cut Air Saw Blade Diameter Speed Weight Inlet Size Hose Size Rated Power
65VBWF 12 Inch(300mm) 3.3 Inch(84mm) 12 Inch(300 mm) 4000, 5000 or6000RPM (Standard) 28.3 Lb.(12.8_Kg) 1/2" 1/2" 4.0 H.P.(3000W)
65VBWM 14 Inch(360mm) 4.3 Inch(109mm) 14 Inch(360 mm) 4000, 5000 or6000RPM (Standard) 30.9 Lb.(14.1Kg) 1/2" 1/2" 4.0 H.P.(3000W)

* Specify 12" or 14" Guard when ordering.

Industrial Benefits:

  • Incredible cutting power for cutting concrete, masonry concrete pipes. This air saw can be used for cutting walls, floors, ceilings, refractory brick and for all concrete anchoring systems.
  • The Henrytools 65VBW Series air saw is available with either a 12" wheel guard for 0"-4" cutting depth or a 14" wheel guard for 0"-5" cutting depth.
  • Slip-fit motor design assures simple maintenance.
  • Corrosion resistant stainless steel governor keeps the tool at a steady R.P.M. while maintaining maximum power.
  • Spade-Grip throttle control.
  • Featuring the Super-powerful Henrtyools (4 H.P.) motor.
  • Working Air Consumption: 40 cfm (18.9 L/s)Free Speed / 75 cfm (35.4 L/s)
  • Max Recommended working air pressure: 90 p.s.i.
