Extended Die Grinders Page...

Henrytool die grinder applications include medium and heavy-duty grinding with straight, cone wheels, wire brushes and roll-type abrasives; and heavy-duty sanding and polishing.

Extended Die Grinders Page

Extended straight air die grinders are ideal for grinding, sanding, and shaping in an industrial environment. The additional length helps to facilitate work in hard-to-reach areas. All of these air grinders can use either carbide burrs or mounted grinding stones, available separately.   Some of these extended die grinders are designed specifically to be used with cutoff wheels.

Advanced Airtool Design...

The following models are enhanced for use in an industrial environment:

Extended Length Die Grinders

 Perfect for extremely demanding industrial  applications.

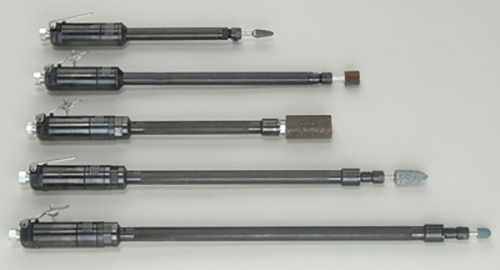

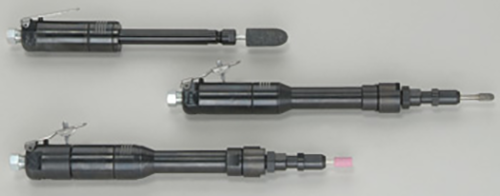

Multiple extended grindersMultiple extended die grinders

12GH Series Extended Die Grinder



Industrial Benefits:
  • 300 Series 1/4" collet.
  • 5" extended housing for hard to reach areas.
  • (0.3) H.P. and 25,000 RPM is standard.
  • Lightweight and easy to maneuver.
  • Side Exhaust.

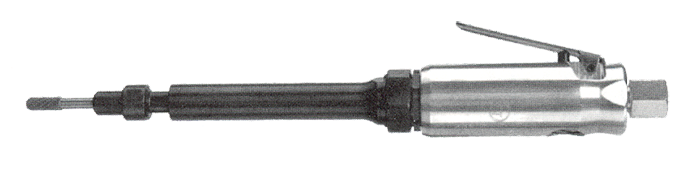

Model 12GHL extnded die grinder with 300 series collet.

Model 12GHL Extended Die Grinder with a 300 series 1/4" collet. Available in a variety of speeds.



≡

12GH Extended Die Grinder Specifications

12GH Series Extended Die Grinder Specifications
Model No. Throttle Type Exhaust Direction Horsepower Speed Extension Weight Length Diameter Air Consumption Air Inlet
12GHL Lever Side 0.3 H.P.
(0.22 kW)		 18,000 to
25,000
R.P.M.		 5 inches 1.2 lb / 0.45 kg 7.6 inches / 193 mm 1.500”
38.1mm		 19 cfm
(4.7 L/S)		 1/4 inch
12GHK Safety Lock Lever Side 0.3 H.P.
(0.22 kW)		 5 inches 1.2 lb / 0.45 kg 7.6 inches / 193 mm 1.500”
38.1mm		 19 cfm
(4.7 L/S)		 1/4 inch



Features and Applications

  • Industrial Benefits:
  • 300 Series 1/4" collet.
  • 5" extended housing for hard to reach areas.
  • (0.3) H.P. and 25,000 RPM is standard.
  • Lightweight and easy to maneuver.



40AGH Series Extended Length Die Grinders



    Industrial Benefits:

    • An American world standard industrial type extended die grinder.
    • The 40AGHL Series extended grinders feature heavy-duty double row front bearings providing maximum spindle support.
    • Small diameter housing fits comfortably in the palm of your hand.
    • Extended housing allows two-hand operation.
    • Hardened steel motor parts for extended tool life.
    • Unitized motor provides easy maintenance.
    • Collet chuck and spindle models accommodate various mounted accessories.
    • Adjustable direction airflow side exhaust.
    • Available in either an aluminum or rugged steel case.
    • Choice of lever or safety lockout lever throttle.

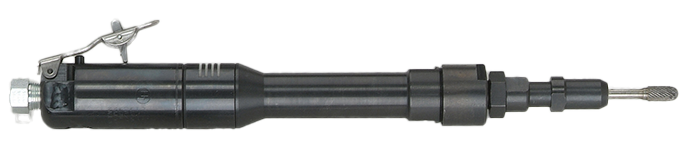

40AGHLS Extended die grinder with collet

Model 40AGHLSK the world standard steel cased extended length die grinder with safety lock lever throttle. (Specify collet or guard when ordering .)

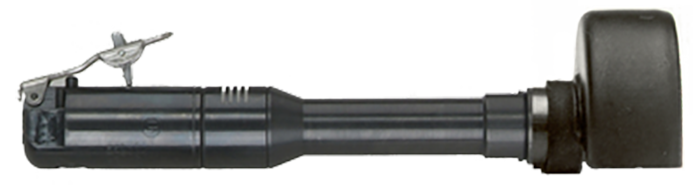

40AGHL Extended die grinder with 4" guard

Model 40AGHLSK extended die grinder with steel case and 4" wheel guard. (Specify collet or guard when ordering).



≡

40AGH Series Extended Length Die Grinders Specifications

40AH Series Die Grinder Specifications
Model LeverType Case Material Weight Speed Spindle Type Length DiameterFront Housing Motor Dia. Rated Power
40AGHL StandardLever Alum 2.8 Lb.(1.3 Kg) 18000-22000R.P.M. 3/8-24 X 1.0Inch 13.1 Inch(334mm) 1.50 Inch(38.1 mm) 1.6 Inch(41 mm) 0.9 H.P.675 W
40AGHS StandardLever Steel 4.1 Lb.(1.9 Kg) 18000-22000R.P.M. 3/8-24 X 1.0Inch 13.1 Inch(334mm) 1.50 Inch(38.1 mm) 1.6 Inch(41 mm) 0.9 H.P.675 W
40AGHK Safety Lock Lever Alum 2.8 Lb.(1.3 Kg) 18000-22000R.P.M. 3/8-24 X 1.0Inch 13.1 Inch(334mm) 1.50 Inch(38.1 mm) 1.6 Inch(41 mm) 0.9 H.P.675 W
40AGHSK Safety Lock Lever Steel 4.1 Lb.(1.9 Kg) 18000-22000R.P.M. 3/8-24 X 1.0Inch 13.1 Inch(334mm) 1.50 Inch(38.1 mm) 1.6 Inch(41 mm) 0.9 H.P.675 W



Your choice of the following when ordering:
  1. Guards: 4" (501-4A)
  2. Collets: HT-1010 (1/4" collet)
  3. Collets: Ht-1010-3/8" (3/8" collet)

Features and Applications

40AGHL Series features:

  • An American world standard industrial type extended die grinder.
  • The 40AGHL Series extended grinders feature heavy-duty double row front bearings providing maximum spindle support.
  • Small diameter housing fits comfortably in the palm of your hand.
  • Extended housing allows two-hand operation.
  • Hardened steel motor parts for extended tool life.
  • Unitized motor provides easy maintenance.
  • Collet chuck and spindle models accommodate various mounted accessories.
  • Adjustable direction airflow side exhaust.
  • Available in either an aluminum or rugged steel case.
  • Choice of lever or safety lockout lever throttle.



40EHL Series Extended Length Grinder



    Industrial Benefits:
  • The Henrytools 40EH Series extended length die grinder features a super- narrow front end for grinding in previously inaccessible areas.
  • The 40EHL Series extended grinders small diameter housing fits in the palm of your hand.
  • Extended housing allows two-hand operation.
  • Hardened steel motor parts for extended tool life.
  • Unitized motor provides easy maintenance.
  • Erickson collet chuck can accommodate various mounted accessories.
  • Adjustable airflow direction side exhaust.
  • Choice of lever or safety lockout lever throttle.
  • *Tool is not designed for type 1 or 27 grinding wheels.
  • Capacity: Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch



Industrial Benefits:
  • An American world standard industrial type extended die grinder.
  • The 40AGHL Series extended grinders feature heavy-duty double row front bearings providing maximum spindle support.
  • Small diameter housing fits comfortably in the palm of your hand. Extended housing allows two-hand operation.
  • Tool is 13.1 Inch (334mm) in length. Hardened steel motor parts for extended tool life.
  • Unitized motor provides easy maintenance.
  • Collet chuck and spindle models accommodate various mounted accessories.
  • Adjustable direction airflow side exhaust. Available in either an aluminum or rugged steel case.
  • Choice of lever or safety lockout lever throttle.
  • *Tool is designed for type 1 or 27 grinding wheels. A collet can be attached for use with carbide burrs and flap wheels.

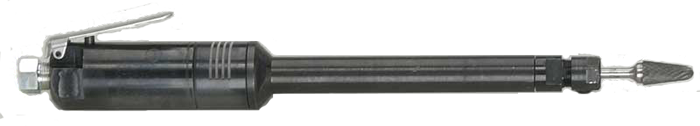

40EHLS extended die grinder

Model 40EHLS steel case extended die grinder with narrow front-end for grinding in confined areas. Total length of this extended tool is approx 12.7 inches. Super extended 40EH models are featured further down on this webpage.



≡

40EHL Series Extended Length Grinder Specifications

40EHL Series Extended Die Grinder Specifications
Model LeverType CaseMaterial Weight Speed SpindleType Length Dia.FrontHousing MotorDia. RatedPower
40EHLS StandardLever Steel 3.5 lb(1.6 kg) 15000-22000RPM EricksonCollet 12.7 inch(232_mm) .88 Inch22.4mm 1.62 inch/41 mm 0.9 H.P.675 W
40EHLSK Safety Lock Lever Steel 3.5 Lb(1.6 kg) 15000-22000RPM EricksonCollet 12.7 inch(232 mm) .88 Inch22.4mm 1.62 inch/41 mm 0.9 H.P.675 W
  • Capacity: Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch



Features and Applications

    40EHLS Die Grinder features:
  • The Henrytools 40EH Series extended length die grinder features a super- narrow front end for grinding in previously inaccessible areas.
  • The 40EHL Series extended grinders small diameter housing fits in the palm of your hand.
  • Extended housing allows two-hand operation.
  • Hardened steel motor parts for extended tool life.
  • Unitized motor provides easy maintenance.
  • Erickson collet chuck can accommodate various mounted accessories.
  • Adjustable airflow direction side exhaust.
  • Choice of lever or safety lockout lever throttle.

  • Capacity:
    Burrs/Mounted Stones of shank size 1/8 inch,
    1/4 inch, 5/16 inch, 3/8 inch
    • *Tool is not designed for type 1 or 27 grinding wheels.



39GH Series Extended Die Grinders





Industrial Benefits:
  • The 3917 Series extended length die grinder features a narrow front-end housing for grinding in confined areas. (17" extended length front end.)
  • Extended housing allows comfortable two-hand operation.
  • Hardened steel motor parts for extended tool life.
  • Unitized motor provides easy maintenance.
  • Adjustable airflow direction side exhaust.
  • Choice of lever or safety lockout lever throttle.
  • Quick change spindle design easily adapts tool to collet, 3/8-24, 1/2-13, or 5/8-11 spindle type.
  • Internal isolated sub-spindle and air motor design reduces vibration.
  • Slim extended length front-end reaches remote areas.

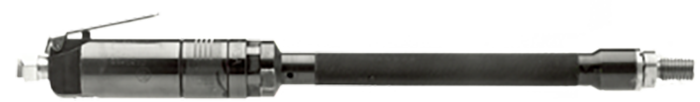

Model 3917GHLS exended length grinder with 5/8" Threaded Spindle. This tool features a very narrow front end extension.



3917G Extended grinder with 5/8 spindle with cone type wheel.

Model 3917GHLS Steel extended grinder shown with cone type wheel attached. (5/8" Threaded Spindle)

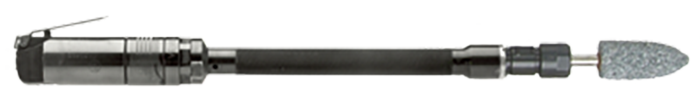

3917GH extended grinder with erickson type collet.

Model 3917GHLS Steel extended grinder shown with Erickson collet type spindle. (See chart for all the spindles that can be interchanged.)

  • ** Add a "C" to end of model number for a collet. (1/4" collet insert is standard).
  • *** Add a "Z" to end of model number for a 5/8-11 spindle.
  • **** Add a "I" to end of model number for a 3/8-24 spindle.
  • ***** Add a "T" to end of model number for a 1/2-13 spindle.

≡

39G Series Extended Grinder Specifications



3917GH Series Extended Die Grinder Specifications
Model LeverType Case Material Weight Speed Spindle Type Dia. Front Housing Length Working Air Consumption Motor Dia. Rated Power
3917GHLS Regular Lever Steel 4 lbs.,1.82kg 15000, 18000 or 22000RPM Choice of 3/8-24, 1/2-13, 5/8-11 x 1.000" (2.5cm) Long or 1/8", 1/4", 5/16", 3/8" collet insert. 1.120"2.5cm 17"(431mm) 25cfm11.8 L/S 1.625"2.5cm 0.9 H.P.675 W
  • 3/8-24, 1/2-13, or 5/8-11 spindle type.

Features and Applications

    Industrial Benefits:

  • The 3917 Series extended length die grinder features a narrow front-end housing for grinding in confined areas. (17" extended length front end.)
  • Extended housing allows comfortable two-hand operation.
  • Hardened steel motor parts for extended tool life.
  • Unitized motor provides easy maintenance.
  • Adjustable airflow direction side exhaust.
  • Choice of lever or safety lockout lever throttle.
  • Quick change spindle design easily adapts tool to collet, 3/8-24, 1/2-13, or 5/8-11 spindle type.
  • Internal isolated sub-spindle and air motor design reduces vibration.
  • Slim extended length front-end reaches remote areas.





40AGH+6" Super-extended 19" length grinder





Industrial Benefits:
  • An American world standard industrial type super-extended die grinder.
  • Features heavy-duty "DOUBLE ROW" front bearings providing maximum spindle support.
  • Small diameter housing fits comfortably in the palm of your hand.
  • Extended housing allows two-hand operation.
  • Collet chuck and spindle models accommodate various mounted accessories.
  • Adjustable direction airflow side exhaust.
  • Available in either an aluminum or rugged steel case.
  • Choice of lever or safety lockout lever throttle.
  • Capacity:
    4 Inch (100mm) Type 1 Wheels Burrs/Mounted Stones of shank size 1/4 Inch, 3/8 Inch (with appropriate collet). Any Type 16, 17, 17R, 18 or 18R Cone Wheels w/ 3/8-24 Mounting Inlet Size: 1/4"
    Hose Size Recommended: 3/8" (10 mm). Working Air Consumption: 25 CFM

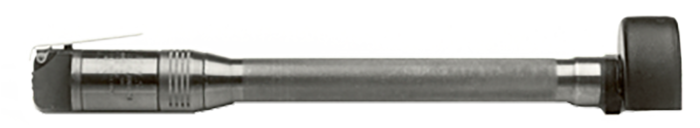

40AGH+6 extended die grinder shown with wheel guard.

Model 40AGHLS+6 Extended length die grinder featuring "double row" front bearings for superior spindle support. Specify when ordering: choice of collet or wheel guard.  Collet chuck and spindle models accommodate various mounted accessories.

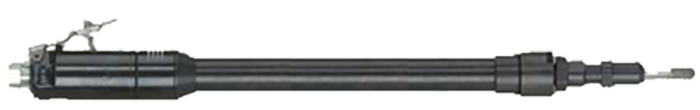

40AGH+6 extended die grinder with double row bearings. shown with collet.

Model 40AGHLS+6 Extended Length die grinder shown with HT-1010 collet for use with carbide burrs.



≡

40AGH+6" Super extended Length Grinder Specifications

40AGH+6 Extended Die Grinder Specifications
Model LeverType Case Material Weight Speed Spindle Type Length DiameterFront Housing Motor Dia. Rated Power
40AGHLS+6 Standard Lever Steel 5.8 Lb.(2.6 Kg) 15000-22000R.P.M. 3/8-24 X 1.0Inch 19.1 Inch(486 mm) 1.50 Inch(38.1 mm) 1.6 Inch(41 mm) 0.9 H.P.675 W
40AGHLSK+6 Safety Lock Lever Steel 5.8 Lb.(2.6 Kg) 15000-22000R.P.M. 3/8-24 X 1.0Inch 19.1 Inch(486 mm) 1.50 Inch(38.1 mm) 1.6 Inch(41 mm) 0.9 H.P.675 W
    Capacity:
    4 Inch (100mm) Type 1 Wheels Burrs/Mounted Stones of shank size 1/4 Inch, 3/8 Inch (with appropriate collet). Any Type 16, 17, 17R, 18 or 18R Cone Wheels w/ 3/8-24 Mounting Inlet Size: 1/4"
    Hose Size Recommended: 3/8" (10 mm)
  • Working Air Consumption: 25 CFM

Features and Applications

40AGHL+6" Super Extended Length Grinder features:

  • An American world standard industrial type super-extended die grinder.
  • The 40AGHL+6" Series extended grinders feature heavy-duty double row front bearings providing maximum spindle support.
  • Small diameter housing fits comfortably in the palm of your hand.
  • Extended housing allows two-hand operation.
  • Hardened steel motor parts for extended tool life.
  • Unitized motor provides easy maintenance.
  • Collet chuck and spindle models accommodate various mounted accessories.
  • Adjustable direction airflow side exhaust.
  • Available in either an aluminum or rugged steel case.
  • Choice of lever or safety lockout lever throttle.



40EHL+6 Extended Length 18.7" Grinder





Industrial Benefits:
  • Super-extended die grinder 18.7" in Length.
  • Features a longer super- narrow front end for grinding in previously inacessible areas.
  • Erickson collet chuck can accommodate various mounted accessories.
  • Adjustable airflow direction side exhaust.
  • Choice of standard lever or safety lockout lever throttle.
  • Tool Ships standard with a 1/4" Collet insert. Other sized collet inserts can be purchased: 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch.

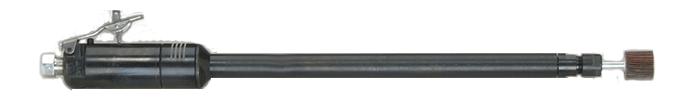

40EHL+6 extended die grinder with built in erickson type collet.

Model 40EHL+6" Extended Length die grinder shown with safety lockout lever throttle and flap wheel.



≡

40EH+6 Extended Length Die Grinder Specifications

40EH+6 Extended Die Grinder Specifications
Model LeverType CaseMaterial Weight Speed SpindleType Length Dia.FrontHousing MotorDia. RatedPower
40EH+6" StandardLever Steel 5.8 lb2.6 kg. 15000-22000RPM EricksonCollet Longer18.7 inch(475 mm) .88 Inch22.4mm 1.62 inch41 mm 0.9 H.P.675 W
40EHK+6" Safety Lock Lever Steel 5.8 lb2.6 kg. 15000-22000RPM EricksonCollet Longer18.7 inch(475 mm) .88 Inch22.4mm 1.62 inch41 mm 0.9 H.P.675 W
  • collet inserts can be purchased: 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch.

Features and Applications

  • 40EHL+6 Extended Length die grinder features:
  • Super-extended die grinder 18.7" in Length.
  • Features a longer super- narrow front end for grinding in previously inacessible areas.
  • The 40EHL+6" Series extended grinders small diameter housing fits in the palm of your hand.
  • Extended housing allows comfortable two-handed operation.
  • Hardened steel motor parts for extended tool life.
  • Unitized motor provides easy maintenance.
  • Erickson collet chuck can accommodate various mounted accessories.
  • Adjustable airflow direction side exhaust.
  • Choice of standard lever or safety lockout lever throttle.Tool
  • Ships standard with a 1/4" Collet insert.
  • Other sized collet inserts can be purchased: 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch.

  •

39GH Plus Series "Super Extended" Length Die Grinders





Industrial Benefits:
  • The Henrytools 39GH Serie super-extended length grinder are available in a 17", 22" or 27" length version.
  • Quick change spindle design easily adapts tool to collet, 3/8-24, 1/2-13, or 5/8-11 spindle type.
  • Internal isolated sub-spindle and air motor design reduces vibration.
  • Slim extended length front-end reaches remote areas.
  • Adjustable airflow side exhaust.
  • Choice of lever or lockout lever throttle.



3927G super extended die grinder with 27" length.

Model 3927GHLSK featuring a staggering 27" overall length. Multiple spindle types can be ordered for this extended length grinder. (see specifications chart) (shown with safety lockout lever throttle)



3922GH Super extended die grinder. 22" length withErickson type collet.

Model 3922GHLSK featuring a 22" overall length. Multiple spindle types can be had for this extended length grinder.



3917GH extended die grinder. 17" length with 5/8-11 spindle

Model 3917GHLSK featuring a 17" overall length. Multiple spindle types can be had for this extended length grinder. (shown with safety lockout lever throttle) (5/8-11 spindle shown with cone wheel)

  • ** Add a "C" to end of model number for a collet. (1/4" collet insert is standard).
  • *** Add a "Z" to end of model number for a 5/8-11 spindle.
  • **** Add a "I" to end of model number for a 3/8-24 spindle.
  • ***** Add a "T" to end of model number for a 1/2-13 spindle.
≡

39GH Plus Series Super Extended Die Grinders Specifications

3917GH Super Extended Die Grinder Specifications
Model LeverType CaseMaterial Weight Speed SpindleType Length DiameterFrontHousing MotorDia RatedPower
3917_GHLS StandardLever Steel 4 lbs.,1.82kg 15000, 18000 or 22000RPM See Note 17"/431mm 1.120"/2.5cm 1.625"/2.5cm 0.9 H.P/.675 W
3922_GHLS StandardLever Steel 4.5 lbs.,2.05kg 15000, 18000 or 22000RPM See Note: 22"/558mm 1.120"/2.5cm 1.625"/2.5cm 0.9 H.P/.675 W
3922_GHLS Safety LockoutLever Steel 4.5 lbs.,2.05kg 15000, 18000 or 22000RPM See Note: 22"/558mm 1.120"/2.5cm 1.625"/2.5cm 0.9 H.P/.675 W
3927_GHLS StandardLever Steel 5 lbs.,2.27kg 15000, 18000 or 22000RPM See Note: 27"/685mm 1.120"/2.5cm 1.625"/2.5cm 0.9 H.P/.675 W
3927_GHLSK Safety LockoutLever Steel 5 lbs.,2.27kg 15000, 18000 or 22000RPM See Note: 27"/685mm 1.120"/2.5cm 1.625"/2.5cm 0.9 H.P/.675 W
  • 3/8-24, 1/2-13, or 5/8-11 spindle type. (specify which spindle you'd prefer while ordering)
  • ** Add a "C" to end of model number for a collet. (1/4" collet insert is standard).
    *** Add a "Z" to end of model number for a 5/8-11 spindle.
    **** Add a "I" to end of model number for a 3/8-24 spindle.
    ***** Add a "T" to end of model number for a 1/2-13 spindle.

Features and Applications

  • The Henrytools 39GH Serie super-extended length grinder are available in a 17", 22" or 27" length version.
  • Quick change spindle design easily adapts tool to collet, 3/8-24, 1/2-13, or 5/8-11 spindle type.
  • Internal isolated sub-spindle and air motor design reduces vibration.
  • Slim extended length front-end reaches remote areas.
  • Adjustable airflow side exhaust.
  • Choice of lever or lockout lever throttle.







≡MENU
