Horizontal Air Grinders Page...

Henrytools Horizontal Air Grinders are suitable for general grinding, cleaning castings, deburring and other industrial tasks.

Horizontal Air Grinders

These horizontal air grinders are built to last. Henrytools offers these grinders in multiple sizes and power outputs. They can cut and shape metal, remove excess material from a workpiece, or general surface preparation. These lightweight Horizontal air grinders offer durability and superior productivity in an industrial environment.

Advanced Airtool Design...

The following models are enhanced for use in an industrial environment:

Horizontal Grinder Horsepowers Available

1.5 Horsepower

2 Horsepower

3 Horsepower

4 Horsepower

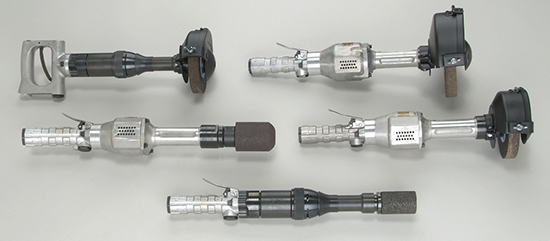

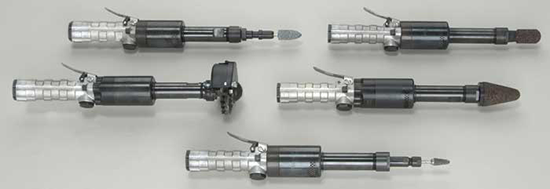

multiple henrytool 1.5 horsepower horizontal grinders

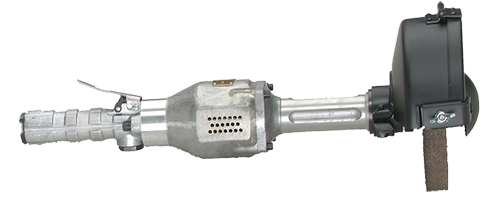

multiple henrytool extreme duty horsepower horizontal grinders

51H Series (1.5 H.P.) Horizontal Grinders



Industrial Benefits:
  • Featuring a powerful Henrtyool (1.5 H.P.) motor.
  • Ships standard with 3/8"-24 threaded spindle. An optional 1/2-13 threaded spindle is also available.
  • Runs 15000-18000RPM Standard (customer specifies speed).
  • Rugged steel housing and hardened steel motor parts.
  • Fully adjustable side exhaust deflector to direct air away from the operator.
  • Motor design limits air motor noise without loss of power.
  • These tools are ideal for use with plug wheels, grinding wheels or collet chuck .
  • Your choice of either a collet, guard or cone wheel adaptor. (Specify when ordering).
  • Henrytools durability sets our industrial airtools apart from the others. The emphasis is on making tools that last. Providing a platform of tool balance and power.

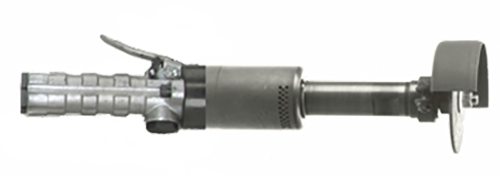

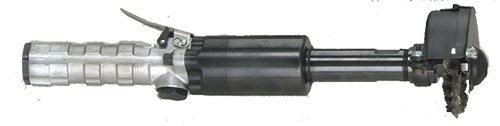

Henrytools Model 51H horizontal air Grinder with 4" guard

Henrytools model 51HL Horizontal grinder shown with a 4" wheel guard. A versatile tool that can be used with grinding wheels or collets for mounting carbide burrs or mounted points. (Shown with wire wheel)

Henrytools 51H horizontal grinder with HT-1010 collet and carbide burr

Henrytools model 51HKS Horizontal grinder shown with Safety Lockout throttle. The HT-1010 collet is shown for use with carbide burrs and mounted points.

Henrytools 51H horizontal grinder with cone wheel adaptor

Henrytools model 51HL Horizontal grinder shown with standard 3/8-24 spindle. Shown with optional cone wheel adaptor for use with cone wheels.

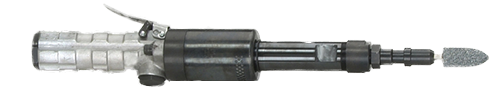

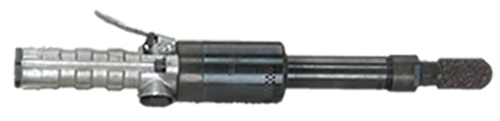

Henrytools 51H horizontal grinder pic

Henrytools model 51HL Horizontal grinder shown with standard 3/8-24 spindle. Shown with optional cone wheel adaptor for use with cone wheels.

Applications:
  • Henrytools grinders provide the torque required for Metal fabrication, Production Prep, Ship Building, Utilities and Tool and Die.
  • Henrytool Horizontal grinders are specially designed for heavy-duty production applications.
Capacity:
  • 3 Inch (75 mm) or 4 Inch (100mm) Type 1 Wheels
    Burrs/Mounted Stones of shank size 1/4 Inch, 3/8 Inch
    Any Type 16, 17, 17R, 18 or 18R Cone Wheels w/ 3/8-24 Mounting
  • Working Air Consumption: 35 cfm (16.5 L/S)
  • Recommended working air pressure: 90 p.s.i.
    Hose Size Recommended: 1/2" (13 mm)
≡

51H Series Horizontal Grinders Specifications

51HL Horizontal Grinder Series Specifications
Model Throttle Lever Type Exhaust Direction Case Material Overall Length Spindle Type and Length Body Diameter Weight Rated Power
51HL Standard Lever Side Steel 18.2 Inch463mm 3/8-24 X 1.0_Inch(3/8-24 X 25 mm) 2.5 Inch(63.5 mm) 7.2 Lb.3.3Kg 1.5 H.P.1130 W
51HK SafetyLockout Lever Side Steel 18.2 Inch463mm 3/8-24 X 1.0_Inch(3/8-24 X 25 mm) 2.5 Inch(63.5 mm) 7.2 Lb.3.3Kg 1.5 H.P.1130 W
51H-13 Standard Lever Side Steel 18.2 Inch463mm 1/2-13 x 1"(25mm) threaded Spindle 2.5 Inch(63.5 mm) 7.2 Lb.3.3Kg 1.5 H.P.1130 W
51HK-13 SafetyLockout Lever Side Steel 18.2 Inch463mm 1/2-13 x 1"(25mm) threaded Spindle 2.5 Inch(63.5 mm) 7.2 Lb.3.3Kg 1.5 H.P.1130 W

** Specify 3", 4" or Collet when ordering. There is also a Cone wheel adaptor available for this tool.

Features and Accessories

  • Rugged steel housing and hardened steel motor parts.
  • Ships standard with 3/8"-24 threaded spindle. An optional 1/2-13 threaded spindle is also available.
  • Fully adjustable side exhaust deflector to direct air away from the operator.
  • Motor design limits air motor noise without loss of power.
  • These tools are ideal for use with plug wheels, grinding wheels or collet chuck .
  • Runs 15000-18000RPM Standard (customer specifies speed).
  • Your choice of either a collet, guard or cone wheel adaptor. (Specify when ordering).
  • Henrytools durability sets our industrial airtools apart from the others. The emphasis is on making tools that last. Providing a platform of tool balance and power.



511HL Series Horizontal Grinders (1.5 H.P.)



Industrial Benefits:
  • A powerful (1.5 H.P.) horizontal grinder with a 5/8-11 threaded spindle.
  • This tool is specifically designed for use with Plug-wheels/Cone-Wheels  .
  • Featuring a powerful Henrtyool (1.5 H.P.) motor.
  • Rugged steel housing.
  • Hardened steel motor parts.
  • Fully adjustable side exhaust deflector to direct air away from the operator.
  • Motor design limits air motor noise without loss of power.
  • Runs 15000-18000RPM (18000RPM is Standard) (customer specifies speed).
  • Henrytools durability sets our industrial airtools apart from the others.
  • This tool provides a platform of tool balance and power.
  • Capacity: Any Type 16, 17, 17R, 18 or 18R Cone Wheels w/ 5/8-11 Mounting (2 inch maximum). Working Air Consumption: 35 cfm (16.5 L/S)
Applications:
  • Henrytools grinders provide the torque required for :
  • Metal fabrication, Production Prep, Ship Building, Utilities and Tool and Die.
  • Henrtool Horizontal grinders are specially design for heavy-duty production applications.

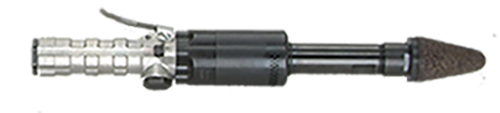

Henrytools 511H Series Horizontal Grinder for cone wheels

Model 511HLSK Horizontal Grinder with Safety Lockout lever throttle and 5/8-11 threaded spindle. This tool is designed for use with cone wheels requiring no other attachments. (shown with rock attached.)



Henrytools 511H horizontal grinder

Model 511HLSK Horizontal Grinder with standard lever throttle and 5/8-11 threaded spindle. This tool is designed for use with cone wheels requiring no other attachments. (shown with rock attached.)



≡

511HL Series Horizontal Grinder Specifications

511H Horizontal Cone Wheel Grinders Specifications Chart
Model Exhaust Direction Throttle Lever Type Case Material Overall Length Spindle Type and Length Body Diameter Weight Rated Power
511HLS Side Standard Lever Steel 17.1 Inch434mm 5/8-11 X 0.9Inch(5/8-11 X 23mm) 2.5 Inch(63.5 mm) 7.2 Lb.3.3 Kg 1.5 H.P.1130 W
511HLSK Side SafetyLockout Lever Steel 17.1 Inch434mm 5/8-11 X 0.9Inch(5/8-11 X 23mm) 2.5 Inch(63.5 mm) 7.2 Lb.3.3 Kg 1.5 H.P.1130 W
511HG Side Spade Grip Handle Steel 17.1 Inch434mm 5/8-11 X 0.9_Inch(5/8-11 X 23mm) 2.5 Inch(63.5 mm) 8.2 Lb.3.7 Kg 1.5 H.P.1130 W



Features and Accessories

  • A powerful (1.5 H.P.) horizontal grinder with a 5/8-11 threaded spindle.
  • This tool is specifically designed for use with Plug-wheels/Cone-Wheels  .
  • Featuring a powerful Henrtyool (1.5 H.P.) motor.
  • Rugged steel housing.
  • Hardened steel motor parts.
  • Fully adjustable side exhaust deflector to direct air away from the operator.
  • Motor design limits air motor noise without loss of power.
  • Runs 15000-18000RPM (18000RPM is Standard) (customer specifies speed).
  • Henrytools durability sets our industrial airtools apart from the others.
  • This tool provides a platform of tool balance and power.
  • Capacity: Any Type 16, 17, 17R, 18 or 18R Cone Wheels w/ 5/8-11 Mounting (2 inch maximum). Working Air Consumption: 35 cfm (16.5 L/S)

Applications:

  • Henrytools grinders provide the torque required for :
  • Metal fabrication, Production Prep, Ship Building, Utilities and Tool and Die.
  • Henrtool Horizontal grinders are specially design for heavy-duty production applicaitons.



5102H Series Horizontal Grinder (1.5 H.P.)



Industrial Benefits:
  • Featuring an Erickson style collet chuck to accommodate various collet insert sizes. (1/4", 3/8", 1/8" ,etc.)
  • Rugged steel housing and hardened steel motor parts.
  • An all American powerful (1.5 H.P.) motor.
  • Fully adjustable side exhaust deflector to direct air away from the operator.
  • Motor design limits air motor noise without loss of power.
  • Runs (15000-18000RPM) 18000 RPM is Standard (customer specifies speed).
  • This tool provides a platform of tool balance and power.
  • Henrytools industrial series grinders are designed to make servicing quick, easy and affordable.
  • Applications: Portable production surface grinding in foundries. Metal fabrication, Ship Building, Utilities and Tool and Die.

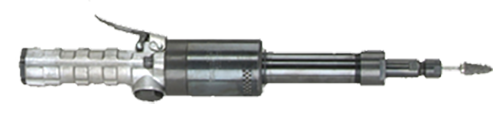

Henrytools 5102HS horizontal grinder with built in erickson collet

Model 5102HSK steel case horizontal grinder featuring an Erickson style collet chuck that can accommodate various sized inserts.( 1/4", 3/8", 1/8" ,etc.)

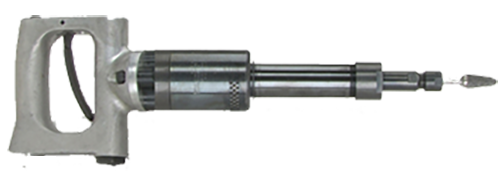

Henrytools 5102H horizontal grinder with spade handle grip

Model 5102HG steel case horizontal grinder with "Spade handle Grip" handle. Featuring an Erickson style collet chuck that can accommodate various sized inserts. (1/4", 3/8", 1/8" ,etc.)



≡

5102H Series Horizontal Grinder Specifications

5102H Horizontal Grinder Series with Erickson Collet Spindle Specifications
Model ExhaustDirection ThrottleLeverType CaseMaterial OverallLength Spindle Typeand Length BodyDiameter Working Air Consumption Weight Rated Power
5102H Side Standard Lever Alum 17.7Inch(449 mm) Erickson collet changeable inserts. 2.5 Inch(64 mm) 35 cfm(16.5 L/s) 5.9 lbs(2.7 Kg.) 1.5 H.P.(1130 W)
5102HS Side Standard Lever Steel 17.7Inch(449 mm) Erickson collet changeable inserts. 2.5 Inch(64 mm) 35 cfm(16.5 L/s) 7.2 Lb.(3.3 Kg) 1.5 H.P.(1130 W)
5102HSK Side Safety Lockout Lever Steel 17.7Inch(449 mm) Erickson collet changeable inserts. 2.5 Inch(64 mm) 35 cfm(16.5 L/s) 7.2 Lb.(3.3 Kg) 1.5 H.P.(1130 W)
5102HSG Side Spade Handle Grip Steel 17.7Inch(449 mm) Erickson collet changeable inserts. 2.5 Inch(64 mm) 35 cfm(16.5 L/s) 8.2 Lb.(3.7 Kg) 1.5 H.P.(1130 W)



Features

  • Featuring an Erickson style collet chuck to accommodate various collet insert sizes. (1/4", 3/8", 1/8" ,etc.)
  • Rugged steel housing and hardened steel motor parts.
  • An all American powerful (1.5 H.P.) motor.
  • Fully adjustable side exhaust deflector to direct air away from the operator.
  • Motor design limits air motor noise without loss of power.
  • Runs (15000-18000RPM) 18000 RPM is Standard (customer specifies speed).
  • This tool provides a platform of tool balance and power.
  • Henrytools industrial series grinders are designed to make servicing quick, easy and affordable.
  • Applications: Portable production surface grinding in foundries. Metal fabrication, Ship Building, Utilities and Tool and Die.





57H Series Belt Grinder



Industrial Benefits:

portable belt grinder 57H series

  • Shown with special belt grinding attachment.
  • Grinder is shown with the optional lockout lever throttle.
  • Features a powerful (1.5 H.P.) motor.
  • Fully adjustable side exhaust deflector to direct air away from the operator.
  • Motor design limits air motor noise without loss of power.
  • Runs 7000-15000RPM (customer specifies speed). Standard RPM is 12000RPM.
  • This tool can easily be adapted for use with a collet, guard or cone wheel adaptor.
  • Henrytools durability sets the standard industrial airtools.

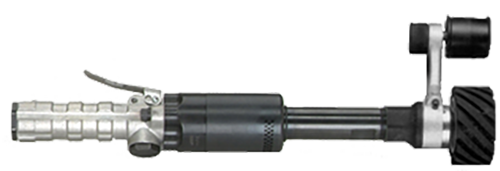

Henrytools 57HSBGA horizontal Belt Grinder pic

Model 57HSBGA Horizontal belt grinder features a belt grinding attachment. Runs 7000-15000RPM (customer specifies speed). Standard RPM is 12000RPM.



≡

57H Series Belt Grinder Specifications

57HSBGA Horizontal Belt Grinder Specifications
Model Exhaust Direction Throttle Lever Type Rated Speed Case Material Overall Length Spindle Type and Length Body Diameter Weight Rated Power
57HSBGA Side Standard Lever 7000 -15000R.P.M. Steel 18.8 Inch(478mm) 3/8-24 X 1.0 Inch(3/8-24 X 25 mm) 2.5 Inch(63.5 mm) 7.2 Lb.(3.3 Kg) 1.5 H.P1130 W
57HKSBGA Side Safety Lockout Lever 7000 -15000R.P.M. Steel 18.8 Inch(478mm) 3/8-24 X 1.0 Inch(3/8-24 X 25 mm) 2.5 Inch(63.5 mm) 7.2 Lb.(3.3 Kg) 1.5 H.P1130 W



57H Series Governed Speed Horizontal Grinder



Industrial Benefits:
  • A governed speed horizontal grinder ( 8000 - 15000RPM) with a powerful (1.5H.P.) motor.
  • Slower speeds without loss of power.
  • The 57H series are small wheel horizontal type grinders that are lightweight yet rugged.
  • Ideal for use with plug wheels, 3" and 4" grinding wheels or collet chuck work (carbide burrs, etc.).
  • Rugged steel housing.
  • Ships standard with 3/8"-24 threaded spindle. An optional 1/2-13 threaded spindle is also available.
  • Fully adjustable side exhaust deflector to direct air away from the operator.
  • Motor design limits air motor noise without loss of power..
  • Runs 7000-15000RPM (customer specifies speed).
  • Your choice of either a collet, guard or cone wheel adaptor. (Specify when ordering).
  • Henrytools durability sets our industrial airtools apart from the others.
  • The emphasis is on making tools that last and provide a platform of tool balance and power.
  • If a collet is required for your application you can request the HT-1010 (1/4" collet) or the HT-1010-3/8" (3/8" collet).





Henrytools 57H horizontal grinder with 4" guard

Model 57H Horizontal grinder Governed speed tool with a 4" Wheel Guard. (A Governed speed tool)



Henrytools 57H Horizontal grinder with collet for carbide burrs

Model 57HKS Horizontal grinder shown with Safety Lockout lever throttle. The HT-1010 collet is shown for use with carbide burrs and mounted points. (A Governed speed tool)



≡

57H Series Horizontal Grinder Specifications

57H Horizontal Grinder Series Specifications Chart
Model Throttle Lever Type Rated Speed Case Material Overall Length Spindle Type and Length Body Diameter Weight Rated Power
57HLS Standard Lever 8000 -15000R.P.M. Steel 18.8 Inch(478mm) 3/8-24 X 1.0 Inch(3/8-24 X 25 mm) 2.5 Inch(63.5 mm) 7.2 Lb.(3.3 Kg) 1.5 H.P1130 W
57HK Safety Lock Lever Throttle 8000 -15000R.P.M. Steel 18.8 Inch(478mm) 3/8-24 X 1.0 Inch(3/8-24 X 25 mm) 2.5 Inch(63.5 mm) 7.2 Lb.(3.3 Kg) 1.5 H.P1130 W
57H-13 Standard Lever 8000 -15000R.P.M. Steel 18.8 Inch(478mm) 1/2-13 x 1"(25mm)Threaded Spindle 2.5 Inch(63.5 mm) 7.2 Lb.(3.3 Kg) 1.5 H.P1130 W
57HK-13 Safety Lock Lever Throttle 8000 -15000R.P.M. Steel 18.8 Inch(478mm) 1/2-13 x 1"(25mm)Threaded Spindle 2.5 Inch(63.5 mm) 7.2 Lb.(3.3 Kg) 1.5 H.P1130 W

If a collet is required for your application you can request the HT-1010 (1/4" collet) or the HT-1010-3/8" (3/8" collet).

517H Horizontal Grinder "Governed Speed" Plug Wheel Grinders



Industrial Benefits:
  • A powerful (1.5 H.P.) horizontal grinder with a 5/8-11 threaded spindle for use with Plug wheels/Cone Wheels.
  • This tool is specifically designed for use with Plug-wheels.
  • A governed speed horizontal grinder ( 7000 - 15000RPM) (Specify Speed when ordering)
  • Slower speeds without loss of power.
  • Rugged steel housing.
  • Fully adjustable side exhaust deflector to direct air away from the operator.
  • Working Air Consumption: 35 cfm (16.5 L/S)
  • Capacity: Any Type 16, 17, 17R, 18 or 18R Cone Wheels w/ 5/8-11 Mounting (2 inch maximum)

Henrytools 517H Horizontal Grinder "Governed Speed" Plug Wheel Grinder with safety lock lever throttle

Model 517H grinder has 5/8-11 spindle standard which accommodates a cone wheel. (Plug Wheels)

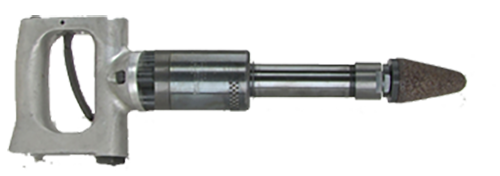

Henrytools 517H Horizontal Grinder "Governed Speed" Plug Wheel Grinder with spade handle grip.

Model 517HG steel case horizontal grinder with "Spade handle Grip" handle. Tool has the standard 5/8-11 spindle which accomodates a Plug Wheel.



≡

517H Horizontal Grinder Specifications

517H Horizontal Grinder "Governed Speed" Plug Wheel Grinders
Model Exhaust Direction Throttle Lever Type Rated Speed Case Material Overall Length Spindle Type and Length Body Diameter Weight Rated Power
517HLS Side Standard Lever 7000-15000RPM Steel 17.7 Inch(450mm) 5/8-11 X 0.9Inch(5/8-11 X 23mm) 2.5 Inch(63.5 mm) 7.2 lbs(3.3 Kg.) 1.5 H.P1130 W
517HLSK Side Safety Lockout Lever 7000-15000RPM Steel 17.7 Inch(450mm) 5/8-11 X 0.9Inch(5/8-11 X 23mm) 2.5 Inch(63.5 mm) 7.2 lbs(3.3 Kg.) 1.5 H.P1130 W
517HG Side Spade Handle 7000-15000RPM Steel   5/8-11 X 0.9Inch(5/8-11 X 23mm) 2.5 Inch(63.5 mm)   1.5 H.P1130 W



52H Series (2 H.P.) Horizontal Grinders



Industrial Benefits:
  • The Henrytool 52H Series horizontal grinders provides high power (2 H.P.) motor. provide high power-to-weight ratio in a slim tool.
  • Versatility and power make the 52-H excellent for fast metal removal and tight quarter cleaning jobs.
  • This tool is ideal for use with wire brushes, 4" and 6" type 1 wheel applications, or cone and plug wheels.
  • The 52-H series Grinders feature a high-Force Stainless Steel governor maintains maximum power under load for quick metal removal.
  • Choke-type exhaust provides quiet air motor operation.
  • Hardened steel motor parts for extended tool life.
  • Double-row bearing provides firm spindle support.
  • Model 52-HJ with stub arbor is ideal for use with cone and plug type wheels.
  • Choice of lever, lockout lever, or spade grip handle.

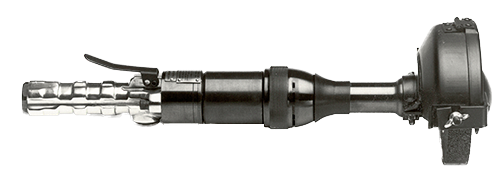

Henrytool 52H Series horizontal grinder with wheel guard

Model 52H (2 H.P.) Horizontal grinder shown with (standard 5/8-11 x 2 1/4 long spindle) and 6" Wheel guard.

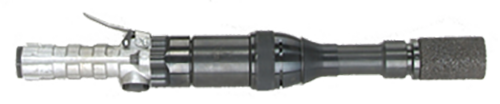

Henrytool 52Hsj Series horizontal grinder with cone wheel spindle

Model 52HSJ (2 H.P) Horizontal grinder with stub spindle for use with cone wheels. (Plug wheels)



Henrytool 52HG Series horizontal grinder with spade handle grip.

Model 52HG (2 H.P.) Horizontal Grinder with 6" guard and "spade handle grip".   (standard 5/8"-11 x 2 1/4 long spindle)



≡

52H Series (2 H.P.) Horizontal Grinders Specifications

52H Horizontal Grinder Series Models
Model Throttle LeverType Speed Weight Overall Length Spindle Air Inlet Hose Size Rated Power Working Air Consumption
52HL Standard Lever 6000, 9000 or 12,000 R.P.M 7 .5 lbs-(3.4 kg) 18.25 Inches464mm 5/8"-11 Thd. x 2 1/4 long 1/2" N.P.T 1/2" 2.0 H.P.(1.5 KW) 40 cfm(18.9 L/s)
52HK Safety Lockout Lever 6000, 9000 or 12,000 R.P.M 7 .5 lbs-(3.4 kg) 18.25 Inches464mm 5/8"-11 Thd. x 2 1/4 long 1/2" N.P.T 1/2" 2.0 H.P.(1.5 KW) 40 cfm(18.9 L/s)
52HL-13 Standard Lever 6000, 9000 or 12,000 R.P.M 7 .5 lbs-(3.4 kg) 18.25 Inches464mm 1/2"-13 Thd. x 2 1/16 long 1/2" N.P.T 1/2" 2.0 H.P.(1.5 KW) 40 cfm(18.9 L/s)
52HK-13 Safety Lockout Lever 6000, 9000 or 12,000 R.P.M 7 .5 lbs-(3.4 kg) 18.25 Inches464mm 1/2"-13 Thd. x 2 1/16 long 1/2" N.P.T 1/2" 2.0 H.P.(1.5 KW) 40 cfm(18.9 L/s)
52HSJ Standard Lever 6000, 9000 or 12,000 R.P.M 7 .5 lbs-(3.4 kg) 18.25 Inches464mm Stub spindle for use with CONE WHEELS 5/8-11 X 0.9Inch (23 mm) 1/2" N.P.T 1/2" 2.0 H.P.(1.5 KW) 40 cfm(18.9 L/s)
52HSJK Safety Lockout Lever 6000, 9000 or 12,000 R.P.M 7 .5 lbs-(3.4 kg) 18.25 Inches464mm Stub spindle for use with CONE WHEELS 5/8-11 X 0.9Inch (23 mm) 1/2" N.P.T 1/2" 2.0 H.P.(1.5 KW) 40 cfm(18.9 L/s)
52HG Spade Grip "D" Handle 6000, 9000 or 12,000 R.P.M 7 .5 lbs-(3.4 kg) 18.25 Inches464mm 5/8-11 x 2 1/4 long 1/2" N.P.T 1/2" 2.0 H.P.(1.5 KW) 40 cfm(18.9 L/s)
52HGSJ Spade Grip "D" Handle 6000, 9000 or 12,000 R.P.M 7 .5 lbs-(3.4 kg) 18.25 Inches464mm Stub spindle for use with CONE WHEELS 5/8-11 X 0.9Inch (23 mm) 1/2" N.P.T 1/2" 2.0 H.P.(1.5 KW) 40 cfm(18.9 L/s)



Features

  • The Henrytool 52H Series horizontal grinders provides high power (2 H.P.) motor. provide high power-to-weight ratio in a slim tool.
  • Versatility and power make the 52-H excellent for fast metal removal and tight quarter cleaning jobs.
  • This tool is ideal for use with wire brushes, 4" and 6" type 1 wheel applications, or cone and plug wheels.
  • The 52-H series Grinders feature a high-Force Stainless Steel governor maintains maximum power under load for quick metal removal.
  • Choke-type exhaust provides quiet air motor operation.
  • Hardened steel motor parts for extended tool life.
  • Double-row bearing provides firm spindle support.
  • Model 52-HJ with stub arbor is ideal for use with cone and plug type wheels.
  • Choice of lever, lockout lever, or spade grip handle.



56H Series (3 H.P.) Horizontal Grinders



Industrial Benefits:
  • The 56H Horizontal Grinder powerful (3 H.P.) motor that can perform material removal and finishing work quickly and efficiently.
  • Corrosion resistant stainless steel governor keeps the tool at a steady R.P.M. while maintaining maximum power.
  • Heavy-duty double row bearings provide maximum spindle support.
  • Common motor parts with 56V Series reduces spare parts inventory.
  • Internal muffler built into the motor housing assures a quiet operating tool without loss of power.
  • Front seal in bearing cap keeps dirt from entering the bearings.
  • Choice of a standard lever throttle, lock-out lever throttle or spade grip throttle.
  • Tool is adaptable for use with 6" or 8" type 1 straight grinding wheels, cone wheels, and wire brushes.
  • * Please add the letters "CW" to end of model number to denote a (cone wheel adaptor).
    Note:The entire horizontal grinder series can be ordered with the spade handle grip.
  • Recommended working air pressure: 90 p.s.i. Working Air consumption: 60 cfm (28.3 L/s) Max
    Hose Size Recommendation: 1/2" (13 mm)
Henrytools 56H horizontal grinder (4HP) with 6 inch wheel guard.

Model 56HK (3 H.P) motor Horizontal grinder with Safety Lockout Lever throttle and 6" wheel guard for use with grinding wheels. (Runs 6000RPM Standard)

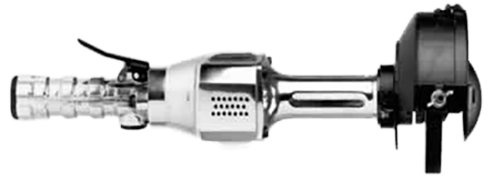

Henrytools 56H horizontal grinder (4HP) with 8 inch wheel guard.

Model 56H Horizontal grinder with  (3 H.P) motor with Standard Lever Throttle and 8" wheel guard for use with grinding wheels. (Runs 6000RPM Standard)

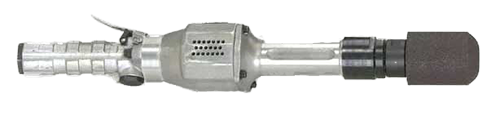

Henrytools 56H-CW horizontal grinder (4HP) Cone Wheel Adaptor for plug wheels

Model 56H-CW Horizontal grinder with (3 H.P) motor (Runs 6000RPM Standard) shown with standard lever throttle and Cone wheel adaptor.

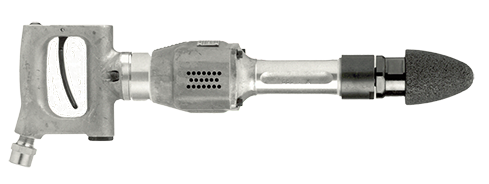

Model 56HG-CW Horizontal Grinder for Cone Wheels

Model 56HG-CW  Horizontal Cone Wheel grinder  (3 H.P) motor pictured with Spade handle Grip  and Cone Wheel  adaptor.  (Runs 6000RPM Standard)(Cone Wheel sold separately)



Henrytools 56HG horizontal grinder (4HP) with 6 inch wheel guard and Spade Handle Grip throttle.

56HG Horizontal Grinder with a (3 H.P) motor. Pictured with Spade Handle Grip and 6" Guard for grinding wheels.  (Runs 6000RPM Standard) (Choice of either a 6" or 8" Guard) (See specification chart below)



≡

56H Series Horizontal Grinder Specifications

56H Series Horizontal Grinder Specifications
Model Throttle Type Speed Spindle Type Overall Length Side to Center Distance Rated Power Inlet size Hose Size Guard Size Working Air Consumption
56HL-601 Standard Lever 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 X 1.9Inch (48 mm) 21.7 Inch(550 mm) 1 1/4"32 mm 3.0 H.P(2250 W) 1/2" N.P.T. 1/2" 6" Guard 60 cfm (28.3 L/s) Max
56HK-601 Safety Lockout Lever 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 X 1.9Inch (48 mm) 21.7 Inch(550 mm) 1 1/4"32 mm 3.0 H.P(2250 W) 1/2" N.P.T. 1/2" 6" Guard 60 cfm (28.3 L/s) Max
56HL-801 Standard Lever 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 X 1.9Inch (48 mm) 21.7 Inch(550 mm) 1 1/4"32 mm 3.0 H.P(2250 W) 1/2" N.P.T. 1/2" 8" Guard 60 cfm (28.3 L/s) Max
56HK-801 Safety Lockout Lever 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 X 1.9Inch (48 mm) 21.7 Inch(550 mm) 1 1/4"32 mm 3.0 H.P(2250 W) 1/2" N.P.T. 1/2" 8" Guard 60 cfm (28.3 L/s) Max
56HG-601 Spade Handle "D" Grip 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 X 1.9Inch (48 mm) 21.7 Inch(550 mm) 1 1/4"32 mm 3.0 H.P(2250 W) 1/2" N.P.T. 1/2" 6" Guard 60 cfm (28.3 L/s) Max
56HG-801 Spade Handle "D" Grip 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 X 1.9Inch (48 mm) 21.7 Inch(550 mm) 1 1/4"32 mm 3.0 H.P(2250 W) 1/2" N.P.T. 1/2" 8" Guard 60 cfm (28.3 L/s) Max
56HG-CW Spade Handle "D" Grip 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 X 0.9Inch (23 mm) Cone Wheel Spindle 21.7 Inch(550 mm) 1 1/4"32 mm 3.0 H.P(2250 W) 1/2" N.P.T. 1/2" Cone Wheel Spindle 60 cfm (28.3 L/s) Max
56H-CW Standard Lever 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 X 0.9Inch (23 mm) Cone Wheel Spindle 21.7 Inch(550 mm) 1 1/4"32 mm 3.0 H.P(2250 W) 1/2" N.P.T. 1/2" Cone Wheel Spindle 60 cfm (28.3 L/s) Max
56HK-CW Safety Lockout Lever 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 X 0.9Inch (23 mm) Cone Wheel Spindle 21.7 Inch(550 mm) 1 1/4"32 mm 3.0 H.P(2250 W) 1/2" N.P.T. 1/2" Cone Wheel Spindle 60 cfm (28.3 L/s) Max




  • * Please add the letters "CW" to end of model number to denote a (cone wheel adaptor).
    Note:The entire horizontal grinder series can be ordered with the spade handle grip.

Features and Accessories

  • The 56H Horizontal Grinder powerful (3 H.P.) motor that can perform material removal and finishing work quickly and efficiently.
  • Corrosion resistant stainless steel governor keeps the tool at a steady R.P.M. while maintaining maximum power.
  • Heavy-duty double row bearings provide maximum spindle support.
  • Common motor parts with 56V Series reduces spare parts inventory.
  • Internal muffler built into the motor housing assures a quiet operating tool without loss of power.
  • Front seal in bearing cap keeps dirt from entering the bearings.
  • Choice of a standard lever throttle, lock-out lever throttle or spade grip throttle.
  • Tool is adaptable for use with 6" or 8" type 1 straight grinding wheels, cone wheels, and wire brushes.
  • * Please add the letters "CW" to end of model number to denote a (cone wheel adaptor).
    Note:The entire horizontal grinder series can be ordered with the spade handle grip.





56H PLUS Extended Spindle Series (3 H.P.) Horizontal Grinders



Industrial Benefits:
  • The 56H PLUS Extended Spindle Horizontal Grinder a powerful (3 H.P.) solution for mounting Flap wheels on a stable platform.
  • There are 2 Spindle lengths available  ( 2" extended or 3" extended spindles).
  • Heavy-duty double row bearings provide maximum spindle support.
  • Corrosion resistant stainless steel governor keeps the tool at a steady R.P.M. while maintaining maximum power.
  • Common motor parts with 56V and 56H Series reduces spare parts inventory.
  • Internal muffler built into the motor housing assures a quiet operating tool without loss of power.
  • Choice of a standard lever throttle, lock-out lever throttle or spade grip throttle.
  • Recommended working air pressure: 90 p.s.i. Working Air consumption: 60 cfm (28.3 L/s) Max
    Hose Size Recommendation: 1/2" (13 mm)
  • - For a tool with a 2" longer spindle, add +2 to end of model number. The total spindle projection is now 3 13/16".
  • - For a tool with a 3" longer spindle, add +3 to end of model number. The total spindle projection is now 4 13/16".

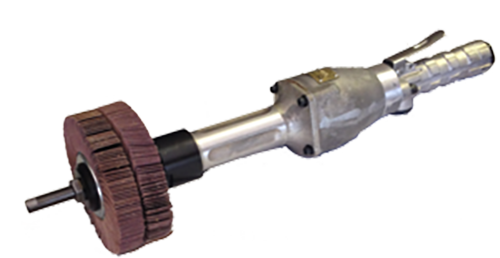

Henrytools 56H PLUS 2 inch Extended Spindle Series (3 H.P.) Horizontal Grinder for Large Flap wheels

Model 56H+2" (3 H.P.) motor Horizontal grinder used for Flap wheels. (Note: Special extended length spindle.) (shown with "Standard Lever Handle ") (Plus 2" Extended Spindle Length.)(The total spindle projection is now 3 13/16".)

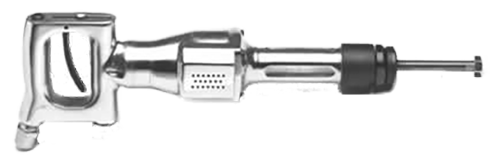

Henrytools 56H PLUS 3 inch Extended Spindle Series (3 H.P.) Horizontal Grinder for Large Flap wheels

Model 56HG+3" (3 H.P.) motor Horizontal grinder used for Flap wheels. (Note: Special extended Spindle) This tool has a Spade Grip style handle and a Plus 3" extended length spindle. (The total spindle projection is 4 13/16".)



≡

56H PLUS Extended Spindle Series Specifications

56H PLUS Spindle length Series Horizontal Grinder Specifications
Model Throttle Type Speed Spindle Type Overall Length Side to Center Distance Weight Rated Power Inlet size Hose Size Working Air Consumption
56HK+2" Safety Lock Throttle 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 / 3.77 inch(96 mm)Projection 21.7 Inch(550 mm) 1 1/4"32 mm 10.5 Lb.(4.8 Kg) 3.0 H.P(2250 W) 1/2" N.P.T. 1/2" 60 cfm (28.3 L/s) Max
56H+2" Standard Lever 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 / 3.77 inch(96 mm)Projection 21.7 Inch(550 mm) 1 1/4"32 mm 10.5 Lb.(4.8 Kg) 3.0 H.P(2250 W) 1/2" N.P.T. 1/2" 60 cfm (28.3 L/s) Max
56HK+3" Safety Lock Throttle 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 / 4 13/16" Projection 22.7 inch 1 1/4"32 mm 10.5 Lb.(4.8 Kg) 3.0 H.P(2250 W) 1/2" N.P.T. 1/2" 60 cfm (28.3 L/s) Max
56HG+2" D Handle Grip 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 / 3.77 inch(96 mm)Projection 21.7 Inch(550 mm) 1 1/4"32 mm 10.5 Lb.(4.8 Kg) 3.0 H.P(2250 W) 1/2" N.P.T. 1/2" 60 cfm (28.3 L/s) Max
56HG+3" D Handle Grip 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 / 4 13/16" Projection 21.7 Inch(550 mm) 1 1/4"32 mm 10.5 Lb.(4.8 Kg) 3.0 H.P(2250 W) 1/2" N.P.T. 1/2" 60 cfm (28.3 L/s) Max



- For a tool with a 2" longer spindle, add +2 to end of model number. The total spindle projection is now 3 13/16".

- For a tool with a 3" longer spindle, add +3 to end of model number. The total spindle projection is now 4 13/16".

Features and Accessories

  • The 56H PLUS Extended Spindle Horizontal Grinder a powerful (3 H.P.) solution for mounting Flap wheels on a stable platform.
  • There are 2 Spindle lengths available  ( 2" extended or 3" extended spindles).
  • Heavy-duty double row bearings provide maximum spindle support.
  • Corrosion resistant stainless steel governor keeps the tool at a steady R.P.M. while maintaining maximum power.
  • Common motor parts with 56V and 56H Series reduces spare parts inventory.
  • Internal muffler built into the motor housing assures a quiet operating tool without loss of power.
  • Choice of a standard lever throttle, lock-out lever throttle or spade grip throttle.
  • Recommended working air pressure: 90 p.s.i. Working Air consumption: 60 cfm (28.3 L/s) Max
    Hose Size Recommendation: 1/2" (13 mm)
  • - For a tool with a 2" longer spindle, add +2 to end of model number. The total spindle projection is now 3 13/16".
  • - For a tool with a 3" longer spindle, add +3 to end of model number. The total spindle projection is now 4 13/16".



65H Series (4 H.P.) Horizontal Grinders



Industrial Benefits:
  • The 65H Horizontal Grinder with a    SUPER powerful (4 H.P.) motor that can perform material removal and finishing work quickly and efficiently.
  • Corrosion resistant stainless steel governor keeps the tool at a steady R.P.M. while maintaining maximum power.
  • Heavy-duty double row bearings provide maximum spindle support.
  • Common motor parts with 65V Series motors to reduce spare parts inventory.
  • Internal muffler built into the motor housing assures a quiet operating tool without loss of power.
  • Front seal in bearing cap keeps dirt from entering the bearings.
  • Choice of a standard lever throttle, lock-out lever throttle or spade grip throttle.
  • Tool is adaptable for use with 6" or 8" type 1 straight grinding wheels, cone wheels, and wire brushes.
  • * Please add the letters "CW" to end of model number to denote a (cone wheel adaptor).
    Note:The entire horizontal grinder series can be ordered with the spade handle grip.
  • Recommended working air pressure: 90 p.s.i. Working Air consumption: 75 cfm (35.3 L/s) Max
    Hose Size Recommendation: 1/2" (13 mm)



Henrytools Model 65H horizontal Grinder with 6" wheel guard

Model 65HK  Horizontal Grinder with (4 H.P) motor.  Shown with safety lockout lever  throttle and 6" wheel guard for use with grinding wheels.



Henrytools Model 65H horizontal Grinder(4 HP) with 8" wheel guard

Model 65HK Horizontal Grinder with (4 H.P) motor. Shown with safety lockout lever throttle and 8" wheel guard for use with grinding wheels.



Henrytools Model 65H horizontal Grinder(4 HP) with cone wheel adaptor.

Model 65H-CW (4 H.P) motor Horizontal grinder with Cone wheel adaptor. (shown with standard throttle lever) (6000 RPM is standard)



65HG-CW Horizontal Grinder (4 H.P.) Cone Wheel Grinder

Model 65HG-CW Horizontal Cone Wheel grinder (4 H.P) motor pictured with Spade handle Grip and Cone Wheel adaptor. (Runs 6000RPM Standard)(Cone Wheel sold separately)

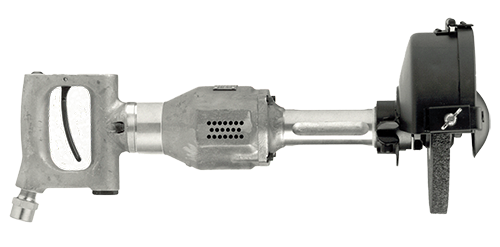

Henrytools Model 65HG horizontal Grinder(4 HP) with 8" wheel Guard. With Spade Handle grip.

65HG Horizontal Grinder with a (4 H.P) motor. Pictured with Spade Handle Grip and 6" Guard for use with grinding wheels. (Runs 6000RPM Standard) (Choice of either a 6" or 8" Guard) (See specification chart below)



≡

65H Horizontal Grinders Specifications

65H Series Horizontal Grinder Specifications Chart
Model Throttle Type Speed Spindle Type Overall Length Side to Center Distance Weight Guard Size Rated Power
65HL-601 Standard Lever 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 X 1.9Inch (48 mm) 22.32 Inch(566.9 mm) 1 1/4"32 mm 14.1 Lb.(6.4 Kg) 6" Guard 4.0 H.P.(3000 W)
65HK-601 Safety Lockout Lever 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 X 1.9Inch (48 mm) 22.32 Inch(566.9 mm) 1 1/4"32 mm 14.1 Lb.(6.4 Kg) 6" Guard 4.0 H.P.(3000 W)
65HL-801 Standard Lever 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 X 1.9Inch (48 mm) 22.32 Inch(566.9 mm) 1 1/4"32 mm 14.1 Lb.(6.4 Kg) 8" Guard 4.0 H.P.(3000 W)
65HL-CW Standard Lever 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 X 0.9Inch (23 mm) Cone Wheel Spindle 22.32 Inch(566.9 mm) 1 1/4"32 mm 14.1 Lb.(6.4 Kg) Cone Wheel Spindle 4.0 H.P.(3000 W)
65HK-CW Safety Lockout Lever 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 X 0.9Inch (23 mm) Cone Wheel Spindle 22.32 Inch(566.9 mm) 1 1/4"32 mm 14.1 Lb.(6.4 Kg) Cone Wheel Spindle 4.0 H.P.(3000 W)
65HG-601 Spade Handle "D" Grip 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 X 1.9Inch (48 mm) 22.32 Inch(566.9 mm) 1 1/4"32 mm 14.1 Lb.(6.4 Kg) 6" Guard 4.0 H.P.(3000 W)
65HG-801 Spade Handle "D" Grip 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 X 1.9Inch (48 mm) 22.32 Inch(566.9 mm) 1 1/4"32 mm 14.1 Lb.(6.4 Kg) 8" Guard 4.0 H.P.(3000 W)
65HG-CW Spade Handle "D" Grip 4500 to 8000 RPM(6000 rpm is standard) 5/8-11 X 0.9Inch (23 mm) Cone Wheel Spindle 22.32 Inch(566.9 mm) 1 1/4"32 mm 14.1 Lb.(6.4 Kg) Cone Wheel Spindle 4.0 H.P.(3000 W)




Features

  • The 65H Horizontal Grinder super powerful (4 H.P.) motor that can perform material removal and finishing work quickly and efficiently.
  • Corrosion resistant stainless steel governor keeps the tool at a steady R.P.M. while maintaining maximum power.
  • Heavy-duty double row bearings provide maximum spindle support.
  • Common motor parts with 65V Series motors to reduce spare parts inventory.
  • Internal muffler built into the motor housing assures a quiet operating tool without loss of power.
  • Front seal in bearing cap keeps dirt from entering the bearings.
  • Choice of a standard lever throttle, lock-out lever throttle or spade grip throttle.
  • Tool is adaptable for use with 6" or 8" type 1 straight grinding wheels, cone wheels, and wire brushes.
  • * Please add the letters "CW" to end of model number to denote a (cone wheel adaptor).
    Note:The entire horizontal grinder series can be ordered with the spade handle grip.
  • Recommended working air pressure: 90 p.s.i. Working Air consumption: 75 cfm (35.3 L/s) Max
    Hose Size Recommendation: 1/2" (13 mm)



65H PLUS Extended Spindle Series (4 H.P.) Horizontal Grinders



Industrial Benefits:
  • The 56H PLUS Extended Spindle Horizontal Grinder a powerful (3 H.P.) solution for mounting Flap wheels on a stable platform.
  • There are 2 Spindle lengths available  ( 2" extended or 3" extended spindles).
  • Heavy-duty double row bearings provide maximum spindle support.
  • Corrosion resistant stainless steel governor keeps the tool at a steady R.P.M. while maintaining maximum power.
  • Common motor parts with 56V and 56H Series reduces spare parts inventory.
  • Internal muffler built into the motor housing assures a quiet operating tool without loss of power.
  • Choice of a standard lever throttle, lock-out lever throttle or spade grip throttle.
  • Recommended working air pressure: 90 p.s.i. Working Air consumption: 75 cfm (35.3 L/s) Max
    Hose Size Recommendation: 1/2" (13 mm)
  • - For a tool with a 2" longer spindle, add +2 to end of model number. The total spindle projection is now 3 13/16".
  • - For a tool with a 3" longer spindle, add +3 to end of model number. The total spindle projection is now 4 13/16".



Henrytools Model 65H+2 inch Horizontal Grinder for Flap wheels.

Model 65H+2" (4 H.P.) motor Horizontal grinder used for Flap wheels. (Note: Special extended length spindle.) (shown with "Standard Lever Handle ") (Plus 2" Extended Spindle Length.)(A Plus 3" extended length spindle is also availabel)(See specification chart below for all the models available)



Henrytools Model 65H+3 inch extended spindle Horizontal Grinder for Flap wheels.

Model 65HG+3" (3 H.P.) motor Horizontal grinder used for Flap wheels. (Note: Special extended Spindle) This tool has a Spade Handle "D" Grip style handle and a plus 3" extended length spindle. (See specification chart below for all the models available)



≡

65H PLUS Extended Spindle Series (4 H.P.) Horizontal Grinders

65H Horizontal Grinders PLUS Extended Spindle Series (4 H.P.) Specifications
Model Throttle Type Speed Spindle Type Overall Length Side to Center Distance Weight Rated Power
65H+2" Standard Lever 4500 to 8000 RPM(6000 rpm is standard) 3.77 inch(96 mm)Projection 3.77 inch(96 mm)SpindleProjection 1 1/4"32 mm 14.1 Lb.(6.4 Kg) 4.0 H.P.(3000 W)
65HK+2" Safety Lock Throttle Lever 4500 to 8000 RPM(6000 rpm is standard) 3.77 inch(96 mm)Projection 3.77 inch(96 mm)SpindleProjection 1 1/4"32 mm 14.1 Lb.(6.4 Kg) 4.0 H.P.(3000 W)
65H+3" Standard Lever 4500 to 8000 RPM(6000 rpm is standard) 4.77 Inch(121 mm)Projection 4.77 Inch(121 mm)SpindleProjection 1 1/4"32 mm 14.1 Lb.(6.4 Kg) 4.0 H.P.(3000 W)
65HK+3" Safety Lock Throttle Lever 4500 to 8000 RPM(6000 rpm is standard) 4.77 Inch(121 mm)Projection 4.77 Inch(121 mm)SpindleProjection 1 1/4"32 mm 14.1 Lb.(6.4 Kg) 4.0 H.P.(3000 W)
65HG+2" Spade Handle "D" Grip 4500 to 8000 RPM(6000 rpm is standard) 3.77 inch(96 mm)Projection 4.77 Inch(121 mm)SpindleProjection 1 1/4"32 mm 14.1 Lb.(6.4 Kg) 4.0 H.P.(3000 W)
65HG+3" Spade Handle "D" Grip 4500 to 8000 RPM(6000 rpm is standard) 4.77 Inch(121 mm)Projection 4.77 Inch(121 mm)SpindleProjection 1 1/4"32 mm 14.1 Lb.(6.4 Kg) 4.0 H.P.(3000 W)



Features and Accessories

  • The 56H PLUS Extended Spindle Horizontal Grinder a powerful (3 H.P.) solution for mounting Flap wheels on a stable platform.
  • There are 2 Spindle lengths available  ( 2" extended or 3" extended spindles).
  • Heavy-duty double row bearings provide maximum spindle support.
  • Corrosion resistant stainless steel governor keeps the tool at a steady R.P.M. while maintaining maximum power.
  • Common motor parts with 56V and 56H Series reduces spare parts inventory.
  • Internal muffler built into the motor housing assures a quiet operating tool without loss of power.
  • Choice of a standard lever throttle, lock-out lever throttle or spade grip throttle.
  • Recommended working air pressure: 90 p.s.i. Working Air consumption: 75 cfm (35.3 L/s) Max
    Hose Size Recommendation: 1/2" (13 mm)

  • - For a tool with a 2" longer spindle, add +2 to end of model number. The total spindle projection is now 3 13/16".

    - For a tool with a 3" longer spindle, add +3 to end of model number. The total spindle projection is now 4 13/16".







≡MENU
