Die Grinders Page...

Henrytool die grinder applications include medium and heavy-duty grinding with straight, cone wheels, wire brushes and roll-type abrasives; and heavy-duty sanding and polishing.

Die Grinders Page

Lightweight & ergonomic. All of the die grinders listed on this page are i ndustrial die grinders. Industrial grade durability up to 800-2,000 hours between maintenance intervals. Operator comfort for handling tools comfortably. High precision tools featuring easy maintenance.

Advanced Airtool Design...

The following models are enhanced for use in an industrial environment:

Die Grinders

0.3 Horsepower

0.9 Horsepower

1.2 Horsepower

Henrytools die grinders category photo

20G Series Pencil Grinder



Industrial Benefits:
  • The perfect tool for cleaning and polishing dies, porting and polishing engines, de-burring a casting.  This pencil grinder can be used anywhere carbide burrs are used for delicate material removal.
  • 2 models to choose from (Side exhaust or Front exhaust)
  • Runs 60,000RPM
  • Rated Horsepower (0.1 H.P.75 W)
  • Alloy steel case that is resistant to rust increases durability and performance.



Henrytools model 20GM industrial pencil grinder

Model 20-GM with SIDE Exhaust pencil grinder is the world industrial standard in pencil grinding over the past 30 years.(60,000 RPM)

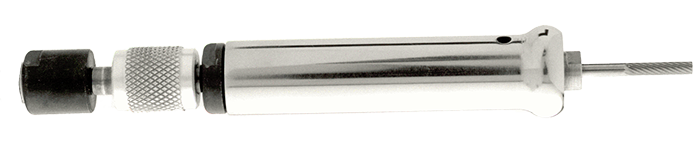

Henrytools model 20G industrial pencil grinder

Model 20-G pencil grinder with FRONT Exhaust (60,000 RPM).



20G Series die grinder with air hose attached.

Model 20-G pencil grinder pictured with optional air hose.



The Henrytools 20G pencil grinder kit.

Optional: PENCIL DIE GRINDER KIT This kit includes: (1) 20-G or 20-G-M(1) 3/16" dia. x 5' long hose.(4) 1/8" carbide burrs (Cylindrical, plainTree, PointBall point, Tapered point(1) heavy-duty case(1) Air screen..



20G Series Pencil Grinder Specifications
Model Exhaust Location Throttle Type Collet Size Weight Length Speed Dia Inlet Size Hose Size Rated Power
20-G Side Push-Pull Sleeve 1/8" 4oz..11 kg 4.87 Inch123.7 mm 60,000RPM .656"16.6mm 1/8" N.P.T 1/4"(6mm) 0.1 H.P.75 W
20-GM Front Push-Pull Sleeve 1/8" 4oz..11 kg 4.93 Inch125.2 mm 60,000RPM .656"16.6mm 1/8" N.P.T 1/4"(6mm) 0.1 H.P.75 W



Carbide burrs chart
Part No. Description Shank Size/ Desc.
530198 Taper Tapered carbide burr
530200 Tree Tree shaped carbide burr
530202 Ball Ball shaped carbide burr
530204 Cylindrical Plain Cylindrical plain carbide bit



40G Series Die Grinders (0.9 H.P)

Industrial Benefits:
  • The Henrytools 40GL Series die grinder provide for intensive grinding, contouring, deburring, and cleaning needs with carbide burrs, mounted points, abrasive wheels and flap wheels.
  • Built-in 1/4" collet chuck can accommodate various mounted accessories.
  • Powerful (0.9 HP) Motor
  • Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)
  • Lower-cost high quality American made tool.
  • Available in either an aluminum or rugged steel case.
  • Larger diameter housing fits in the palm of your hand.
  • Hardened steel motor parts for extended tool life..
  • Adjustable side exhaust deflector.
  • Unitized motor provides easy maintenance.

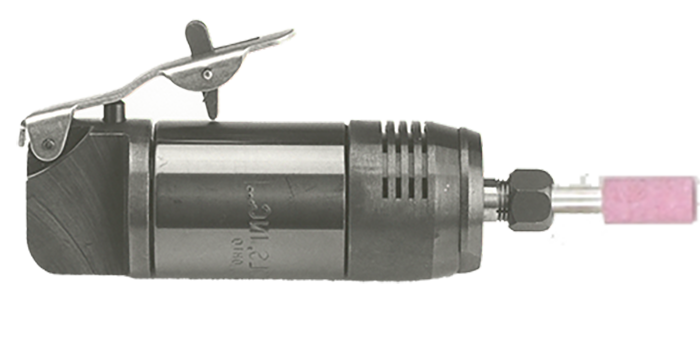

Henrytools model 40GLS Die grinder with steel case

Model 40GLSK shown with thick and rugged steel case.  Pictured with a safety lockout lever throttle. Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)

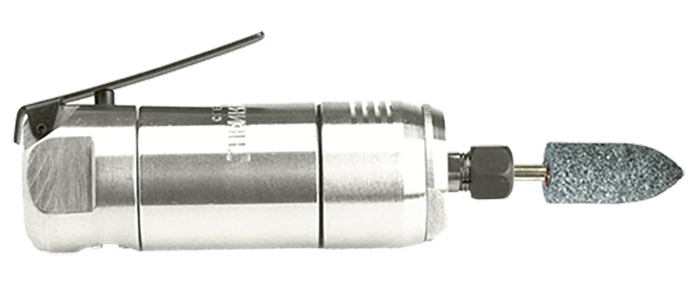

Model 40GL Aluminum pneumatic die grinder

Model 40GL shown with a thick aluminum case and standard lever throttle.  Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)





40AG Series Die Grinder Specifications chart.
Model Lever Type Case Material Exhaust Location Weight
40AG Standard Lever Alum Side 1.5 Lb. (0.7_kg)
40AGS Standard Lever Steel Side 1.9 lb0.9 Kg
40AGK Safety Lockout Lever Alum Side 1.5 Lb. (0.7 Kg)
40AGSK Safety Lockout Lever Steel Side 1.9 lb0.9 Kg



40AG Series Die Grinder Specifications chart.
Model Speed Overall Length Spindle Type CaseDiameter InletSize Power
40AG 18000RPM22000RPM 5.80_inch(147.3 mm) 1/4" collet (built-in) 1.62 Inch(41.1 mm) 3/8" .9 H.P675 W
40AGS 18000RPM22000RPM 5.80 Inch(147.3 mm) 1/4" collet (built-in) 1.62 Inch(41.1 mm) 3/8" .9 H.P675 W
40AGK 18000RPM22000RPM 5.80 Inch(147.3 mm) 1/4" collet (built-in) 1.62 Inch(41.1 mm) 3/8" .9 H.P675 W
40AGSK 18000RPM22000RPM 5.80 Inch(147.3 mm) 1/4" collet (built-in) 1.62 Inch(41.1 mm) 3/8" .9 H.P675 W





40G Extended Length Spindle Die Grinder Series

Industrial Benefits:
  • The Henrytools 40GL Extended Spindle Series die grinder provide for intensive grinding, contouring, deburring, and cleaning needs with carbide burrs, mounted points, abrasive wheels and flap wheels.
  • Extended length spindles +3" or +6" for grinding in otherwise inaccessible areas.
  • Powerful (0.9 HP) Motor
  • Tool runs between 18000RPM -22000RPM.
  • (Specify speed when ordering.)
  • Made in America.
  • Capacity:
  • Burrs/Mounted Stones of shank size 1/4 inch
  • Working Air Consumption: 25 CFM (11.8 L/s)
    Recommended working air pressure: 90 p.s.i.
  • *Tool is not designed for type 1 or 27 grinding wheels.
    Please view the other Henrytool model grinders that can accommodate type1 or 27 grinding wheel applications.

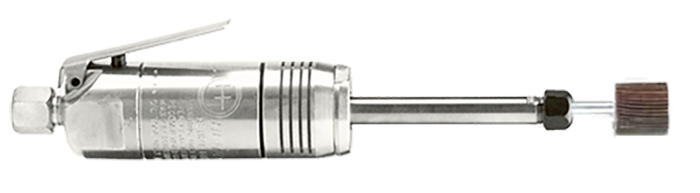

Henrytools 40GL+3" extended length spindle pneumatic die grinder with aluminum case.

Model 40GL+3" extended reach shaft die grinder. (shown with Aluminum case), Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)

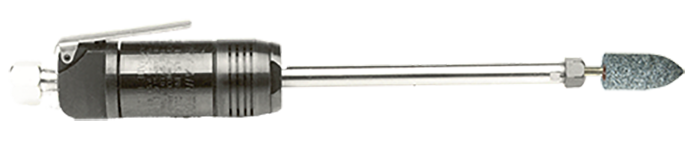

Henrytools model 40GLS+6" extended length spindle pneumatic die grinder.

40GLS+6" Steel cased extended reach shaft die grinder. (shown with Steel case) Tool runs between 18000RPM -22000RPM.  (Specify speed when ordering.)





40G Plus Extended Spindle Specifications chart
Model Case Material Exhaust Location Weight Speed
40G+3 Alum Side 1.5 lb0.7 Kg 18000RPM22000RPM
40GS+3 Steel Side 2.0 lb0.9 Kg 18000RPM22000RPM
40G+6 Alum Side 1.7 lb0.8 Kg 18000RPM22000RPM
40GLS+6 Steel Side 2.1 lb1.0 Kg 18000RPM22000RPM



40G Plus Extended Spindle Specifications chart
Overall Length Spindle Type CaseDiameter InletSize Power
8.8 Inch224 MM 1/4" collet (built-in)+3 inches length 1 3/4"44 mm 3/8" .9 H.P675 W
8.8 Inch224 MM 1/4" collet (built-in)+3 inches length 1 3/4"44 mm 3/8" .9 H.P675 W
11.9 inch303 mm 1/4" collet (built-in)+6 inches length 1 3/4"44 mm 3/8" .9 H.P675 W
11.9 inch303 mm 1/4" collet (built-in)+6 inches length 1 3/4"44 mm 3/8" .9 H.P675 W



40GP Pistol Grinders

Industrial Benefits:
  • The Henrytool 40GP grinder provides a pistol grip handle for general grinding, contouring, deburring, and cleaning needs with carbide burrs, mounted points, abrasive wheels and flap wheels.
  • Powerful (0.9 HP) Motor
  • Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)
  • Hardened steel motor parts.
  • Adjustable side exhaust deflector.
  • Unitized motor provides easy maintenance.
  • Collet chuck and spindle models accommodate various mounted accessories.
  • Extended Length spindles +3" or +6" available upon request.
  • Available with either an aluminum or steel exhaust Deflector.
  • Capacity: Burrs/Mounted Stones of shank size 1/4 inch.

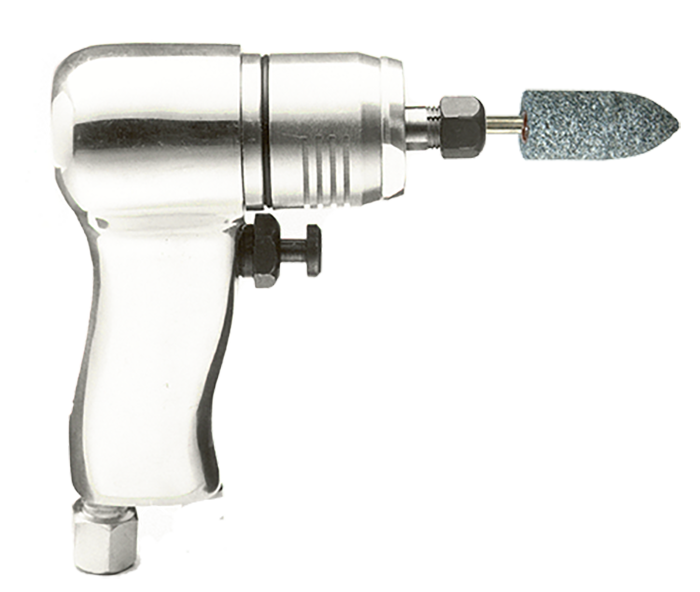

Henrytools Model 40GP Pistol type pneumatic die grinder.

Model 40GP Pistol grinder with 1/4" built-in collet for use with carbide burrs. Pistol handle for general grinding. Extended Length spindles +3" or +6" available upon request.









40GP Pistol Grinder Specifications Chart
Model Case Material Exhaust Location Weight Speed Spindle Type CaseDiameter InletSize Power
40GP Aluminum Side 1.75 lbs0.8kg 18000RPM 1/4" collet (built-in) 1 3/4"44 mm 1/4"NPT .9 H.P./675 W
41GP Aluminum Side 1.75 lbs0.8kg 18000RPM 3/8"-24 Spindle thread. 1 3/4"44 mm Spindle 3/8"-24 Thread. .9 H.P.675 W



4125AG Series Die Grinders

Industrial Benefits:
  • The powerful and lightweight 4125AG Series Die grinders are some of the most popular grinders in american foundries.
  • Powerful (0.9 HP) Motor
  • Available in either an aluminum or rugged steel case.
  • Built-in 1/4" collet chuck can accommodate various mounted accessories.
  • Adjustable SIDE exhaust deflector.
  • Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)
  • Small diameter housing fits in the palm of your hand
  • One-Piece motor case for a comfortable grip.
  • Hardened steel motor parts for extended tool life.
  • Unitized motor provides easy maintenance.
  • Capacity: Burrs/Mounted Stones of shank size 1/4 inch.

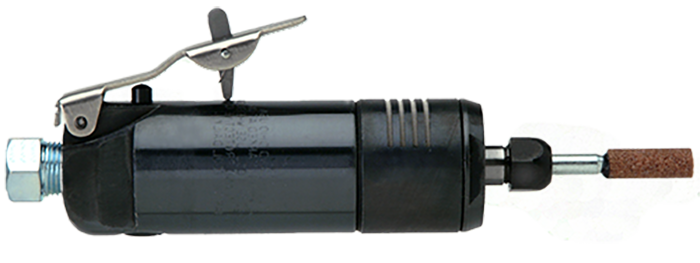

Model 4125AGLSK pneumatic die grinder

4125AGLSK Die grinder featuring an internal 1/4" collet shaft. Pictured with a STEEL (one-piece) case and Safety Lockout lever throttle. (Pictured with grinding stone not included). Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)

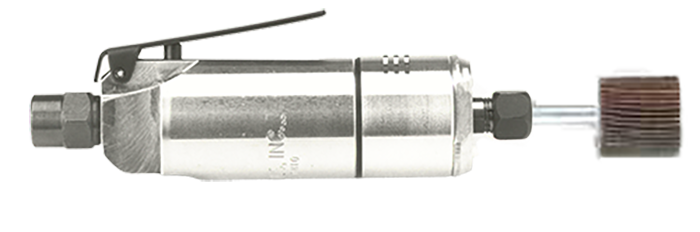

Model 4125AG Pneumatic die grinder with flap wheel.

4125AGL Die grinder with a light weight (one-piece) aluminum case making this tool super easy to maneuver. Tool features an internal 1/4" collet shaft for use with common carbide burrs and mounted stones. Pictured with standard lever throttle. Slim profile is great for operators with smaller hands.







4125AG Die Grinder Series Specifications Chart
Model Lever Type Case Matl. EXH Location Weight Speed
4125AGL Standard Lever Alum Side 1.5 Lb. (0.7_kg) 18000RPM22000RPM
4125AGLS Standard Lever Steel Side 1.9 lb0.9 Kg 18000RPM22000RPM
4125AGLK Safety Lockout Lever Alum Side 1.5 Lb. (0.7 Kg) 18000RPM22000RPM
4125AGLSK Safety Lockout Lever Steel Side 1.9 lb0.9 Kg 18000RPM22000RPM

Additional Specifications are below.

4125AG Die Grinder ADDITIONAL Specifications
Model Overall Length Spindle Type CaseDiameter InletSize Power
4125AGL 5.80_inch(147.3 mm) 1/4" collet (built-in) 1.62 Inch(41.1 mm) 3/8" .9 H.P675 W
4125AGLS 5.80 Inch(147.3 mm) 1/4" collet (built-in) 1.62 Inch(41.1 mm) 3/8" .9 H.P675 W
4125AGLK 5.80 Inch(147.3 mm) 1/4" collet (built-in) 1.62 Inch(41.1 mm) 3/8" .9 H.P675 W
4125AGLSK 5.80 Inch(147.3 mm) 1/4" collet (built-in) 1.62 Inch(41.1 mm) 3/8" .9 H.P675 W



4121G Series Erickson Style Collet Grinder

Industrial Benefits:
  • Powerful (0.9 HP) Motor
  • Adjustable side exhaust deflector.
  • Featuring an Erickson Style collet so different sized collet inserts can be used.
  • Three piece Erickson collet can accommodate insert sizes ranging from 1/8", 1/4", 5/16", 3/8".
  • The tool ships standard with a 1/4" collet insert.
  • Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)
    Hardened steel motor parts.
  • Unitized motor provides easy maintenance.
  • Available in either an aluminum or steel housing.
  • Unitized motor provides easy maintenance.
  • Capacity:
  • The Henrytool 4121 Series die grinder provide for extensive grinding, contouring, deburring, and cleaning needs with carbide burrs, mounted points, abrasive wheels and flap wheels.
  • Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch Working Air Consumption: 25 CFM (11.8 L/s) Recommended working air pressure: 90 p.s.i.

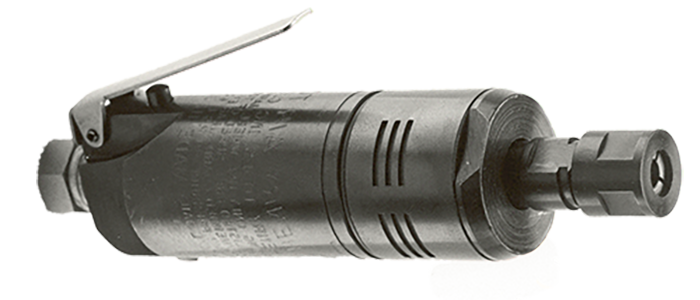

Model 4121AGLS Pneumatic die grinder with Erickson type collet.

Model 4121GLS steel cased grinder shown with an Erickson type collet. (1/4" quick change collet insert is standard ). For use with Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inchSee chart for additional collet insert sizes available. Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)







4121AG Die Grinder Specifications Chart
Model Case Matl. Exh Location Weight Speed Overall Length Spindle Type Case Dia. Inlet Size Power
4121AG Alum. Side 1.5 Lb(0.7 Kg)

15000 to

22000R.P.M.

6.4 inch

162 mm

Erickson Style Collet

1.6 inches

41 mm

3/8"NPT 0.9 H.P.675 W
4121AGS Steel Side 1.5 Lb.(0.7 Kg) Erickson Style Collet 3/8"NPT 0.9 H.P.675 W



4126G Series Side Exhaust Die Grinder

Industrial Benefits:
  • Powerful (0.9 HP) Motor
  • Adjustable direction side exhaust deflector.
  • Guarded for use with type 1 grinding wheel applications.
  • One-Piece motor case for a comfortable grip.
  • Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)
  • Hardened steel motor parts.
  • Unitized motor provides easy maintenance.
  • An optional collet chuck can be purchased for adapting this grinder for use with carbide burrs and other mounted points.
    Available in either an aluminum or steel housing.
  • Rated for use with grinding wheel sizes 4" (100mm).
  • The Model 4126G series tool can easily be transformed into a collet type grinder for use with carbide burrs, mounted points and wire wheels.
  • Capacity:
  • Burrs/Mounted Stones of shank size 1/4 inch
  • Working Air Consumption: 25 CFM (11.8 L/s)
  • Tool can be used as a wheel grinder for type 1 or 27 grinding wheels. (An appropriate guard like  the 4504 must be purchased to accomplish this)
  • Optional Collets can be purchased: Part No. #HT-1010 collet for use with (1/4" mounted points and carbide burrs can be mounted.)
    Part No. #HT-1010-3/8" collet (for 3/8" mounting of carbide burrs, etc.)



Model 4126GL Pneumatic die grinder built for use with grinding wheels or carbide burrs.

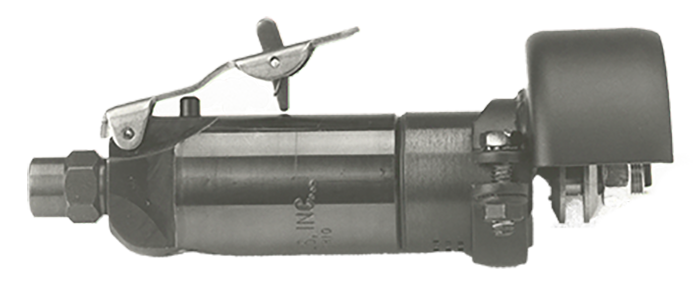

Model 4126GLSK Die Grinder with "Side" exhaust shown with safety lock lever and steel case. Rated for use with Type 27 grinding wheels. Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)







4126G Die Grinder Series Specifications Chart
Model Case Matl. EXH Location Weight Speed Overall Length Spindle Type Case Dia. InletSize Hose Size Power
4126G Alum Side 1.5 Lb.0.7 Kg

18000RPM to

22000RPM

5.80 Inch(147.3 mm) 3/8"-24 Thrd.

1.62 Inch

(41.1 mm)

3/8"

3/8"

(10 mm)

.9 H.P

675 W

4126GLS Steel Side 2.0 lb0.9 Kg



4110-GL Front Exhaust Die Grinder



Industrial Benefits:
  • Features a FRONT exhaust which blows metal chips away from the workpiece.
  • Powerful (0.9 HP) Motor
  • One-Piece motor case for a comfortable grip.
  • Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)
  • Made in America.
  • Hardened steel motor parts.
  • Unitized motor provides easy maintenance.
  • Built-In 1/4" collet chuck can models accommodate various mounted accessories.
  • Available in either an aluminum or steel housing.
    Capacity:
  • Burrs/Mounted Stones of shank size 1/4 inch
  • Working Air Consumption: 25 CFM (11.8 L/s)
    Recommended working air pressure: 90 p.s.i.
  • *Tool is not designed for type 1 or 27 grinding wheels.
    Please view the other Henrytool model grinders that can accommodate type1 or 27 grinding wheel applications.

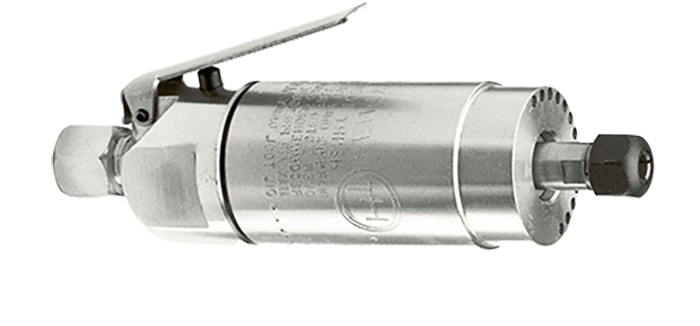

Model 4110GL aluminum front exhaust die grinder.

Model 4110GL Aluminum case grinder featuring a (Front Exhaust) shown with built-in 1/4" collet chuck. Features a front exhaust which. blows metal chips away from the workpiece.



Model 4110GLS Steel front exhaust die grinder.

Model 4110GLS Steel case grinder (Front Exhaust) shown with built-in 1/4" collet chuck. Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)

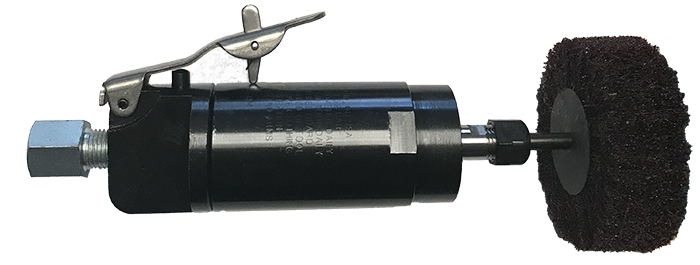

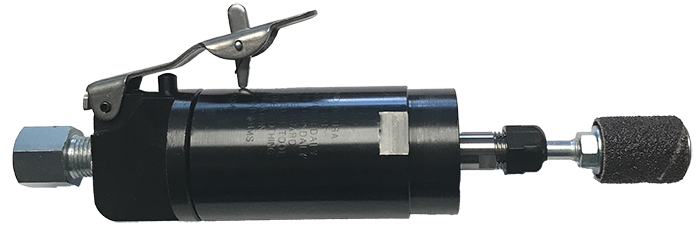

Model 4110GLS Front Exhaust die grinder with buffing wheel.

Model 4110GLS Steel case grinder (Front Exhaust) shown with built-in 1/4" collet chuck. Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)(pictured with buffing wheel not included).







4110G Die Grinder Series Specifications Chart
Model Throt.Lever Case Mat. Exhaust Loc. Weight Speed
4110GL Standard Lever Alum Front 1.5 lb0.7 Kg 15000 to 22000 R.P.M
4110GLK Safety Lockout Alum Front 1.5 lb0.7 Kg 15000 to 22000 R.P.M
4110GLS Standard Lever Steel Front 2.0 lb0.9 Kg 15000 to 22000 R.P.M
4110GLSK Safety Lockout Steel Front 2.0 lb0.9 Kg 15000 to 22000 R.P.M

Additional specifications are below.



4110G Die Grinder Series ADDITIONAL Specifications
Model Overall Length Spindle Type CaseDia. InletSize Power
4110GL 6.9 inch175 mm 1/4" (built-in collet) 1.6 inches41 mm 1/4" 0.9 H.P.675 W
4110GLK 6.9 inch175 mm 1/4" (built-in collet) 1.6 inches41 mm 1/4" 0.9 H.P.675 W
4110GLS 6.9 inch175 mm 1/4" (built-in collet) 1.6 inches41 mm 1/4" 0.9 H.P.675 W
4110GLSK 6.9 inch175 mm 1/4" (built-in collet) 1.6 inches41 mm 1/4" 0.9 H.P.675 W



4111-GL Front Exhaust Die Grinder



Industrial Benefits:
  • Features a front exhaust that blows metal chips away from the workpiece.
  • Powerful (0.9 HP) Motor
  • Guarded for use with type 1 grinding wheel applications.
  • One-Piece motor case for a comfortable grip.
  • Tool runs between 15000RPM -18000RPM. (Specify speed when ordering.)
  • Hardened steel motor parts.
  • Unitized motor provides easy maintenance.
  • An optional collet chuck can be purchased for adapting this grinder for use with carbide burrs and other mounted points.
  • Available in either an aluminum or steel housing.
  • Rated for use with grinding wheel sizes 3" (75mm) , or 4" (100mm).
    Capacity:
  • Guarded for use with type 1 grinding wheel applications.
  • An optional collet chuck (HT-1010) can be purchased for adapting this grinder for use with carbide burrs and other mounted points.
  • Rated for use with grinding wheel sizes 3" (75mm) , or 4" (100mm).
    Working Air Consumption: 25 CFM (11.8 L/s)
    Recommended working air pressure: 90 p.s.i.

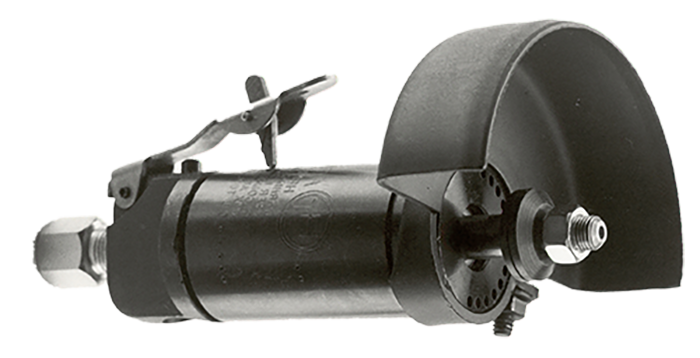

MOdel 4111GLSK front exhaust steel die grinder with 4" guard.

Model 4111GLSK Steel case grinder with Front Exhaust and 4" guard. (with safety lock lever throttle) Features a front exhaust which. blows metal chips away from the workpiece. Available in either an aluminum or steel housing. Rated for use with grinding wheel sizes 3" (75mm) , or 4" (100mm).  An optional collet chuck can be purchased for adapting this grinder for use with carbide burrs and other mounted points.







4111G Die Grinder Series Specifications Chart
Model Throttle Lever Type Case Material Exhaust Location Weight Speed
4111GL StandardLever Alum Front 1.5 lb0.7 Kg 15000to 22000 R.P.M(18000RPM Standard).
4111GLS StandardLever Steel Front 2.0 lb0.9 Kg 15000to 22000R.P.M.(18000RPM Standard).
4111GLK Safety Lockout Lever Alum Front 1.5 lb0.7 Kg 15000to 22000R.P.M.(18000RPM Standard).
4111GLSK Safety Lockout Lever Steel Front 2.0 lb0.9 Kg 15000to 22000R.P.M.(18000RPM Standard).



4111G Die Grinder Series ADDITIONAL Specifications
Model Overall Length Spindle Type CaseDia. InletSize RatedPower
4111GL 6.9 inch175 mm 3/8"-24 Threaded 1.6 inches41 mm 1/4" 0.9 H.P.675 W
4111GLS 6.9 inch175 mm 3/8"-24 Threaded 1.6 inches41 mm 1/4" 0.9 H.P.675 W
4111GLK 6.9 inch175 mm 3/8"-24 Threaded 1.6 inches41 mm 1/4" 0.9 H.P.675 W
4111GLSK 6.9 inch175 mm 3/8"-24 Threaded 1.6 inches41 mm 1/4" 0.9 H.P.675 W

4117GL Series Front Exhaust Erickson Style Collet Grinders



Industrial Benefits:
  • Three piece Erickson collet can accommodate insert sizes ranging from 1/8", 1/4", 5/16", or 3/8".
  • Powerful (0.9 HP) Motor
  • Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)
  • Ships standard with a 1/4" collet insert. (Your choice of collet insert size when ordering).
  • Features a front exhaust which. blows metal chips away from the work-piece.
  • One-Piece motor case for a comfortable grip. Hardened steel motor parts. Unitized motor provides easy maintenance.
  • An optional collet chuck can be purchased for adapting this grinder for use with carbide burrs and other mounted points.
  • Available in either an aluminum or steel housing.

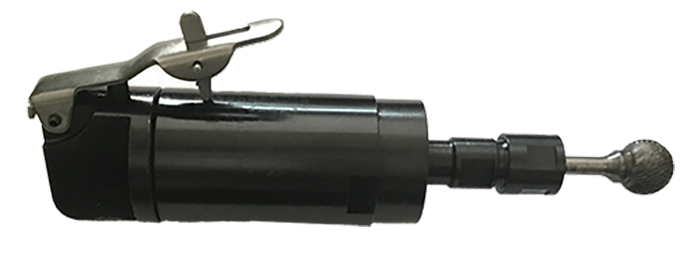

Model 4117GLSK Die grinder with front exhaust and Erickson type collet.

Model 4117GLSK shown with Front exhaust STEEL case  and Erickson collet for quick change of collet insert sizes.  Pictured with safety lockout lever throttle. (Available in an Aluminum or Steel case). Foruse with Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch. Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)

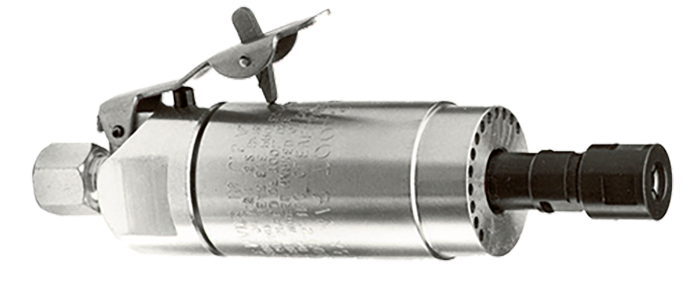

Model 41117GL Front Exhaust die grinder with aluminum body.  Featuring an Erickson type collet.

Model 4117GLK shown with Front exhaust ALUMINUM case  and an Erickson collet for quick change of collet insert sizes.  Pictured with safety lockout lever throttle. (Available in an Aluminum or Steel case)





Model Case Material Exhaust Direction Weight Speed Overall Length Spindle Type CaseDiameter InletSize RatedPower
4117GL Alum Front Exhaust 1.5 lb0.7 Kg 15000 to 22000 R.P.M 6.9 inch175 mm 1/4" , 5/8" or 3/8" Erickson Collet 1.6 inches41 mm 1/4" 0.9 H.P.675 W
4117GLS Steel Front Exhaust 2.0 lb0.9 Kg 15000 to 22000 R.P.M 6.9 inch175 mm 1/4" , 5/8" or 3/8" Erickson Collet 1.6 inches41 mm 1/4" 0.9 H.P.675 W
  • Three piece Erickson collet can accommodate insert sizes ranging from 1/8", 1/4", 5/16", or 3/8".



4123G Series "Super Duty" side exhaust Die Grinder



Industrial Benefits:
  • Combined rotor and spindle design provides a smooth yet ultra rugged and stable grinding    platform.
  • Powerful (0.9 HP) Motor
  • An Erickson Style Collet utilizing quick user switching of collet insert sizes ranging from 1/8", 1/4", 5/16", 3/8".
  • Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)
  • The tool comes standard with a 1/4" collet insert. (other sizes available)
  • Adjustable SIDE exhaust deflector.
  • Unitized motor provides easy maintenance.
  • Erickson style collet can accommodate various mounted accessories.
  • Available in either an aluminum or steel housing.

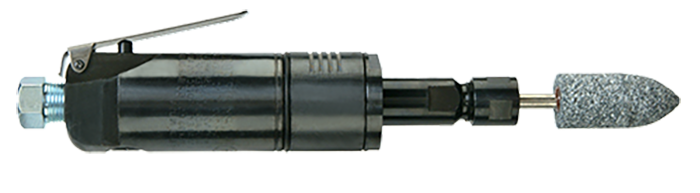

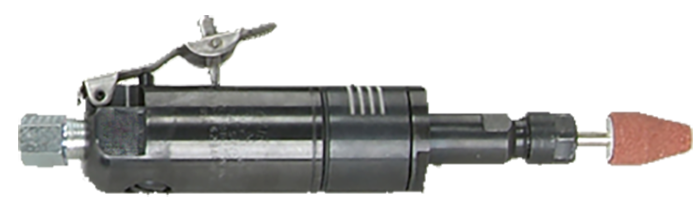

Super duty modle 4123GLSK Die grinder with a super duty erickson style collet spindle.

4123GLSK die grinder features a "Super-heavy duty" Erickson style collet spindle. The Combined rotor and spindle of this tool provides an extremely stable platform for heavier duty grinding. This model features a standard SIDE exhaust and a Safety lockout lever throttle. For use with Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch or 3/8 inch. Features a thick spindle with heavier duty bearings.



Super duty modle 4123GLSK Die grinder with a super duty erickson style collet spindle. Shown with rock wheel.

4123GLS "Super-heavy duty" Erickson style collet spindle. The Combined rotor and spindle of this tool provides a super strong platform for heavier duty industrial grinding applications. This model features a standard SIDE exhaust and standard lever thottle. The Erickson style collet allows fast changing of collet insert sizes. This tool is for use with Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch or 3/8 inch. (Pictured with standard lever throttle).





4123G Die Grinder Specifications Chart
Model Case Material Exhaust Location Case Dia. Weight Overall Length Speed Rated Power Air Consumption
4123GL Alum Side 1.6"(41mm) 1.6 lb./0.7 Kg 6.6 Inch167 mm 15000-22000RPM 0.9 H.P. 675 W 25 cfm(11.8 L/s)
4123GLS Steel Side 1.6"(41mm) 2.3 lb./ 1.0 Kg 6.6 Inch167 mm 15000-22000RPM 0.9 H.P. 675 W 25 cfm(11.8 L/s)

collet insert sizes ranging from 1/8", 1/4", 5/16", 3/8". *Specify when ordering. Ships standard with a 1/4" collet insert.



4123G+6" Extended Length Spindle (plus 6 inches)



Industrial Benefits:
  • Combined rotor and spindle design provides a smooth yet ultra rugged and stable grinding platform.
  • Powerful (0.9 HP) Motor
  • Featuring an Erickson Style Collet providing interchangeable collet insert sizes ranging from 1/8", 1/4", 5/16" and 3/8".
  • The tool comes standard with a 1/4" collet insert. (other sizes available)
  • Tool runs between 18000RPM -22000RPM. (Specify speed when ordering.)
  • Hardened steel motor parts.
  • Adjustable SIDE exhaust deflector.
  • Unitized motor provides easy maintenance.
  • Erickson style collet can accommodate various mounted accessories.
  • Available in either an aluminum or steel housing.



Model 4123GLKS+6 Extended spindle die grinder.

Extended Spindle Model 4123GLSK+6"   "Super-heavy duty" Erickson type spinde die grinder.  Standard side exhaust grinder with (plus 6" length spindle) shown with standard lever throttle. Tool is rated for Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch. Powerful (0.9 HP) Motor.

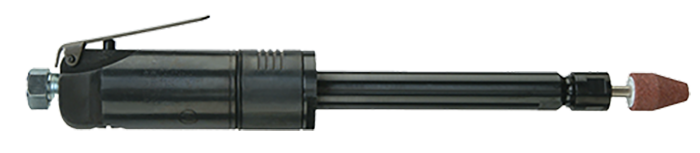

Model 4123GLKS+6 Extended spindle die grinder with stone.

Extended Spindle Model 4123GLS+6""Super-heavy duty" Erickson type spinde die grinder.  This die grinder has a SIDE exhaust and a standard lever throttle. Pictured above with cone wheel attached. Tool is rated for Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch.



4123G Extended Spindle (SIDE Exhaust) Die Grinder Specifications
Model Case Material Exhaust Location CaseDiameter Weight Overall Length Speed Rated Power Working Air Consumption
4123GLS Steel Side 1.6"(41mm) 2.3 lb./ 1.0 Kg 6.6 Inch167 mm 15000-22000RPM 0.9 H.P. 675 W 25 cfm(11.8 L/s)
4123GLS+6 Steel Side 1.6"(41mm) 2.5 lb./ 1.1 Kg 11.7 Inch298 mm 15000-22000RPM 0.9 H.P. 675 W 25 cfm(11.8 L/s)
  • collet insert sizes ranging from 1/8", 1/4", 5/16", 3/8". *Specify when ordering. Ships standard with a 1/4" collet insert.



4124GL Front Exhaust "Super Duty" Die Grinder



Industrial Benefits:
  • A "FRONT" exhaust blows metal chips away while grinding.
  • Super heavy-duty Erickson style collet assembly built for extreme grinding applications.
  • Combined rotor and spindle design provides a smooth yet ultra rugged tool platform.
  • Powerful (0.9 HP) Motor
  • Featuring an Erickson Style Collet utilizing quick user switching of collet insert sizes ranging from 1/8", 1/4", 5/16", 3/8".
  • The tool ships standard with a 1/4" collet insert. Specify the size you need when ordering. Hardened steel motor parts. Unitized motor provides easy maintenance. Erickson style collet can accommodate various mounted accessories.
  • Available in either an aluminum or steel housing.

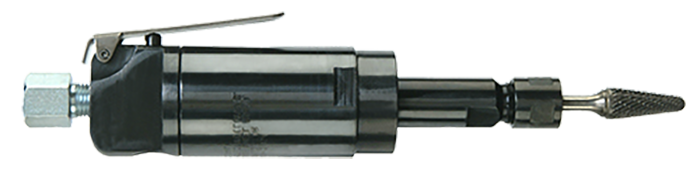

Model 4124GLS Heavy duty die grinder with Front Exhaust.

Model 4124GLS "Super-heavy" duty Erickson style collet die grinder (standard length spindle) featuring a "FRONT" exhaust steel case. This tool is rated for Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch

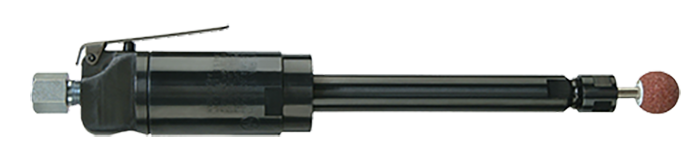

Model 4124GLS+6" Extended spindle die grinder with front exhaust.

 Model 4124GLS+6" "Super-heavy" Extended Shaft Erickson style collet die grinder with a FRONT Exhaust. Featuring a Super strong extended 6"spindle. This tool is rated for Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch.







4124G (FRONT exhaust) Die Grinder Series Specifications Chart
Model Case Material Exhaust Location CaseDiameter Weight Overall Length Speed Rated Power
4124GL Alum Front 1.6"(41mm) 1.6 lb.0.7 Kg 7 3/16"183mm 15000-22000RPM 0.9 H.P. 675 W
4124GLS Steel Front 1.6"(41mm) 2.3 lb1.0 Kg 7 3/16"183mm 15000-22000RPM 0.9 H.P.675 W
4124-GLS +6" Steel Front 1.6"(41mm) 2.5 lb./ 1.1 Kg 11.7 Inch298 mm 15000-22000RPM 0.9 H.P.675 W
  • Burrs/Mounted Stones of shank size: 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch SPECIFY collet size when ordering.
  • *Tool is not designed for type 1 or 27 grinding wheels.









49G Series Rear Exhaust Die Grinder



Industrial Benefits:
  • The 49G Series grinder features an aluminum housing and a REAR exhaust.
  • The rear exhaust directs oil and dirt away from the operator.
  • Powerful (0.9 HP) Motor
  • Also features a three piece Erickson style collet with your choice of a 1/8", 1/4", 5/16" or 3/8" collet insert.
  • Hardened steel motor parts.
  • Unitized motor provides easy maintenance.
  • Capacity:
  • Working Air Consumption: 25 CFM (11.8 L/s)
    Recommended working air pressure: 90 p.s.i.
  • Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch
  • *Tool is not designed for type 1 or 27 grinding wheels.

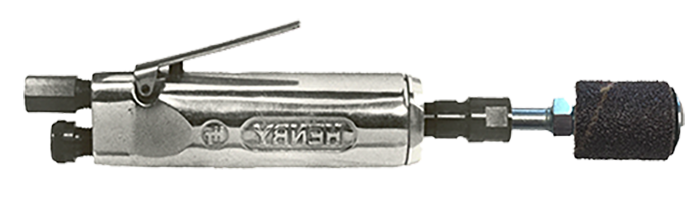

Model 49GL Rear Exhaust Die grinder.

49GL "Rear" exhaust die grinder with Erickson style collet. (interchangeable collet insert sizes) (pictured with abrasive... sold separately)



49G Rear Exhaust Die Grinder Specifications Chart
Model Case Material Exhaust Location CaseDiameter Weight Overall Length Speed Rated Power
49GL Alum REAR 1.67" 1.6 lb.0.7 Kg 7 1/4"184mm 18000-22000RPM 0.9 H.P. 675 W
  • Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch (specify which size insert you require when ordering)/
  • *Tool is not designed for type 1 or 27 grinding wheels.





4721GL Governed Speed Die Grinder Series



Industrial Benefits:
  • A governor controlled grinder that maintains peak power at a lower rpm. (8000-12000RPM)
  • Powerful (0.9 HP) Motor
  • Featuring a Erickson Style Collet utilizing quick user switching of collet insert sizes ranging from 1/8", 1/4", 5/16", 3/8".(Specify when ordering)
  • The tool ships standard with a 1/4" collet assembly.
  • Hardened steel motor parts. Adjustable SIDE exhaust deflector.
  • Unitized motor provides easy maintenance.
  • Available in either an aluminum or steel housing.
  • Applications:
    The Henrytools 4721G Series die grinder provides a heavy-duty Erickson style collet assembly for slow speed grinding, contouring, deburring, and cleaning needs. The tool can be equipped with carbide burrs, mounted points, abrasive wheels and flap wheels. The lower speed of this grinder can facilitate the ability to polish delicate materials.
  • Capacity:
  • Working Air Consumption: 25 CFM (11.8 L/s)
    Recommended working air pressure: 90 p.s.i.
  • Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch
  • *Tool is not designed for type 1 or 27 grinding wheels.

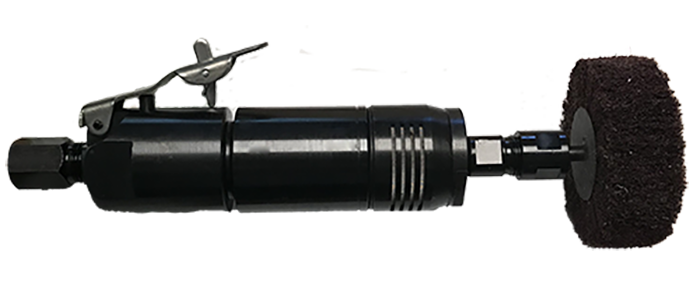

Model 4721GLSK Governed speed side exhaust die grinder.Model 4721-GLSK  governed speed SIDE exhaust die grinder (8000-12000RPM).   Pictured with a STEEL case and a safety lockout lever throttle.  Features an Erickson style collet for quick collet insert size changes. Slower speeds without losing power. Features an Erickson style collet for quick collet insert size changes. This tool is rated for Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch and 3/8 inch.





4721G Governed Die Grinder Series Specifications Chart
Model Case Material Governed Exhaust Location CaseDiameter Weight Overall Length Speed Rated Power
4721GL Alum   Side 1.8inches(46 mm) 1.6 lb(0.7 Kg) 7.7 inch(196 mm) 9000-15000R.P.M. 0.9 H.P.675 W
4721GLS Steel   Side 1.8inches(46 mm) 2.1 lb(0.9 Kg) 7.7 inch(196 mm) 9000-15000R.P.M. 0.9 H.P.675 W

Specify which collet insert you'd prefer when ordering. Your choice of 1/8", 1/4", 5/16", 3/8".(Specify when ordering)



47GL Governed Speed (Side Exhaust) Die Grinder Series



Industrial Benefits:

  • Powerful (0.9 HP) Motor
  • An ultra-versatile governor controlled grinder.
  • A governor controlled grinder that maintains peak power at a lower rpm. (8000-12000RPM)
  • Featuring a 3/8-24 spindle that can accommodate collets and grinding wheels.
  • The tool comes standard with a 1/4" collet assembly.
  • An optional guard can convert this grinder to use type 1 or 27 grinding wheels. Hardened steel motor parts.
  • Adjustable SIDE exhaust deflector.
  • Unitized motor provides easy maintenance.
  • Available in either an aluminum or steel housing.
  • Applications:
  • Guarded for use with type 1 grinding wheel applications. An optional collet chuck can be purchased for adapting this grinder for use with carbide burrs and other mounted points. This straight shaft, .9 H.P pneumatic die grinder is designed to efficiently perform a variety of polishing, buffing, shaping, and deburring functions when equipped with a collet.
  • Tool ships standard with HT-1010 collet for carbide burrs.
  • Capacity:
  • 4 Inch (100mm) Type 1 wheels Burrs/Mounted Stones of shank size 1/4 Inch, 3/8 Inch.
    Any Type 16, 17, 17R or 18R Cone Wheel with 3/8-24 mounting
  • Working Air Consumption: 25 CFM (11.8 L/s)
    Recommended working air pressure: 90 p.s.i.

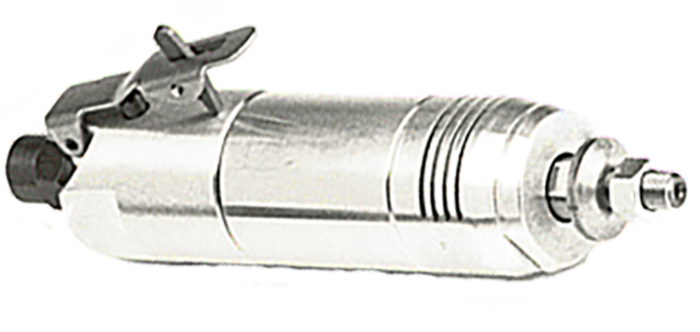

Model 47GL Governed Slow speed Die Grinder.

Model 47GL governed slower speed grinder (8000RPM-12000RPM).  (specify speed when ordering) .  (Pictured without wheel guard for clarity). Shown with 3/8-24 threaded spindle and wheel washers. Uses standard Type 27 cutoff wheels.

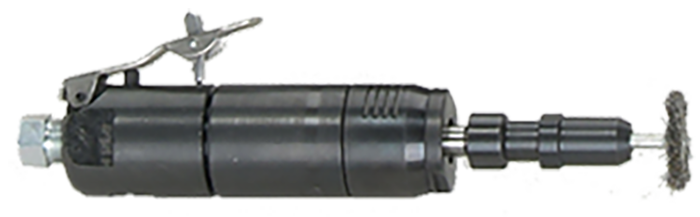

Model 47GLSK Die Grinder with HT-1010 Collet for use with accessories.

Model 47GLSK governed slower speed grinder pictured with standard HT-1010 collet installed.  Great for lower speed buffing and deburring. (Shown with wire wheel)





47G Governed Speed (Side Exhaust) Die Grinder Specifications Chart
Model Lever Type Case Mat. Exhaust Location CaseDia.
47GL Standard Lever Alum Side 1.8inches(46 mm)
47GLS Standard Lever Steel Side 1.8inches(46 mm)
47GLK Safety Lockout Lever Alum Side 1.8inches(46 mm)
47GLSK Safety Lockout Lever Steel Side 1.8inches(46 mm)



47G Die Grinder Specifications Chart(continued)
Model Weight Overall Length Speed Rated Power SpindleType
47GL 1.6 lb(0.7 Kg) 7.7 inch(196 mm) 9000-15000R.P.M. 0.9 H.P.675 W 3/8-24 x 1.1(3/8-24 x 28 mm)
47GLS 2.1 lb(0.9 Kg) 7.7 inch(196 mm) 9000-15000R.P.M. 0.9 H.P.675 W 3/8-24 x_ 1.1(3/8-24 x 28 mm)
47GLK 1.6 lb(0.7 Kg) 7.7 inch(196 mm) 9000-15000R.P.M. 0.9 H.P.675 W 3/8-24 x_ 1.1(3/8-24 x 28 mm)
47GLSK 2.1 lb(0.9 Kg) 7.7 inch(196 mm) 9000-15000R.P.M. 0.9 H.P.675 W 3/8-24 x_ 1.1(3/8-24 x 28 mm)
  • An optional guard can convert this grinder to use type 1 or 27 grinding wheels.



4710G Front Exhaust Governed Speed Die Grinder



Industrial Benefits:
  • A governor controlled (slower speed) grinder that maintains peak power at a lower rpm.
  • (8000RPM-12000RPM)
  • "FRONT" exhaust to direct grinding debris away from operator and the workpiece.
  • Powerful (0.9 HP) Motor
  • Featuring a Erickson Style Collet utilizing quick user switching of collet insert sizes ranging from 1/8", 1/4", 5/16", 3/8". (Specify when ordering) .
  • The tool ships standard with a 1/4" collet insert.
  • Adjustable side exhaust deflector.
  • Available in either an aluminum or steel housing.
  • Made in America.
  • Capacity:
  • Working Air Consumption: 25 CFM (11.8 L/s)
    Recommended working air pressure: 90 p.s.i.
  • Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch
  • *Tool is not designed for type 1 or 27 grinding wheels.

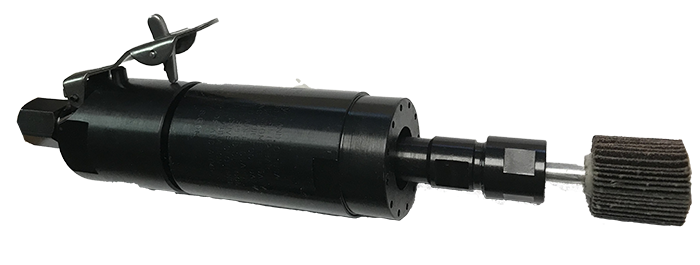

Model 4710GLSK Governed speed die grinder with a Front Exhaust.

Model 4710GLS Governed speed die grinder with Steel "FRONT" exhaust. . Slower governed speed grinder (8000RPM-12000RPM)with an Erickson Style collet. Collet insert sizes ranging from 1/8", 1/4", 5/16", 3/8".  (Specify when ordering) .







Model 4710 Die Grinder Specifications
Model Case Material Governed Exhaust Location CaseDiameter Weight Overall Length Speed Rated Power
4710GL Alum Speed Front 1.6"(41mm) 1.6 lb(0.7 Kg) 7.7 inch(196 mm) 9000-15000R.P.M. 0.9 H.P.675 W
4710GLS Steel Speed Front 1.6"(41mm) 2.1 lb(0.9 Kg) 7.7 inch(196 mm) 9000-15000R.P.M. 0.9 H.P.675 W
  • Featuring a Erickson Style Collet utilizing quick user switching of collet insert sizes ranging from 1/8", 1/4", 5/16", 3/8". (Specify when ordering) .

405GE / 400GE Side Exhaust Series Die Grinder (1.2 H.P.)



Heavy Duty Industrial Benefits:
  • SIDE exhaust.
  • 1.2 hp (900 W) ; 18,000-20,000 rpm free speed.
  • Highest durability in demanding grinding applications with up to 2000 hrs maintenance intervals.
  • Choice of either a rugged steel or lightweight aluminum housing.
  • Safety lockout lever or standard lever with a (SIDE) exhaust.
  • 1/4" or 3/8"collet insert for this Erickson type collet grinder.
  • This is a high productivity industrial die grinder.
  • Made in America.

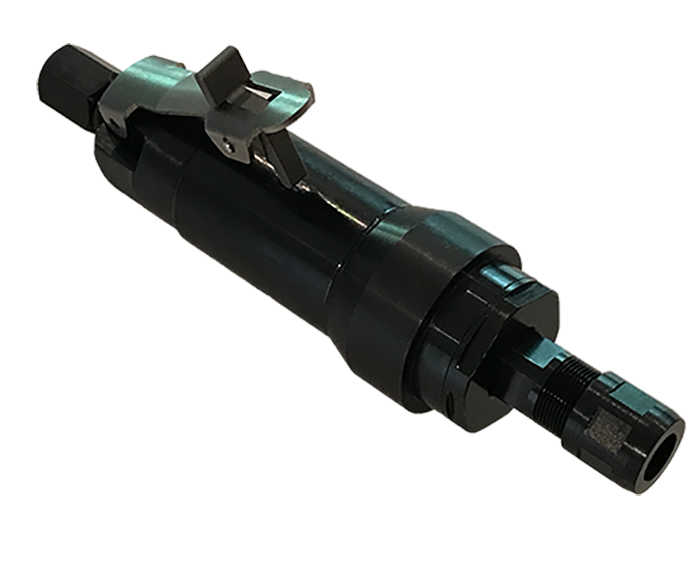

Model 405GE Side exhaust die grinder.  (1.2 Horsepower)

Model 405GE / 400GE  Series (SIDE) exhaust die grinder with a powerful 1.2 Horsepower motor.  Shown with a steel case and lockout safety lever throttle. This tool is rated for Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch

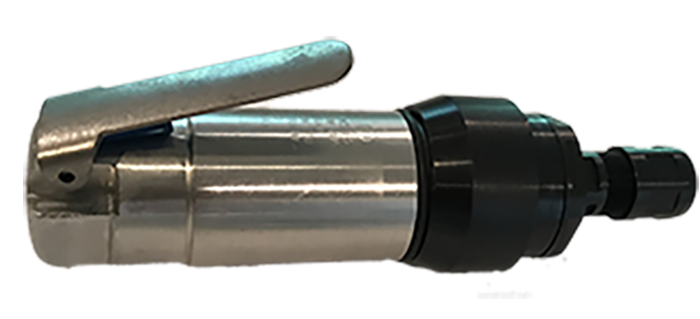

405GE Aluminum  Die grinder with Side Exhaust. (1.2 Horsepower)

Model 405GE / 400GE (Side) exhaust die grinder with a powerful 1.2 Horsepower motor. Shown with an aluminum case and standard  lever throttle.





405GE / 400GE Die Grinder (Side Exhaust ) (1.2 H.P.) Specifications Chart
 Model No.  Exhaust Direction  Throttle Type Speed   Power Output Case Material   Length
 405GE  Side  (L)Lever (K) Safety Lever  18000 R.P.M 20000 R.P.M  1.2 H.P. 900 W  Aluminum  6.8 Inch (172 mm)
 405GES  Side  (L)Lever (K) Safety Lever  18000 R.P.M 20000 R.P.M  1.2 H.P. 900 W  STEEL  6.8 Inch (172 mm)
 400GE  Side  (L)Lever (K) Safety Lever  18000 R.P.M 20000 R.P.M   1.2 H.P. 900 W  Aluminum  6.8 Inch (172 mm)
 400GES  Side   (L)Lever (K) Safety Lever   18000 R.P.M 20000 R.P.M   1.2 H.P. 900 W  Aluminum 6.8 Inch (172 mm)



405GE / 400GE Die Grinder (Side Exhaust ) (1.2 H.P.) Specifications Chart
 Model No. Weight Aluminum Model

 Weight Steel Model  Diameter  Air Consumption  Collet Sizes
 405GE  1.8 lb. (0.8 Kg)  2.6 lb. (1.2 Kg)  1.6 inches 41.1 mm  35 CFM (16.5 L/S) Max.  1/4 Inch • 3/8 Inch (6 mm) (10 mm)
 405GES  1.8 lb. (0.8 Kg)  2.6 lb. (1.2 Kg)  1.6 inches 41.1 mm  35 CFM (16.5 L/S) Max.  1/4 Inch • 3/8 Inch (6 mm) (10 mm)
 400GE   1.8 lb. (0.8 Kg)   2.6 lb. (1.2 Kg)   1.6 inches 41.1 mm   35 CFM (16.5 L/S) Max.  1/4 Inch • 3/8 Inch (6 mm) (10 mm)
 400GES   1.8 lb. (0.8 Kg)   2.6 lb. (1.2 Kg)   1.6 inches 41.1 mm   35 CFM (16.5 L/S) Max.  1/4 Inch • 3/8 Inch (6 mm) (10 mm)

Air Supply : 3/8" NPT Inlet
1/2" (13mm) Hose Size





405GER / 400GER Rear Exhaust Series Grinders (1.2 H.P.)



Heavy Duty Industrial Benefits:
  • REAR exhaust die grinder for Industrial High productivity.
  • High durability in demanding grinding applications with up to 2000 hrs maintenance intervals.
  • Choice of either a rugged steel or lightweight aluminum housing.
  • Safety lockout lever or standard lever with a (REAR) exhaust. 1/4" or 3/8"collet insert for this Erickson type collet grinder.
  • 1.2 hp (900 W) ; 18,000-20,000 rpm free speed.

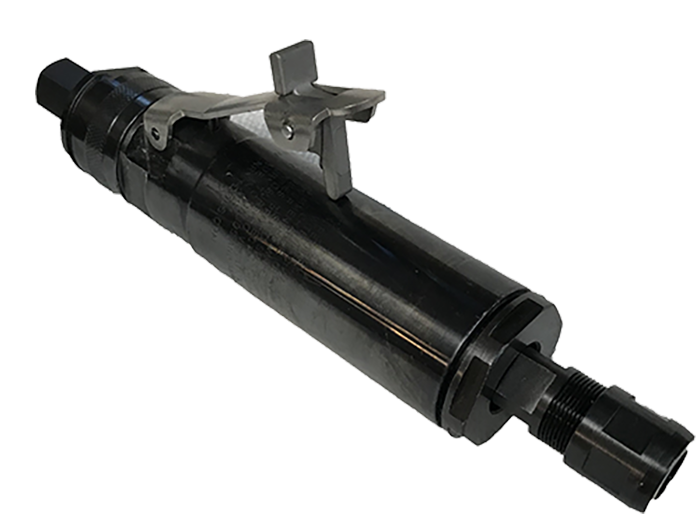

Model 405GER Die grider with rear exhaust. (1.2 Horsepower)

Model 405GER / 400GER (REAR) exhaust die grinder with a powerful 1.2 Horsepower motor. Shown with a steel case and lockout safety lever throttle. This tool is rated for Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch

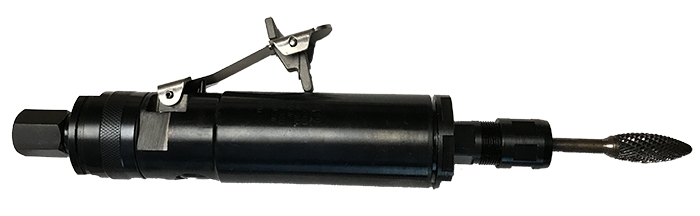

Model 405GER Die grinder with rear exhaust and steel case.  (1.2 Horsepower)

Model 405GER /400GER (REAR)  Exhaust die grinder with a Steel case and safety lock lever throttle.  (shown with ball type carbide burr).





405GER / 400GER Die Grinder (REAR Exhaust ) (1.2 H.P.) Specifications Chart
 Model No.  Exhaust Direction  Throttle Type Speed   Power Output Case Material  Weight Aluminum Model

 Weight Steel Model  Length  Diameter  Air Consumption  Collet Sizes
 405GER  Rear  (L)Lever (K) Safety Lever  18000 R.P.M 20000 R.P.M  1.2 H.P. 900 W  Aluminum  1.8 lb. (0.8 Kg)  2.4 Lbs. (1.1 Kg) Steel  6.8 Inch (172 mm)  1.6 inches 41.1 mm  35 CFM (16.5 L/S) Max. 1/4 Inch • 3/8 Inch (6 mm) (10 mm)
 405GESR  Rear  (L)Lever (K) Safety Lever  18000 R.P.M 20000 R.P.M  1.2 H.P. 900 W  STEEL  1.8 lb. (0.8 Kg)  2.4 Lbs. (1.1 Kg) Steel  6.8 Inch (172 mm)  1.6 inches 41.1 mm  35 CFM (16.5 L/S) Max.  1/4 Inch • 3/8 Inch (6 mm) (10 mm)
 400GER  Rear  (L)Lever (K) Safety Lever  18000 R.P.M 20000 R.P.M   1.2 H.P. 900 W  Aluminum   1.8 lb. (0.8 Kg)  2.4 Lbs. (1.1 Kg) Steel  6.8 Inch (172 mm)   1.6 inches 41.1 mm   35 CFM (16.5 L/S) Max.  1/4 Inch • 3/8 Inch (6 mm) (10 mm)
 400GESR Rear   (L)Lever (K) Safety Lever   18000 R.P.M 20000 R.P.M   1.2 H.P. 900 W  Aluminum   1.8 lb. (0.8 Kg)  2.4 Lbs. (1.1 Kg) Steel 6.8 Inch (172 mm)   1.6 inches 41.1 mm   35 CFM (16.5 L/S) Max.  1/4 Inch • 3/8 Inch (6 mm) (10 mm)





405HGE / 400HGE Side Exhaust Series Die Grinder (1.2 H.P.)



Heavy Duty Industrial Benefits:
  • SIDE exhaust.
  • DOUBLE FRONT ROW BEARINGS for higher durability and stability in demanding grinding applications.
  • Up to 2000 hrs maintenance intervals.
  • Choice of either a rugged steel or lightweight aluminum housing.
  • Safety lockout lever or standard lever with a (SIDE) exhaust.
  • 1/4" or 3/8"collet insert for this Erickson type collet grinder.
  • 1.2 hp (900 W) ; 18,000-20,000 rpm free speed.



Model 405HGE Side exhaust die grinder with double row bearings.  (1.2 Horsepower)

Model 405HGE / 400HGE (Side) exhaust die grinder with DOUBLE FRONT ROW BEARINGS  which provides for an ultra smooth and stable platform for grinding.   An ultra powerful (1.2 Horsepower) motor. Shown with a steel case and lockout safety lever throttle. (Flap wheel not included)



Model 405HGE Side exhaust die grinder with double row bearings. (1.2 Horsepower)

Model 405HGE / 400HGE  (Side) exhaust die grinder with DOUBLE FRONT ROW BEARINGS and a powerful 1.2 Horsepower motor.  Picutured with a steel case and lockout safety lever throttle.   Rated for use with Burrs/Mounted Stones of shank size 1/4" or 3/8"collet insert for this Erickson type collet grinder.







405HGE / 400HGE Die Grinder (Side Exhaust ) (1.2 H.P.) Specifications Chart
 Model No. Special Feature  Exhaust Direction  Throttle Type Speed   Power Output Case Material  Weight Aluminum Model

 Weight Steel Model  Length  Diameter  Air Consumption  Collet Sizes
 405HGE DOUBLE FRONT ROW BEARINGS  Side  (L)Lever (K) Safety Lever  18000 R.P.M 20000 R.P.M  1.2 H.P. 900 W  Aluminum  1.8 lb. (0.8 Kg)  2.6 lb. (1.2 Kg)  7.3 Inch (185 mm)  1.6 inches 41.1 mm  35 CFM (16.5 L/S) Max.  1/4 Inch • 3/8 Inch (6 mm) (10 mm)
 405HGES DOUBLE FRONT ROW BEARINGS  Side  (L)Lever (K) Safety Lever  18000 R.P.M 20000 R.P.M  1.2 H.P. 900 W  STEEL  1.8 lb. (0.8 Kg)  2.6 lb. (1.2 Kg)  7.3 Inch (185 mm)  1.6 inches 41.1 mm  35 CFM (16.5 L/S) Max.  1/4 Inch • 3/8 Inch (6 mm) (10 mm)
 400HGE DOUBLE FRONT ROW BEARINGS  Side  (L)Lever (K) Safety Lever  18000 R.P.M 20000 R.P.M   1.2 H.P. 900 W  Aluminum   1.8 lb. (0.8 Kg)   2.6 lb. (1.2 Kg)  7.3 Inch (185 mm)   1.6 inches 41.1 mm   35 CFM (16.5 L/S) Max.  1/4 Inch • 3/8 Inch (6 mm) (10 mm)
 400HGES DOUBLE FRONT ROW BEARINGS  Side   (L)Lever (K) Safety Lever   18000 R.P.M 20000 R.P.M   1.2 H.P. 900 W  Aluminum   1.8 lb. (0.8 Kg)   2.6 lb. (1.2 Kg) 7.3 Inch (185 mm)   1.6 inches 41.1 mm   35 CFM (16.5 L/S) Max.  1/4 Inch • 3/8 Inch (6 mm) (10 mm)









405HGERS / 400HGERS REAR Exhaust Series Die Grinder (1.2 H.P.)



Heavy Duty Industrial Benefits:
  • REAR exhaust .
  • DOUBLE FRONT ROW BEARINGS for higher durability and ultra stability in demanding grinding applications.
  • 1.2 hp (900 W) ; 18,000-20,000 rpm free speed.
  • Up to 2000 hrs maintenance intervals.
  • Choice of either a rugged steel or lightweight aluminum housing.
  • Safety lockout lever or standard lever with a (REAR) exhaust.
  • 1/4" or 3/8"collet insert for this Erickson type collet



Model 405HGER REar exhaust die grinder with double row Bearings. (1.2 Horsepower)

Model 405HGER  /  400HGER (REAR) exhaust die grinder with DOUBLE FRONT ROW BEARINGS provides an ultra smooth and stable platform for grinding.   This tool incorporates a very powerful 1.2 Horsepower motor. Shown with a steel case and lockout safety lever throttle. Tool is rated for Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch and 3/8 inch



Model 405HGERS Rear exhaust die grinder with double row bearings .   (1.2 Horsepower)

Model 405HGER (REAR) exhaust die grinder with DOUBLE FRONT ROW BEARINGS. (shown with a safety lockout lever throttle and carbide burr installed.) (carbide burr not included)







405HGER / 400HGER Die Grinder (REAR Exhaust ) (1.2 H.P.) Specifications Chart
 Model No. Special Feature  Exhaust Direction  Throttle Type Speed   Power Output Case Material
 405HGE DOUBLE FRONT ROW BEARINGS  REAR  (L)Lever (K) Safety Lever  18000 R.P.M 20000 R.P.M  1.2 H.P. 900 W  Aluminum
 405HGES DOUBLE FRONT ROW BEARINGS  REAR  (L)Lever (K) Safety Lever  18000 R.P.M 20000 R.P.M  1.2 H.P. 900 W  STEEL
 400HGE DOUBLE FRONT ROW BEARINGS  REAR  (L)Lever (K) Safety Lever  18000 R.P.M 20000 R.P.M   1.2 H.P. 900 W  Aluminum
 400HGES DOUBLE FRONT ROW BEARINGS  REAR   (L)Lever (K) Safety Lever   18000 R.P.M 20000 R.P.M   1.2 H.P. 900 W  Aluminum



405HGER / 400HGER Die Grinder (REAR Exhaust ) (1.2 H.P.) Specifications Chart CONTINUED
 Model No. Weight Aluminum Model

 Weight Steel Model  Length  Diameter  Air Consumption  Collet Sizes
 405HGE  1.8 lb. (0.8 Kg)  2.6 lb. (1.2 Kg)  7.3 Inch (185 mm)  1.6 inches 41.1 mm  35 CFM (16.5 L/S) Max.  1/4 Inch • 3/8 Inch (6 mm) (10 mm)
 405HGES  1.8 lb. (0.8 Kg)  2.6 lb. (1.2 Kg)  7.3 Inch (185 mm)  1.6 inches 41.1 mm  35 CFM (16.5 L/S) Max.  1/4 Inch • 3/8 Inch (6 mm) (10 mm)
 400HGE   1.8 lb. (0.8 Kg)   2.6 lb. (1.2 Kg)  7.3 Inch (185 mm)   1.6 inches 41.1 mm   35 CFM (16.5 L/S) Max.  1/4 Inch • 3/8 Inch (6 mm) (10 mm)
 400HGES   1.8 lb. (0.8 Kg)   2.6 lb. (1.2 Kg) 7.3 Inch (185 mm)   1.6 inches 41.1 mm   35 CFM (16.5 L/S) Max.  1/4 Inch • 3/8 Inch (6 mm) (10 mm)

















MENU
